003N0196

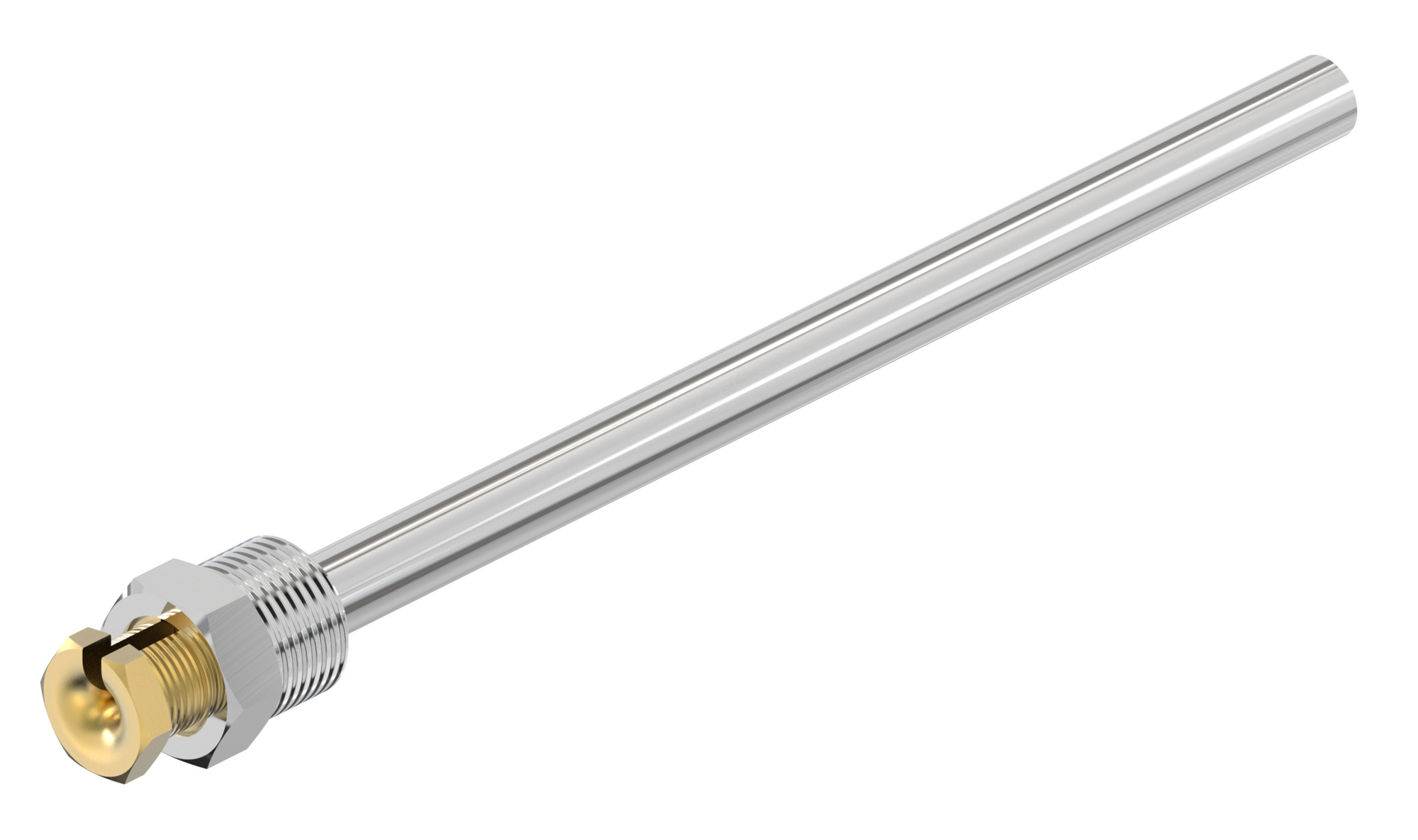

Danfoss 003N0196 - Sensor pocket
- Packing format: Multi pack
- Quantity per packing format: 60
Product details
| China RoHS compliance | Out of scope | |
| Connection Internal/External | External | |
| Connection size [in] | 1/2 | |
| Connection standard | ISO 7-1 | |
| Connection type | R | |
| Contain batteries | No | |
| EU RoHS compliance | Out of scope | |
| Material Spec. | Stainless steel | |
| Packing format | Multi pack | |
| Product group | Water valves accessories | |
| Product Name Description | Sensor pocket | |
| Quantity per packing format | 60 | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Sensor pocket length min. [in] | 7 5/32 in | |
| Sensor pocket length min. [mm] | 182 mm | |
| Sensor size (Ø x L) [in] | 3/8 x 7 3/32 in | |
| Sensor size (Ø x L) [mm] | 9.5 x 150 mm; 9.5 x 180 mm | |
| Type | Accessory | |
| Type designation | Sensor pocket | |
| UK RoHS compliance | Out of scope | |
| Used for product | AVTA; AVTB |
Technical data
| Product type | Water valves accessories | |
| Net weight | 0.093 kg | |
| Gross weight | 0.094 kg | |
| Packed volume | 0.1 L | |
| EAN | 5702423019137 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 003N0196 are available on request. Ask for documents →
