006-1114

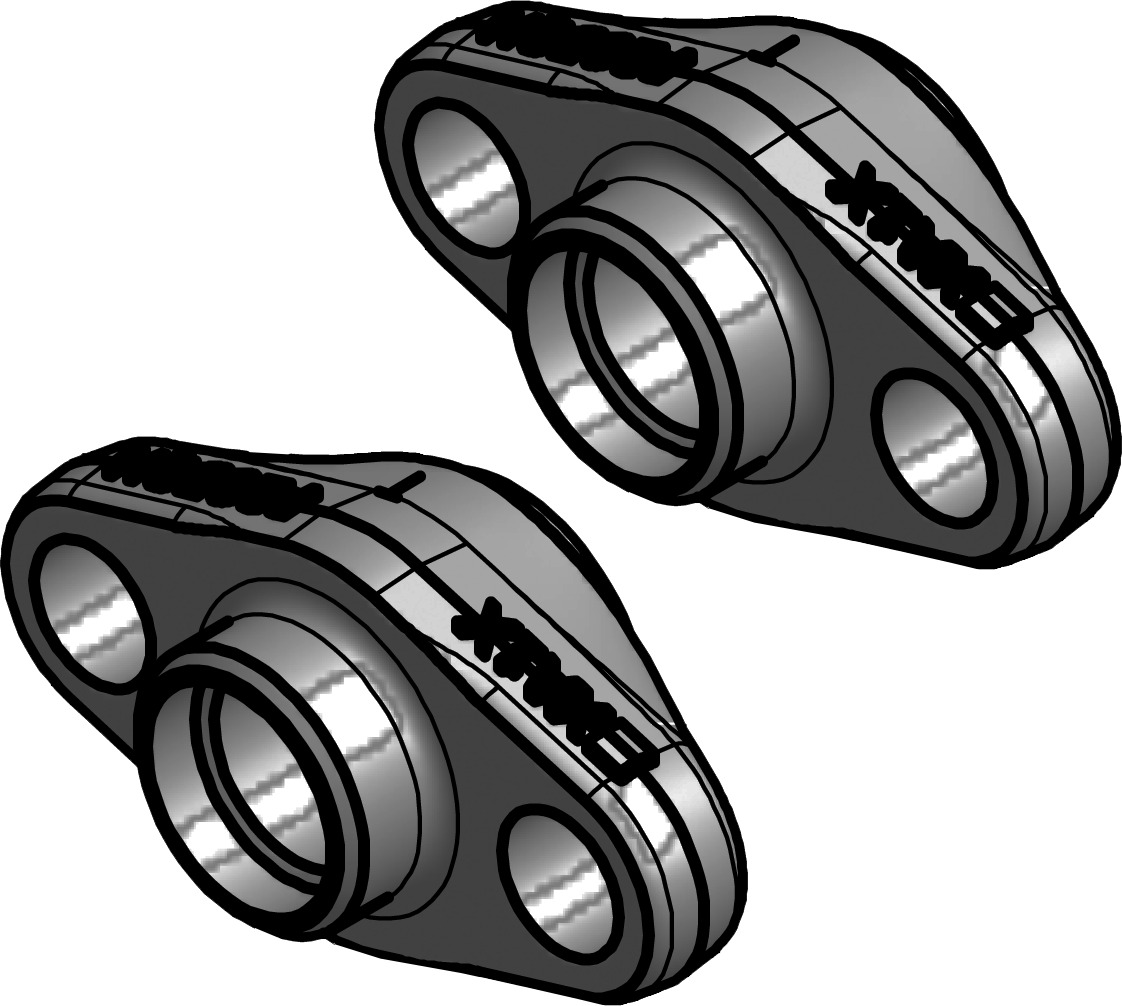

Danfoss 006-1114 - Flange set, Flange, 15 mm, Butt weld
- Connection standard: EN 10220
- Material Spec.: Steel
- Used for product: FA 20
Product details
| Connection size [in] | 1/2 in | |
| Connection size [mm] | 15 mm | |
| Connection standard | EN 10220 | |
| Connection type | Butt weld | |
| Contain batteries | No | |
| EU RoHS compliance | Out of scope | |
| Flange design | Groove; Tongue | |
| Flange form | Oval | |
| Flange version | 2.1 | |
| Material Spec. | Steel | |
| Packing format | Multi pack | |
| Parts included | 2 flanges; 2 Gaskets; 2 staybolts; 4 nuts | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 6 pc | |
| REACH Candidate List substances | No | |
| Staybolt dimension | M12 x 160 mm | |
| Type | Flange | |
| Used for product | FA 20 |
Technical data
| Product type | Flanges | |
| Net weight | 1.259 kg | |
| Gross weight | 1.26 kg | |
| Packed volume | 1.7 L | |
| EAN | 5702422077343 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 006-1114 are available on request. Ask for documents →
