006-1119

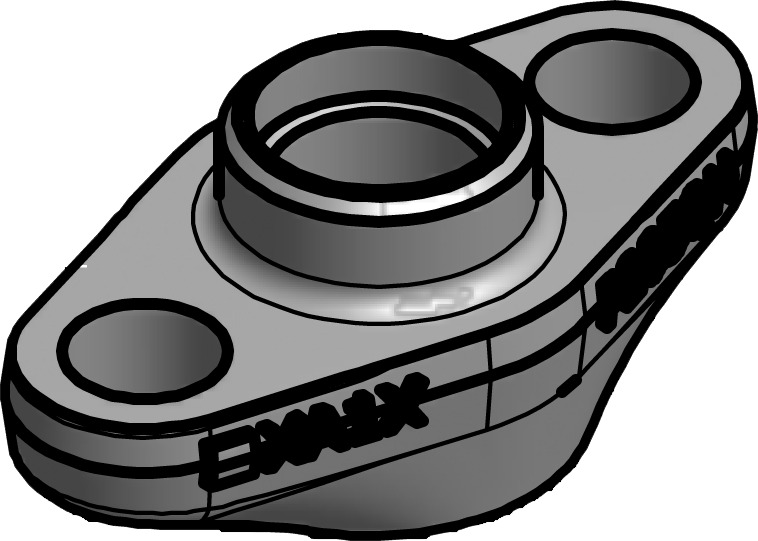

Danfoss 006-1119 - Flange set, Flange, 6 mm, Butt weld
- Connection standard: EN 10220
- Material Spec.: Steel
- Used for product: EVRA 15; CVM; NRVA 15; EVR 15; TEA 20; TEVA 20; TE 12; NRVA 20; CVK; TEAT 20; EVRA 10; EVRA 3
Product details
| Connection size [in] | 1/4 in | |
| Connection size [mm] | 6 mm | |
| Connection standard | EN 10220 | |
| Connection type | Butt weld | |
| Contain batteries | No | |
| EU RoHS compliance | Out of scope | |
| Flange design | Groove | |
| Flange form | Oval | |
| Flange version | 1.0 | |
| Material Spec. | Steel | |
| Packing format | Multi pack | |
| Parts included | 1 flange; 1 gasket | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 16 pc | |
| REACH Candidate List substances | No | |
| Type | Flange | |
| Used for product | EVRA 15; CVM; NRVA 15; EVR 15; TEA 20; TEVA 20; TE 12; NRVA 20; CVK; TEAT 20; EVRA 10; EVRA 3 |
Technical data
| Product type | Flanges | |
| Net weight | 0.26 kg | |
| Gross weight | 0.288 kg | |
| Packed volume | 0.3 L | |
| EAN | 5702422100072 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 006-1119 are available on request. Ask for documents →
