006-1180

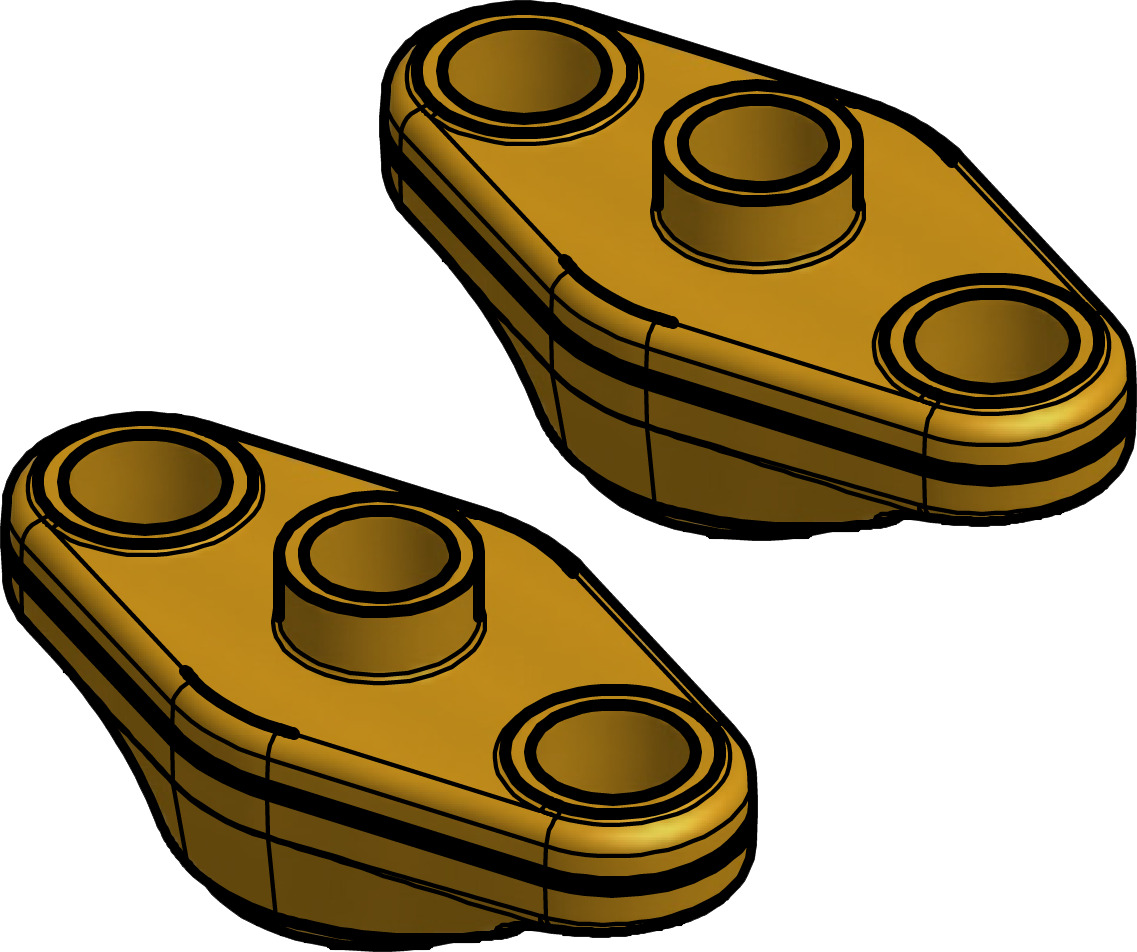

Danfoss 006-1180 - Flange set, Flange, 22 mm, Soldering
- Connection standard: EN 1254
- Material Spec.: Brass
- Used for product: FA 20
Product details
| Connection size [mm] | 22 mm | |
| Connection standard | EN 1254 | |
| Connection type | Soldering | |
| Contain batteries | No | |
| Flange design | Groove; Tongue | |
| Flange form | Oval | |
| Flange version | 2.3 | |
| Material Spec. | Brass | |
| Packing format | Multi pack | |
| Parts included | 2 flanges; 2 Gaskets; 2 staybolts; 4 nuts | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 12 pc | |
| Staybolt dimension | M12 x 160 mm | |
| Type | Flange | |
| Used for product | FA 20 |
Technical data
| Product type | Flanges | |
| Net weight | 1.251 kg | |
| Gross weight | 1.326 kg | |
| Packed volume | 0.9 L | |
| EAN | 5702422099796 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 006-1180 are available on request. Ask for documents →
