017-420566

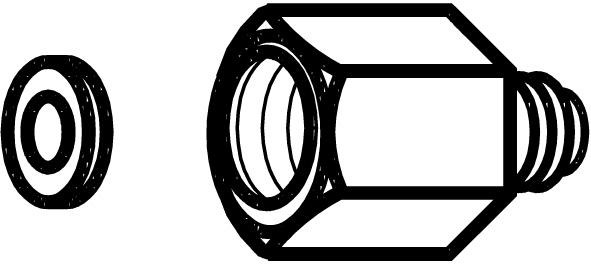

Danfoss 017-420566 - Switches accessories, Reducing Nipple
- Packing format: Multi pack
- Quantity per packing format: 5
Product details
| China RoHS compliance | Out of scope | |
| Connection notes | Bi flow | |
| Contain batteries | No | |
| EU RoHS compliance | Out of scope | |
| Packing format | Multi pack | |
| Parts included | 1x washer Al. | |
| Pressure inlet conn. size [in] | 3/8 | |
| Pressure inlet conn. std. | ISO 228-1 | |
| Pressure inlet conn. type | G | |
| Pressure inlet Internal/Extern | Internal | |
| Pressure outlet conn. size[in] | 7/16-20 | |
| Pressure outlet conn. type | UNF | |
| Pressure outlet Internal/Exter | External | |
| Product group | Switches accessories | |
| Product Name Description | Nipple | |
| Quantity per packing format | 5 pc | |
| REACH Candidate List substances | No | |
| Type | Accessory | |
| Type designation | Nipple | |
| UK RoHS compliance | Out of scope | |
| Used for product | CAS; KP; KPS; MP; RT |
Technical data
| Product type | Switches accessories | |
| Net weight | 0.041 kg | |
| Gross weight | 0.048 kg | |
| Packed volume | 0 L | |
| EAN | 5702428020992 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 017-420566 are available on request. Ask for documents →
