017-515366

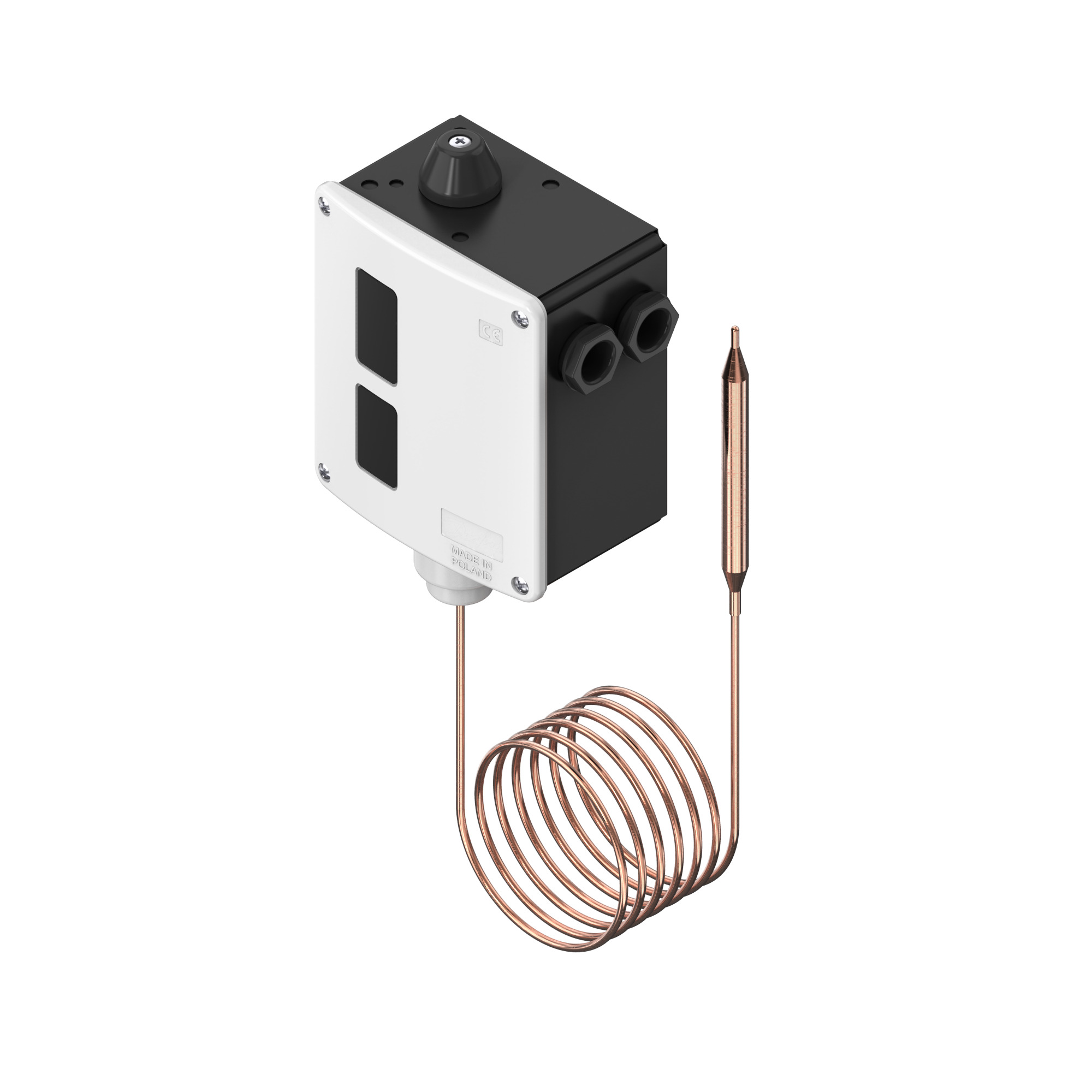

Danfoss 017-515366 - Thermostat, RT107E
- Temperature range [°C]: 70 - 150
- Reset function: Auto
- Contact function: SPDT gold
- Sensor type: Remote bulb
- Capillary tube length [mm]: 2000
- Enclosure rating IP: IP66
Product details
| Ambient temperature range [°C] [max] | 65 °C | |
| Ambient temperature range [°C] [min] | -20 °C | |
| Ambient temperature range [°F] [max] | 149 °F | |
| Ambient temperature range [°F] [min] | -4 °F | |
| Approval | ATEX - Cat. 2 - Zone 1; CE; EAC; LLC CDC EURO-TYSK; PZH; RMRS; RoHS; RoHS China; TYSK | |
| Cap. tube length fraction [in] | 78 3/4 in | |
| Capillary tube length [mm] | 2000 mm | |
| CE evaluated | Yes | |
| Charge type | Partial | |
| China RoHS compliance | Yes | |
| Contact function | SPDT gold | |
| Contact rating | Ci=0.5 nF; Ii=0.5 A; Li=0.2 uH; Pi=1 W; Ui=29 V | |
| Contain batteries | No | |
| Diff. @ Max. range setting[°C] [max] | 8 °C | |
| Diff. @ Max. range setting[°C] [min] | 1.8 °C | |
| Diff. @ Min. range setting[°C] [max] | 25 °C | |
| Diff. @ Min. range setting[°C] [min] | 6 °C | |
| Differential type | Adjustable | |
| Electrical conn. Male/Female | Female | |
| Electrical connection | Screwed cable entry | |
| Electrical connection size | 2xPg 13.5 | |
| Electrical connection standard | DIN 40430 | |
| Electrical spec. standard | EN 60947-4/-5 | |
| EN 60947 electrical properties | Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A | |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2 | |
| Enclosure rating IP | IP66 | |
| EU RoHS compliance | Out of scope | |
| EX Sales text | -20C ta +65C; II 2G Ex ia IIC T6...T1 Gb | |
| Max. sensor temperature [°C] | 215 °C | |
| Max. sensor temperature [°F] | 419 °F | |
| Packing format | Multi pack | |
| Product accessories | Switches accessories | |
| Product description | Thermostat | |
| Product group | Switches and thermostats | |
| Product Name Description | Thermostat | |
| Quantity per packing format | 15 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Reset function | Auto | |
| Sensor pocket length min. [in] | 4 13/32 in | |
| Sensor pocket length min. [mm] | 112 mm | |
| Sensor size (Ø x L) [in] | 3/8 x 4 1/4 in | |
| Sensor size (Ø x L) [mm] | 9.5 x 110 mm | |
| Sensor type | Remote bulb | |
| Serviceable | Contact systems | |
| Temperature range [°C] [max] | 150 °C | |
| Temperature range [°C] [min] | 70 °C | |
| Temperature range [°F] [max] | 302 °F | |
| Temperature range [°F] [min] | 158 °F | |
| Type | RT107E | |
| UK RoHS compliance | Out of scope |
Technical data
| Product type | Switches and thermostats | |
| Net weight | 0.966 kg | |
| Gross weight | 1.102 kg | |
| Packed volume | 2.7 L | |
| EAN | 5702423245277 | |
