017D003066

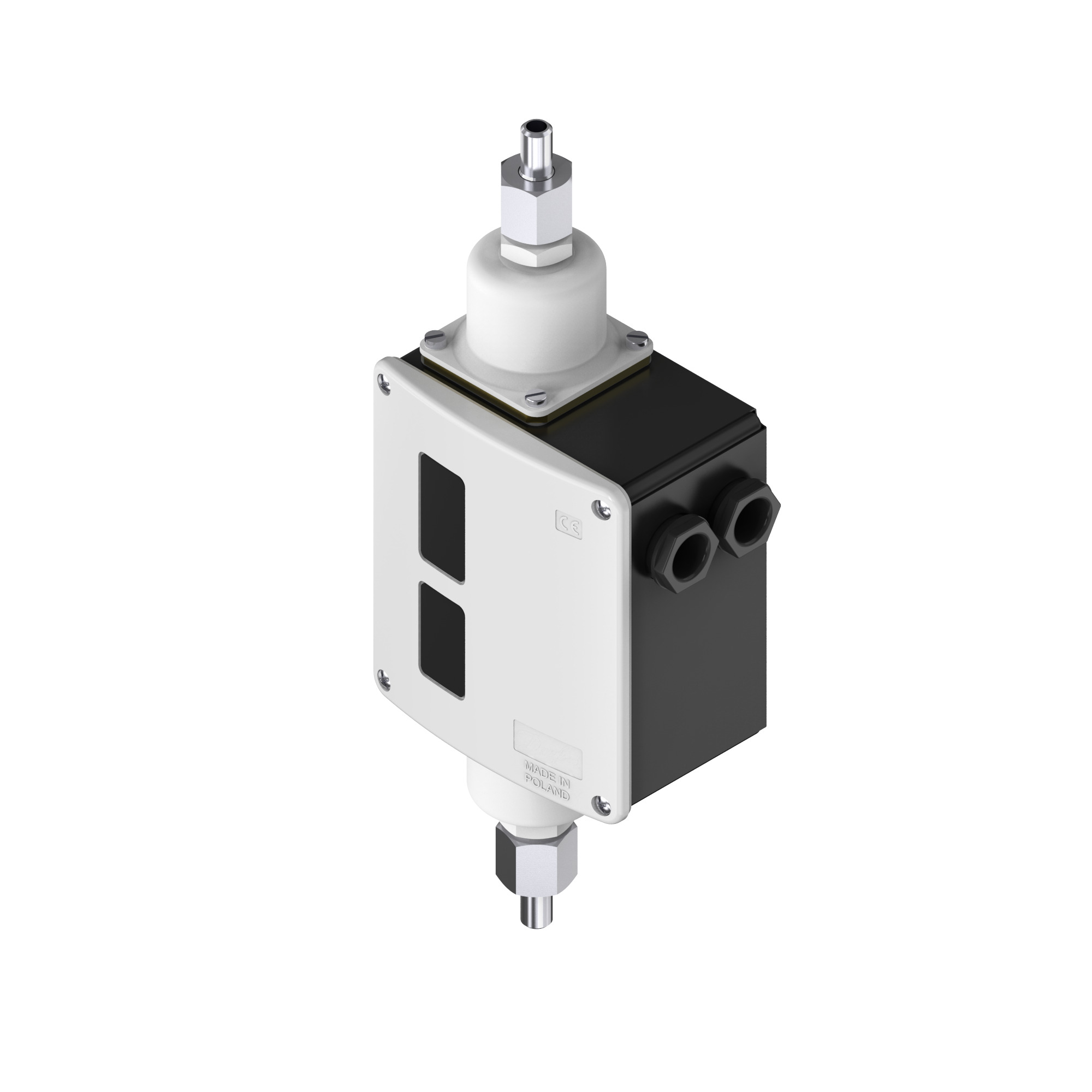

Danfoss 017D003066 - Differential pressure switch, RT262AE
- Diff.press.setting range [bar]: 0.10 - 1.50
- Reset function: Auto
- Pressure connection type: G
- Pressure connection size: 3/8
- Enclosure rating IP: IP66
- Max. Working Pressure [bar]: 11.0
Product details
| Alarm Signal | Falling | |
| Ambient temperature range [°C] [max] | 70 °C | |
| Ambient temperature range [°C] [min] | -50 °C | |
| Ambient temperature range [°F] [max] | 158 °F | |
| Ambient temperature range [°F] [min] | -58 °F | |
| Approval | ATEX - Cat. 2 - Zone 1; CCC; CE; EAC; PZH; RMRS; RoHS; RoHS China; TYSK; LLC CDC EURO-TYSK | |
| CE evaluated | Yes | |
| China RoHS compliance | Yes | |
| Contact differential [bar] | 0.1 bar | |
| Contact function | SPDT (neutral zone) | |
| Contact rating | Ci=0.5 nF; Ii=0.5 A; Pi=1 W; Ui=29 V; Li=0.2 uH | |
| Contain batteries | No | |
| Diff.press.setting range [bar] [max] | 1.5 bar | |
| Diff.press.setting range [bar] [min] | 0.1 bar | |
| Diff.press.setting range [MPa] [max] | 0.15 MPa | |
| Diff.press.setting range [MPa] [min] | 0.01 MPa | |
| Diff.press.setting range [psi] [max] | 22 psi | |
| Diff.press.setting range [psi] [min] | 1.5 psi | |
| EEE category | 5 small equipment (any external dimension 50 cm) | |
| Electrical conn. Male/Female | Female | |
| Electrical connection | Screwed cable entry | |
| Electrical connection size | 2xPg 13.5 | |
| Electrical connection standard | DIN 40430 | |
| Electrical spec. standard | EN 60947-4/-5 | |
| EN 60947 electrical properties | Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 10A; Insulation: 400V | |
| EN 60947 wiring properties | Flex, ferrules: 0.2-1.5 mm2; Flex, no ferrules: 0.2-2.5 mm2; Solid/stranded: 0.2-2.5 mm2 | |
| Enclosure rating IP | IP66 | |
| EU RoHS compliance | Out of scope | |
| EX Sales text | -20C ta +65C; II 2G Ex ia IIC T6...T1 Gb | |
| Factory setting [bar] | 0.12 bar | |
| Factory setting [MPa] | 0.012 MPa | |
| Factory setting [psig] | 2 psig | |
| In scope of WEEE | Yes | |
| Max. test pressure [bar] Pe | 13 bar | |
| Max. test pressure [psig] | 188 psig | |
| Max. Working Pressure [bar] | 11 bar | |
| Max. Working Pressure [psig] | 160 psig | |
| Operat. range LP side [bar] Pe [max] | 9 bar | |
| Operat. range LP side [bar] Pe [min] | -1 bar | |
| Operat. range LP side [psig]Pe [max] | 131 psig | |
| Operat. range LP side [psig]Pe [min] | -15 psig | |
| Packing format | Multi pack | |
| Pressure connection size | 3/8 | |
| Pressure connection standard | ISO 228-1 | |
| Pressure connection type | G | |
| Pressure Male/Female | Male | |
| Pressure range [bar] Pe [max] | 9 bar | |
| Pressure range [bar] Pe [min] | -1 bar | |
| Product accessories | Generic accessories; Switches accessories | |
| Product description | Diff. Pressure Switch | |
| Product group | Switches and thermostats | |
| Product Name Description | Differential pressure switch | |
| Quantity per packing format | 9 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Relay release time [s] | 0 s | |
| Reset function | Auto | |
| Serviceable | Contact systems | |
| Type | RT262AE | |
| UK RoHS compliance | Out of scope |
Technical data
| Product type | Switches and thermostats | |
| Net weight | 1.229 kg | |
| Gross weight | 1.507 kg | |
| Packed volume | 4.7 L | |
| EAN | 5702428131476 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 017D003066 are available on request. Ask for documents →
