027G3050

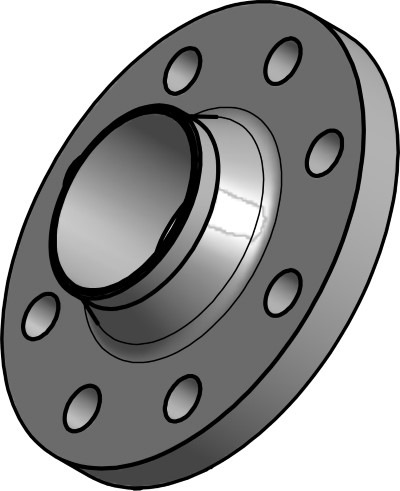

Danfoss 027G3050 - Flange set, Flange, 50 mm, G
- Connection standard: ISO 228-1
- Material Spec.: Steel
- Used for product: WVTS 50; WVS 50
Product details
| Connection size [in] | 2 | |
| Connection size [mm] | 50 mm | |
| Connection standard | ISO 228-1 | |
| Connection type | G | |
| Contain batteries | No | |
| Flange design | Sealing recess | |
| Flange form | Round | |
| Flange version | 9.0 A | |
| Material Spec. | Steel | |
| Packing format | Single pack | |
| Parts included | 2 flanges | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 1 pc | |
| REACH Candidate List substances | No | |
| Surface coating | Zn 12TLP | |
| Type | Flange | |
| Used for product | WVTS 50; WVS 50 |
Technical data
| Product type | Flanges | |
| Net weight | 4.657 kg | |
| Gross weight | 5.238 kg | |
| Packed volume | 6.2 L | |
| EAN | 5702422009641 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027G3050 are available on request. Ask for documents →
