027G3065

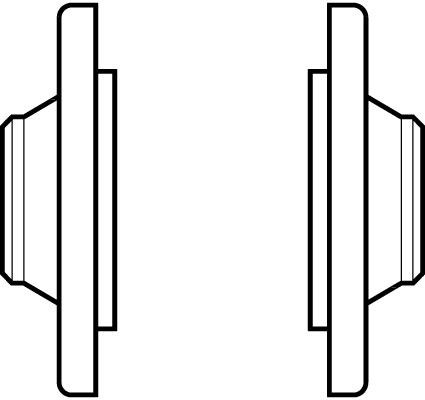

Danfoss 027G3065 - Flange set, Flange, 65 mm, G
- Connection standard: ISO 228-1
- Material Spec.: C22.8
- Used for product: WVS 65; WVTS 65; EVSI 65
Product details
| Comments | PACKED IN RUSTPREVENTED PAPER | |
| Connection size [in] | 2 1/2 | |
| Connection size [mm] | 65 mm | |
| Connection standard | ISO 228-1 | |
| Connection type | G | |
| Contain batteries | No | |
| Flange design | Sealing recess | |
| Flange form | Round | |
| Flange version | 9.0 B | |
| Further information | Packed in rustprevented paper | |
| Material Spec. | C22.8 | |
| Packing format | Single pack | |
| Parts included | 2 flanges | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 1 pc | |
| REACH Candidate List substances | No | |
| Type | Flange | |
| Used for product | WVS 65; WVTS 65; EVSI 65 |
Technical data
| Product type | Flanges | |
| Net weight | 6.204 kg | |
| Gross weight | 6.432 kg | |
| Packed volume | 6.2 L | |
| EAN | 5702422042105 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027G3065 are available on request. Ask for documents →
