027L1122

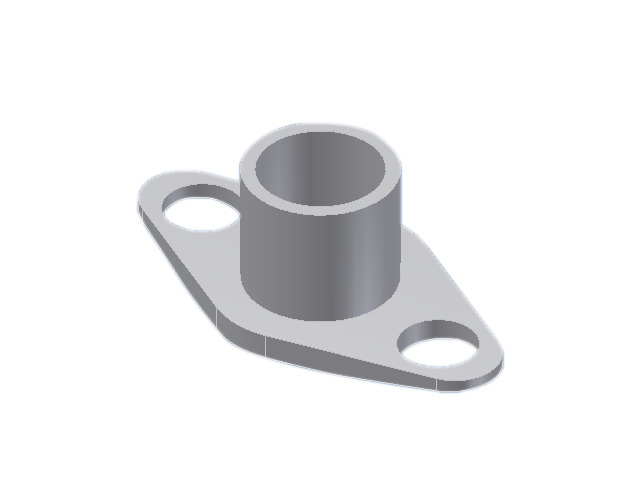

Danfoss 027L1122 - Flange set, Flange, 22 mm, Soldering
- Connection standard: EN 1254
- Material Spec.: Brass
- Used for product: CVMP; EVRA 3 - 15; CVKP; NRVA 15 - 20; CVML; CVK; CVMH; CVM; EVR 15; CVMM; CVMT; CVMO; TEA 20; TEVA 20; TE 12; TEAT 20; CVMQ
Product details
| Connection size [mm] | 22 mm | |
| Connection standard | EN 1254 | |
| Connection type | Soldering | |
| Contain batteries | No | |
| Flange design | Tongue | |
| Flange form | Oval | |
| Flange version | 1.3 | |
| Material Spec. | Brass | |
| Packing format | Multi pack | |
| Parts included | 2 flanges | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 16 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R717; R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R152a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A | |
| Type | Flange | |
| Used for product | CVMP; EVRA 3 - 15; CVKP; NRVA 15 - 20; CVML; CVK; CVMH; CVM; EVR 15; CVMM; CVMT; CVMO; TEA 20; TEVA 20; TE 12; TEAT 20; CVMQ |
Technical data
| Product type | Flanges | |
| Net weight | 0.489 kg | |
| Gross weight | 0.505 kg | |
| Packed volume | 0.3 L | |
| EAN | 5702422049807 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027L1122 are available on request. Ask for documents →
