027L2676

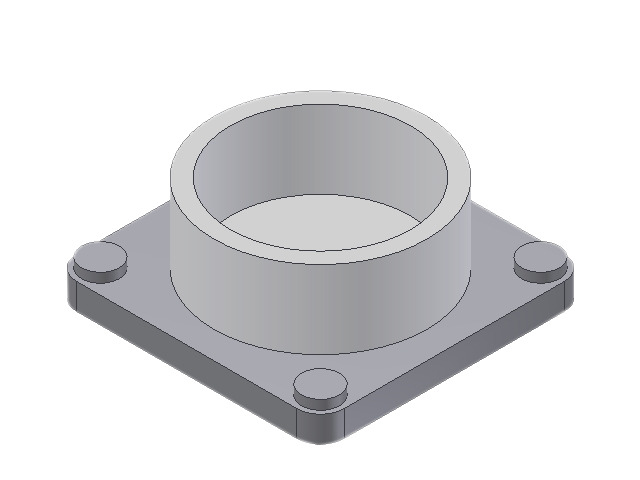

Danfoss 027L2676 - Flange set, Flange, 76 mm, Soldering
- Connection standard: EN 1254
- Material Spec.: Steel
- Used for product: PML 65; PM 65; PMFH 500; PMLX 65
Product details
| Connection size [in] | 3 in | |
| Connection size [mm] | 76 mm | |
| Connection standard | EN 1254 | |
| Connection type | Soldering | |
| Contain batteries | No | |
| Flange design | Tongue | |
| Flange form | Square | |
| Flange version | 13.0 | |
| Material Spec. | Steel | |
| Packing format | Single pack | |
| Parts included | 2 flanges | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 1 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Type | Flange | |
| Used for product | PML 65; PM 65; PMFH 500; PMLX 65 |
Technical data
| Product type | Flanges | |
| Net weight | 3.115 kg | |
| Gross weight | 3.33 kg | |
| Packed volume | 6.2 L | |
| EAN | 5702422019756 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027L2676 are available on request. Ask for documents →
