027N1051

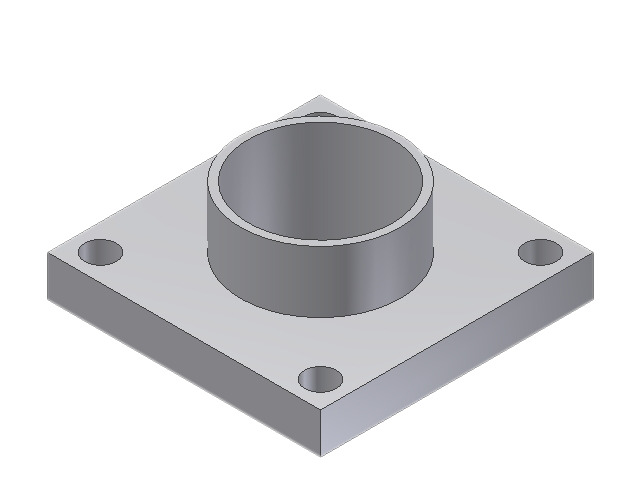

Danfoss 027N1051 - Flange set, Flange, 50 mm, Butt weld
- Connection standard: EN 10220
- Material Spec.: Steel
- Used for product: NRVA 40-50; NRVA 40 - 50
Product details
| Connection size [in] | 2 in | |
| Connection size [mm] | 50 mm | |
| Connection standard | EN 10220 | |
| Connection type | Butt weld | |
| Contain batteries | No | |
| Flange design | Tongue | |
| Flange form | Square | |
| Flange version | 6.0 | |
| Material Spec. | Steel | |
| Packing format | Multi pack | |
| Parts included | 2 flanges | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 4 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R717; R1233zd(E); R1234yf; R1234ze(E); R125; R134a; R152a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A | |
| Type | Flange | |
| Used for product | NRVA 40-50; NRVA 40 - 50 |
Technical data
| Product type | Flanges | |
| Net weight | 2.78 kg | |
| Gross weight | 2.782 kg | |
| Packed volume | 2.7 L | |
| EAN | 5702422112297 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027N1051 are available on request. Ask for documents →
