027N2450

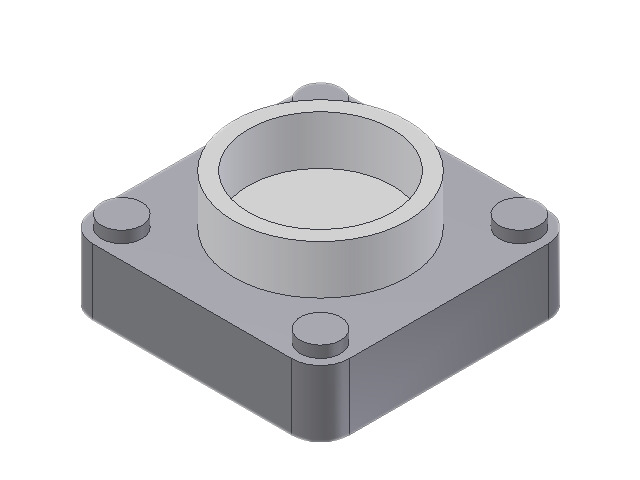

Danfoss 027N2450 - Flange set, Flange, 50 mm, Butt weld
- Connection standard: EN 10220
- Material Spec.: Steel
- Used for product: PML 40; PMLX 40; PMFH 200; PMFL 200; PM 40
Product details
| Connection size [in] | 2 in | |
| Connection size [mm] | 50 mm | |
| Connection standard | EN 10220 | |
| Connection type | Butt weld | |
| Contain batteries | No | |
| Flange design | Tongue | |
| Flange form | Square | |
| Flange version | 11.0 | |
| Material Spec. | Steel | |
| Packing format | Multi pack | |
| Parts included | 2 flanges | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 10 pc | |
| REACH Candidate List substances | No | |
| Type | Flange | |
| Used for product | PML 40; PMLX 40; PMFH 200; PMFL 200; PM 40 |
Technical data
| Product type | Flanges | |
| Net weight | 2.029 kg | |
| Gross weight | 2.122 kg | |
| Packed volume | 0.9 L | |
| EAN | 5702422040156 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027N2450 are available on request. Ask for documents →
