027N3036

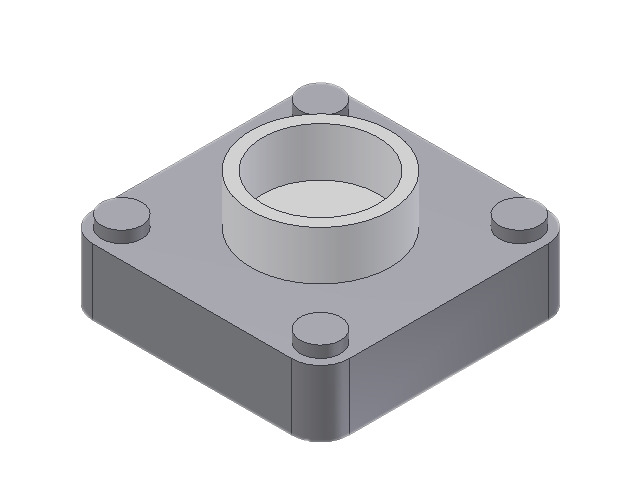

Danfoss 027N3036 - Flange set, Flange, 40 mm, Butt weld
- Connection standard: ASME B 36.10M SCHEDULE 80
- Material Spec.: Steel
- Used for product: PML 40; PMLX 40; PMFH 200; PMFL 200; PM 40
Product details
| Connection size [in] | 1 1/2 in | |
| Connection size [mm] | 40 mm | |
| Connection standard | ASME B 36.10M SCHEDULE 80 | |
| Connection type | Butt weld | |
| Contain batteries | No | |
| Flange design | Tongue | |
| Flange form | Square | |
| Flange version | 11.0 | |
| Material Spec. | Steel | |
| Packing format | Multi pack | |
| Parts included | 2 flanges | |
| Product group | Flanges | |
| Product Name Description | Flange set | |
| Quantity per packing format | 10 pc | |
| REACH Candidate List substances | No | |
| Type | Flange | |
| Used for product | PML 40; PMLX 40; PMFH 200; PMFL 200; PM 40 |
Technical data
| Product type | Flanges | |
| Net weight | 2.21 kg | |
| Gross weight | 2.279 kg | |
| Packed volume | 0.9 L | |
| EAN | 5702428196802 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 027N3036 are available on request. Ask for documents →
