034G7078

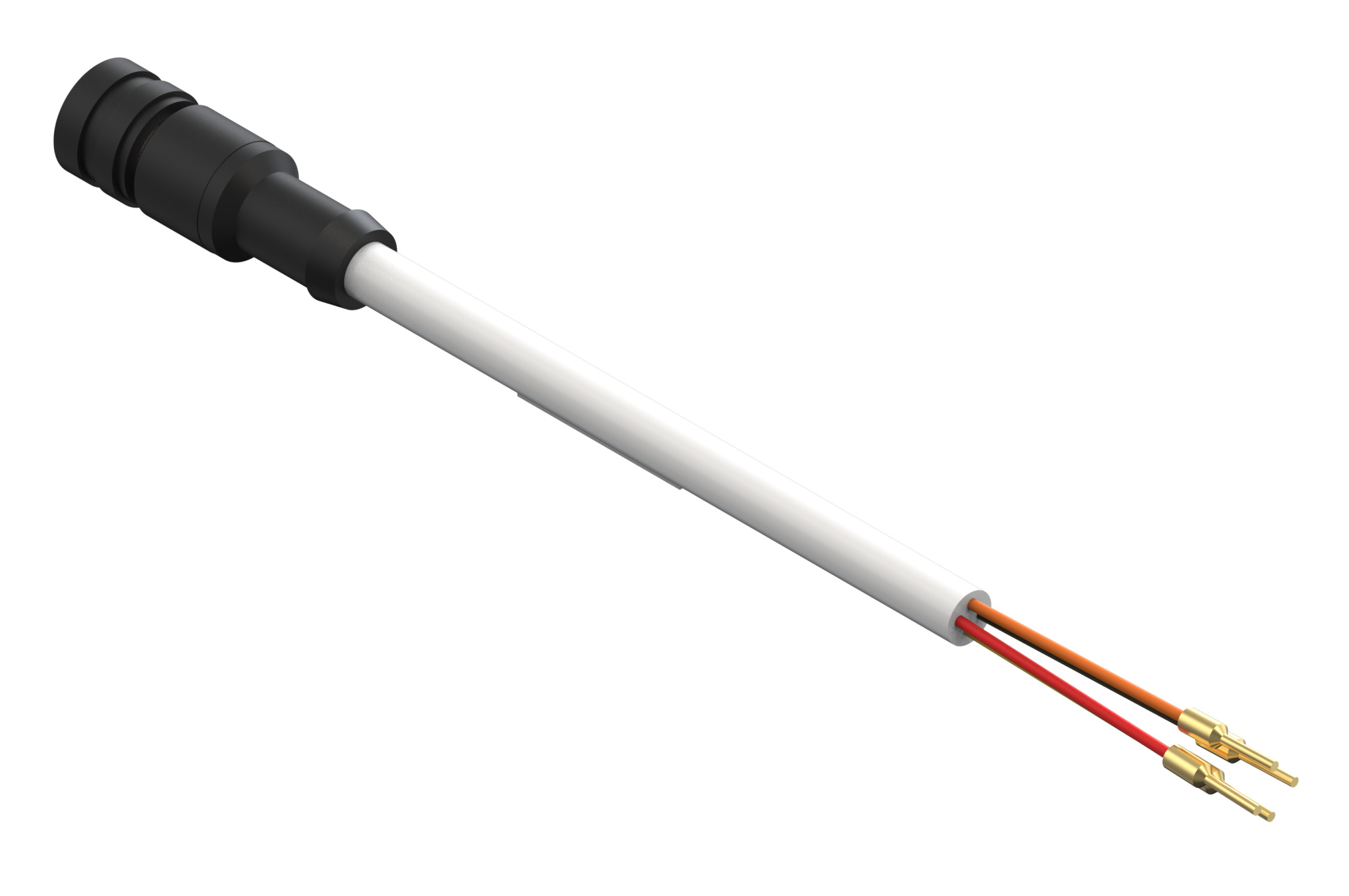

Danfoss 034G7078 - Electric valve accessories, Cable
- Used for product comments: Straightway connector
- Type designation: Cable
- Cable length [m]: 12.200
- Used for product: ETS 100; KVS 3C; ETS 50; ETS 250; ETS 12C; ETS 400; KVS 2C; ETS 25; KVS 15; ETS 25B; ETS 12.5; ETS 50C; ETS 100C; ETS 25C; ETS 24C
- Packing format: Multi pack
- Quantity per packing format: 8
Product details
| Approval | CE; EAC; LLC CDC TYSK; RoHS; UKCA | |
| Cable feature | Twisted pair | |
| Cable insulation material | PVC | |
| Cable length [ft] | 40 ft | |
| Cable length [m] | 12.2 | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Contain batteries | No | |
| Electrical conn. Male/Female | Female | |
| Electrical connection | M12 | |
| Enclosure rating IP | IP67 | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Operating temperature [°C] [max] | 80 °C | |
| Operating temperature [°C] [min] | -40 °C | |
| Operating temperature [°F] [max] | 176 °F | |
| Operating temperature [°F] [min] | -40 °F | |
| Packing format | Multi pack | |
| Product group | Electric valve accessories | |
| Product Name Description | Cable | |
| Quantity per packing format | 8 | |
| REACH Candidate List substances | No | |
| Type | Accessory | |
| Type designation | Cable | |
| UK RoHS compliance | Yes | |
| Used for product | ETS 100; KVS 3C; ETS 50; ETS 250; ETS 12C; ETS 400; KVS 2C; ETS 25; KVS 15; ETS 25B; ETS 12.5; ETS 50C; ETS 100C; ETS 25C; ETS 24C | |
| Used for product comments | Straightway connector |
Technical data
| Product type | Electric valve accessories | |
| Net weight | 0.78 kg | |
| Gross weight | 0.894 kg | |
| Packed volume | 1.8 L | |
| EAN | 5715162466032 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 034G7078 are available on request. Ask for documents →
