060-116166

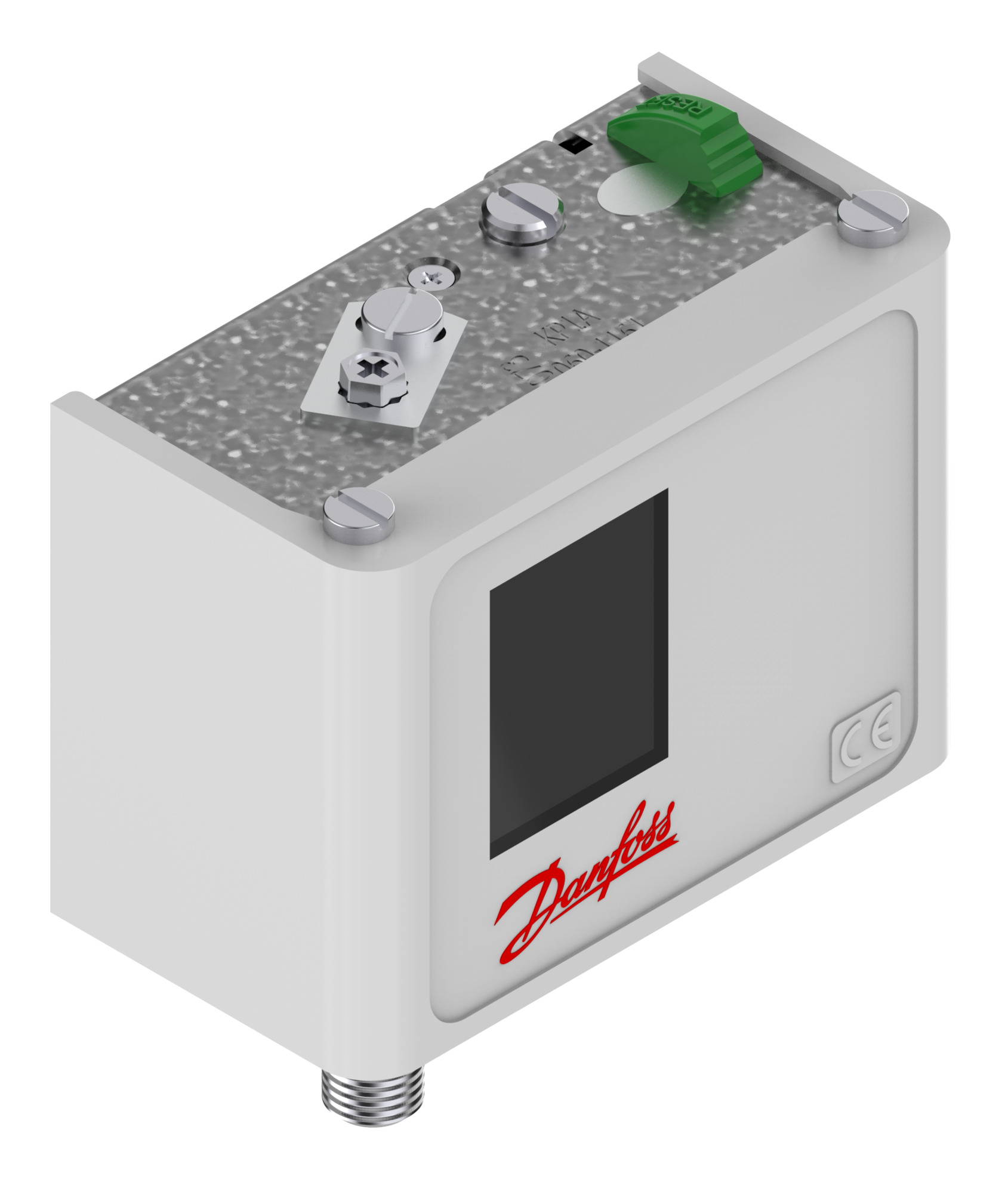

Danfoss 060-116166 - Pressure switch, KP1A
- Regulation range [bar] Pe: -0.90 - 7.00
- Differential [bar]: 0.70
- Contact function: SPDT
- Reset function: Manual Min
- Pressure connection type: M
- Pressure connection size: 10 x 0.75
- Pressure Male/Female: Male
- Enclosure rating IP: IP30
- Max. Working Pressure [bar]: 17.0
Product details
| Amb. Temp. Note | 80 °C/176 °F for max 120 min | |
| Ambient temperature range [°C] [max] | 65 °C | |
| Ambient temperature range [°C] [min] | -25 °C | |
| Ambient temperature range [°F] [max] | 149 °F | |
| Ambient temperature range [°F] [min] | -13 °F | |
| Application note | Not applicable for liquid line | |
| Approval | BV; CCC; CE; CMIM; DNV; EAC; GL; LLC CDC EURO-TYSK; LR; LVD; PED; PZH; RINA; RMRS; RoHS China; c UL us UL873, CS C22.2 | |
| CE evaluated | Yes | |
| China RoHS compliance | Yes | |
| Contact function | SPDT | |
| Contact rating | AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V | |
| Contain batteries | No | |
| Differential [bar] | 0.7 bar | |
| Differential [psi] | 10 psi | |
| EEE category | 5 small equipment (any external dimension 50 cm) | |
| Electrical connection | Rubber cable gland | |
| Electrical connection size | 6-14 mm | |
| EN 60947 electrical properties | Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A | |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2 | |
| Enclosure rating IP | IP30 | |
| Enclosure rating Nema (~) | 1 | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Fluid Group | 1 | |
| In scope of WEEE | Yes | |
| Lubricants compatibility | Oilfree applications | |
| Max. test pressure [bar] Pe | 20 bar | |
| Max. test pressure [psig] | 290 psig | |
| Max. Working Pressure [bar] | 17 bar | |
| Max. Working Pressure [psig] | 245 psig | |
| Oil free refrigerants | R134a; R513A; R515B | |
| Packing format | Multi pack | |
| PED category | IV | |
| Pressure connection size | 10 x 0.75 | |
| Pressure connection standard | ISO 261 | |
| Pressure connection type | M | |
| Pressure Male/Female | Male | |
| Pressure sensing element | Bellows | |
| Product accessories | Switches accessories | |
| Product description | Pressure Switch | |
| Product group | Switches and thermostats | |
| Product Name Description | Pressure switch | |
| Quantity per packing format | 14 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R113; R1234yf; R1234yz; R1234ze(E); R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R454C; R455A; R507A; R513A; R515B; R717 | |
| Regulation range | 27 inHg - 101 psig | |
| Regulation range [bar] Pe [max] | 7 bar | |
| Regulation range [bar] Pe [min] | -0.9 bar | |
| Reset function | Manual Min | |
| SCIP dossier product name | KP/KPI pressure switch | |
| Serviceable | No | |
| Type | KP1A | |
| UK RoHS compliance | Yes | |
| UL approval file name | E31024 | |
| UL approved refrigerants | R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A; R515B; R717 | |
| UL evaluated | Yes |
Technical data
| Product type | Switches and thermostats | |
| Net weight | 0.419 kg | |
| Gross weight | 0.458 kg | |
| Packed volume | 1.5 L | |
| EAN | 5702428015974 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 060-116166 are available on request. Ask for documents →
