060-117466

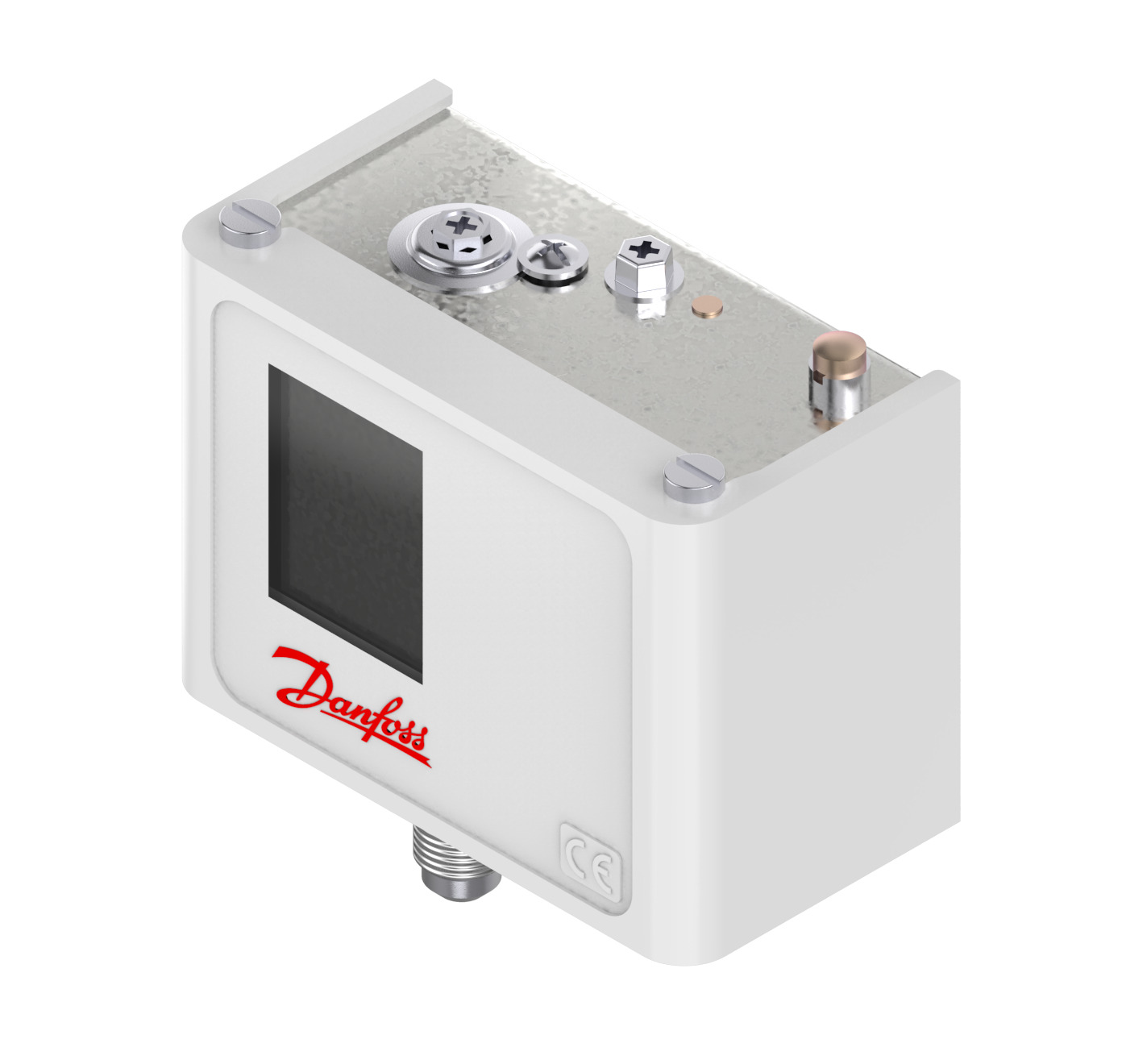

Danfoss 060-117466 - Pressure switch, KPR5
- Regulation range [bar] Pe: 6.00 - 18.00
- Differential [bar]: 1.00 - 2.50
- Contact function: SPDT
- Reset function: Auto
- Pressure connection type: Flare
- Pressure connection size: 1/4
- Pressure Male/Female: Male
- Enclosure rating IP: IP30
- Max. Working Pressure [bar]: 20.0
Product details
| Amb. Temp. Note | 80 °C/176 °F for max 120 min | |
| Ambient temperature range [°C] [max] | 65 °C | |
| Ambient temperature range [°C] [min] | -40 °C | |
| Ambient temperature range [°F] [max] | 149 °F | |
| Ambient temperature range [°F] [min] | -40 °F | |
| Approval | CE; LLC CDC EURO-TYSK; LVD | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Contact function | SPDT | |
| Contact rating | AC15=4 A, 440 V; AC1=10 A, 440 V; AC3=6 A, 440 V; DC13=12 W, 220 V; LR=36 A, 240 V; LR=48 A, 120 V | |
| Contain batteries | No | |
| Differential [bar] [max] | 2.5 bar | |
| Differential [bar] [min] | 1 bar | |
| Differential [psi] [max] | 36 psi | |
| Differential [psi] [min] | 14.5 psi | |
| Electrical connection | Rubber cable gland | |
| Electrical connection size | 6-14 mm | |
| EN 60947 electrical properties | Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A | |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2 | |
| Enclosure rating IP | IP30 | |
| Enclosure rating Nema (~) | 1 | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Identical product | 060-514266 | |
| Lubricants compatibility | Oilfree applications | |
| Max. test pressure [bar] Pe | 22 bar | |
| Max. test pressure [psig] | 319 psig | |
| Max. Working Pressure [bar] | 20 bar | |
| Max. Working Pressure [psig] | 290 psig | |
| Oil free refrigerants | R134a; R513A; R515B | |
| Packing format | Multi pack | |
| Pressure connection size | 1/4 | |
| Pressure connection standard | DIN 8906 | |
| Pressure connection type | Flare | |
| Pressure Male/Female | Male | |
| Pressure sensing element | Bellows | |
| Product accessories | Switches accessories | |
| Product description | Pressure Switch | |
| Product group | Switches and thermostats | |
| Product Name Description | Pressure switch | |
| Quantity per packing format | 36 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A | |
| Regulation range [bar] Pe [max] | 18 bar | |
| Regulation range [bar] Pe [min] | 6 bar | |
| Regulation range [psig] Pe [max] | 261 psig | |
| Regulation range [psig] Pe [min] | 87 psig | |
| Reset function | Auto | |
| Serviceable | No | |
| Type | KPR5 | |
| UK RoHS compliance | Yes | |
| UL approved refrigerants | R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R422B; R422D; R438A; R448A; R449A; R449B; R450A; R452A; R507A; R513A |
Technical data
| Product type | Switches and thermostats | |
| Net weight | 0.297 kg | |
| Gross weight | 0.34 kg | |
| Packed volume | 0.6 L | |
| EAN | 5702428011839 | |
