060-5253

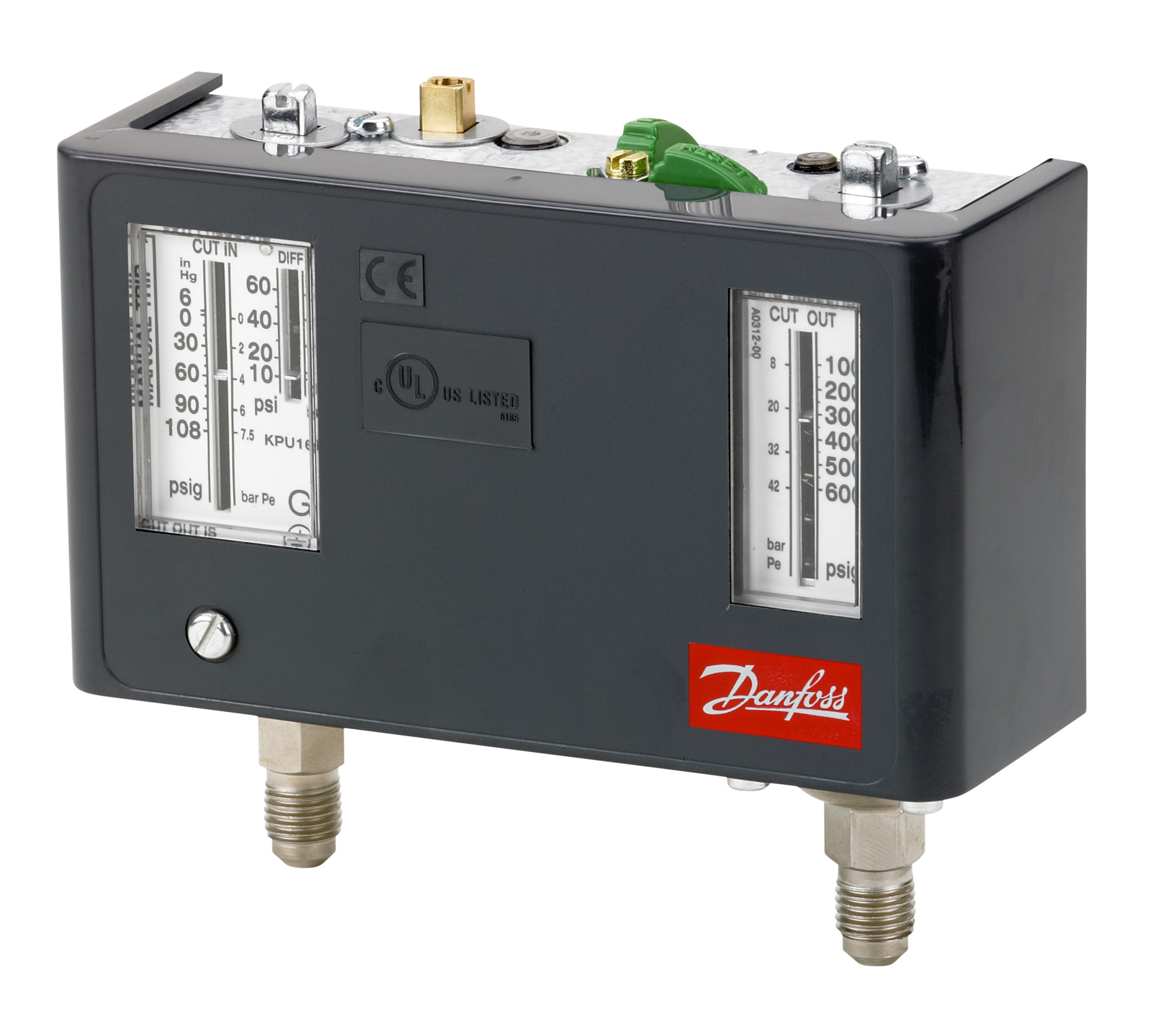

Danfoss 060-5253 - Pressure switch, KPU16B
- Regulation left side [bar]Pe: -0.20 - 7.50
- Regulation right side [bar]Pe: 8.0 - 42.0
- Differential left side [bar]: 0.70 - 4.00
- Differential right side [bar]: 4.0
- Contact function: SPDT+SPST(NO), Reset function
- left side: Min convertible
Product details
| Amb. Temp. Note | 80 °C/176 °F for max 120 min | |
| Ambient temperature range [°C] [max] | 50 °C | |
| Ambient temperature range [°C] [min] | -40 °C | |
| Ambient temperature range [°F] [max] | 122 °F | |
| Ambient temperature range [°F] [min] | -40 °F | |
| Application note | Not applicable for liquid line | |
| Approval | CE; LVD; PED; RoHS; c UL us UL873, CS C22.2 | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Contact function | SPDT+SPST(NO) | |
| Contact rating | 144 A, 240 V AC; 24 A, 240 V ac; DC=12 W pilot duty; FLA=24 A, 120 V ac; LRA = 144 A, 120 V ac | |
| Contain batteries | No | |
| Differential left side [bar] [max] | 4 bar | |
| Differential left side [bar] [min] | 0.7 bar | |
| Differential left side [psi] [max] | 60 psi | |
| Differential left side [psi] [min] | 10 psi | |
| Differential right side [bar] | 4 bar | |
| Differential right side [psi] | 60 psi | |
| Electrical conn. comments | for ½ in male pipe thread | |
| Electrical connection | Hole | |
| Electrical connection size | 7/8 in | |
| EN 60947 electrical properties | Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A | |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2 | |
| Enclosure rating IP | IP30 | |
| Enclosure rating Nema (~) | 1 | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Lubricants compatibility | Oilfree applications | |
| MWP left side [bar] Pe | 17 bar | |
| MWP left side [psig] Pe | 250 psig | |
| MWP right side [bar] Pe | 46.5 bar | |
| MWP right side [psig] Pe | 675 psig | |
| Oil free refrigerants | R134a; R513A; R515B | |
| Packing format | Multi pack | |
| Pressure connection size | 1/4 | |
| Pressure connection standard | DIN 8906 | |
| Pressure connection type | Flare | |
| Pressure Male/Female | Male | |
| Pressure sensing element | Bellows | |
| Product accessories | Switches accessories | |
| Product description | Dual Pressure Control | |
| Product group | Switches and thermostats | |
| Product Name Description | Pressure switch | |
| Quantity per packing format | 14 pc | |
| REACH Candidate List substances | No | |
| Refrigerants | R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R422B; R422D; R438A; R448A; R449A; R450A; R452A; R507A; R513A; R515B | |
| Regulation left side [bar]Pe [max] | 7.5 bar | |
| Regulation left side [bar]Pe [min] | -0.2 bar | |
| Regulation left side range Pe | 6 inHg - 108 psig | |
| Regulation right side [bar]Pe [max] | 42 bar | |
| Regulation right side [bar]Pe [min] | 8 bar | |
| Regulation right side [psig]Pe [max] | 600 psig | |
| Regulation right side [psig]Pe [min] | 100 psig | |
| Reset function, left side | Min convertible | |
| Reset function, right side | Max convertible | |
| Serviceable | No | |
| Type | KPU16B | |
| UK RoHS compliance | Out of scope | |
| UL approval file name | E31024 | |
| UL approved refrigerants | R113; R124; R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R422B; R422D; R438A; R448A; R449A; R450A; R452A; R507A; R513A; R515B | |
| UL evaluated | Yes |
Technical data
| Product type | Switches and thermostats | |
| Net weight | 0.86 kg | |
| Gross weight | 0.905 kg | |
| Packed volume | 1 L | |
| EAN | 5702428063890 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 060-5253 are available on request. Ask for documents →
