060-533666

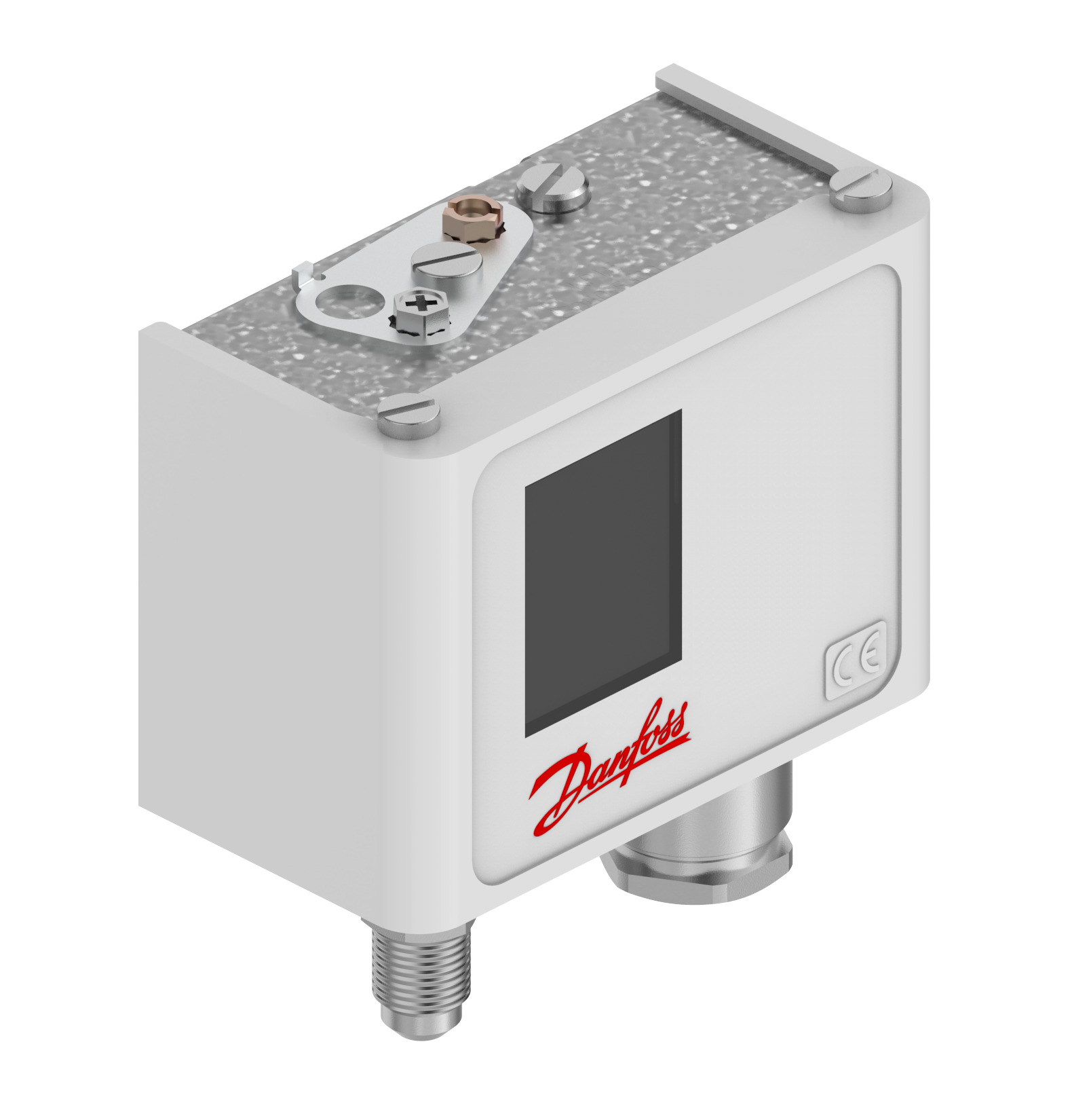

Danfoss 060-533666 - Pressure switch, KP1E
- Regulation range [bar] Pe: -0.20 - 7.50
- Differential [bar]: 0.70 - 4.00
- Contact function: SPDT gold
- Reset function: Auto
- Pressure connection type: Flare
- Pressure connection size: 1/4
- Pressure Male/Female: Male
- Enclosure rating IP: IP44
- Max. Working Pressure [bar]: 17.0
Product details
| Amb. Temp. Note | 80 °C/176 °F for max 120 min | |
| Ambient temperature range [°C] [max] | 40 °C | |
| Ambient temperature range [°C] [min] | -20 °C | |
| Ambient temperature range [°F] [max] | 104 °F | |
| Ambient temperature range [°F] [min] | -4 °F | |
| Approval | ATEX - Cat. 3 - Zone 2; CCC; CE; EAC; LLC CDC EURO-TYSK; LVD; PED; PZH; RINA; RMRS; RoHS China; cURus | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Contact function | SPDT gold | |
| Contact rating | Ci max: 0,5 nF; Ii max: 0,1 A; Li max: 0,2 uH; Pi max: 1 W; Ui max. 30 V | |
| Contain batteries | No | |
| Differential [bar] [max] | 4 bar | |
| Differential [bar] [min] | 0.7 bar | |
| Differential [psi] [max] | 58 psi | |
| Differential [psi] [min] | 10 psi | |
| EEE category | 5 small equipment (any external dimension 50 cm) | |
| Electrical conn. comments | Metal cable gland | |
| Electrical conn. Male/Female | Female | |
| Electrical connection | Screwed cable entry | |
| Electrical connection size | Pg 13.5 | |
| Electrical connection standard | DIN 40430 | |
| EN 60947 electrical properties | Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A | |
| EN 60947 wiring properties | Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2 | |
| Enclosure rating IP | IP44 | |
| Enclosure rating Nema (~) | 2 | |
| Equipment | Bellows stop | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| EX Sales text | -20C ta +60C; II 3G Ex ic IIB T6 Gc | |
| Fluid Group | 1 | |
| In scope of WEEE | Yes | |
| Lubricants compatibility | Oilfree applications | |
| Max. test pressure [bar] Pe | 20 bar | |
| Max. test pressure [psig] | 138 psig | |
| Max. Working Pressure [bar] | 17 bar | |
| Max. Working Pressure [psig] | 246 psig | |
| Oil free refrigerants | R1234ze(E); R516A | |
| Packing format | Multi pack | |
| PED category | IV | |
| Pressure connection size | 1/4 | |
| Pressure connection standard | DIN 8906 | |
| Pressure connection type | Flare | |
| Pressure Male/Female | Male | |
| Pressure sensing element | Bellows | |
| Product accessories | Switches accessories | |
| Product description | Pressure Switch | |
| Product group | Switches and thermostats | |
| Product Name Description | Pressure switch | |
| Quantity per packing format | 36 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R1234yf; R1234ze(E); R1270; R170; R290; R444B; R454A; R454C; R455A; R516A; R600; R600a | |
| Regulation range | 6 inHg - 108 psig | |
| Regulation range [bar] Pe [max] | 7.5 bar | |
| Regulation range [bar] Pe [min] | -0.2 bar | |
| Reset function | Auto | |
| Serviceable | No | |
| Type | KP1E | |
| UK RoHS compliance | Yes |
Technical data
| Product type | Switches and thermostats | |
| Net weight | 0.373 kg | |
| Gross weight | 0.373 kg | |
| Packed volume | 0.6 L | |
| EAN | 5702424066888 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 060-533666 are available on request. Ask for documents →
