060L328066

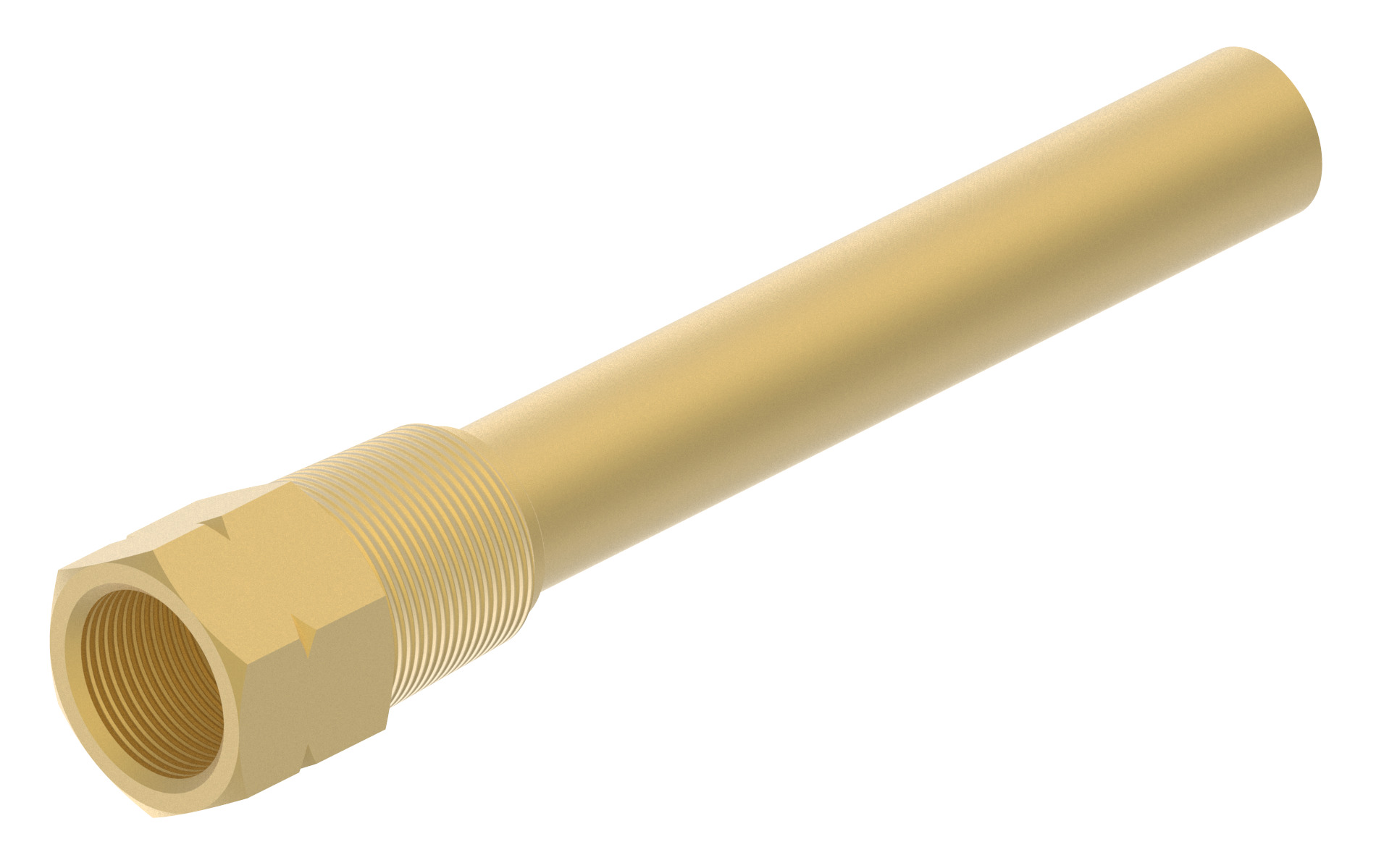

Danfoss 060L328066 - Switches accessories, Sensor Pocket
- Packing format: Multi pack
- Quantity per packing format: 10
Type:
Sensor pocket
Sensor pocket
Product details
| Contain batteries | No | |
| Ext. sensor pocket Ø [mm] | 15 mm | |
| Int. sensor pocket Ø [mm] | 13.5 mm | |
| Packing format | Multi pack | |
| Pressure inlet conn. size [in] | 1/2-14 | |
| Pressure inlet conn. std. | ANSI/ASME B1.20.1 | |
| Pressure inlet conn. type | NPT | |
| Pressure inlet Internal/Extern | External | |
| Product group | Switches accessories | |
| Product Name Description | Sensor pocket | |
| Quantity per packing format | 10 pc | |
| REACH Candidate List substances | No | |
| Sensor pocket conn. length[mm] | 22 mm | |
| Sensor pocket length min. [in] | 4 3/8 in | |
| Sensor pocket length min. [mm] | 110 mm | |
| Sensor pocket material | Brass | |
| Type | Accessory | |
| Type designation | Sensor pocket | |
| Used for product | CAS; KPS; MBC; RT |
Technical data
| Product type | Switches accessories | |
| Net weight | 0.083 kg | |
| Gross weight | 0.085 kg | |
| Packed volume | 0.2 L | |
| EAN | 5702423150502 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 060L328066 are available on request. Ask for documents →
