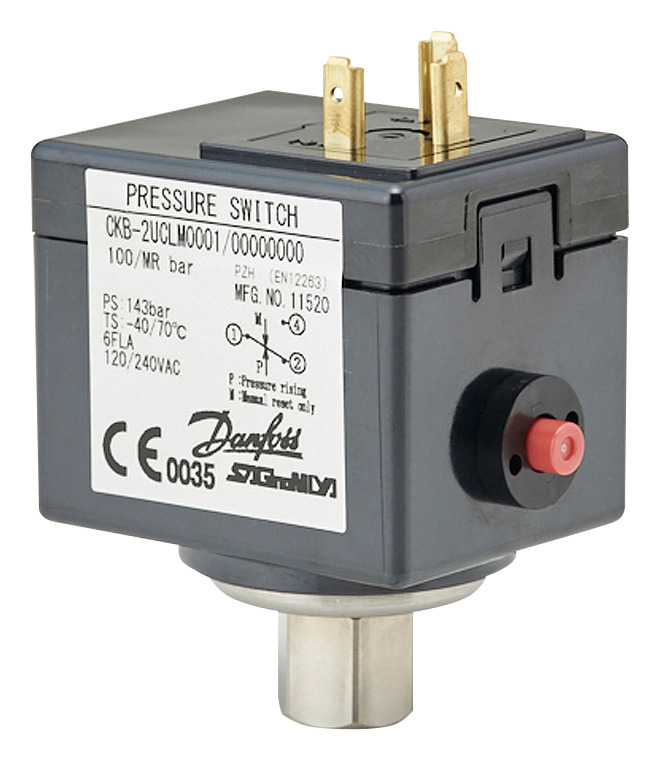

Danfoss 061Z2002 - Pressure switch, CKB

Type:
CKB-2UCLM2002

Product details

Ambient temperature range [°C] [max]		70 °C
Ambient temperature range [°C] [min]		-40 °C
Ambient temperature range [°F] [max]		158 °F
Ambient temperature range [°F] [min]		-40 °F
Approval		CE 0035; TÜV
CE evaluated		Yes
China RoHS compliance		Out of scope
Contact function		SPDT
Contact rating		AC=6 A, 250 V
Contain batteries		No
Electrical conn. comments		DIN plug not included
Electrical connection		DIN Spade
Enclosure rating IP		IP65
EU RoHS compliance		Out of scope
Higher activ. pressure [bar]		108 bar
Higher activ. pressure [psi]		1566 psi
Max. Working Pressure [bar]		143 bar
Max. Working Pressure [psig]		2074 psig
Medium temperature range [°C] [max]		150 °C
Medium temperature range [°C] [min]		-40 °C
Medium temperature range [°F] [max]		302 °F
Medium temperature range [°F] [min]		-40 °F
Packing format		Multi pack
Pressure connection length[in]		0.55 in
Pressure connection length[mm]		14 mm
Pressure connection notes		Deflator
Pressure connection size		1/4 in
Pressure connection type		Flare
Pressure Male/Female		Female
Pressure range category		High pressure
Product group		Switches and thermostats
Product Name Description		Pressure switch
Quantity per packing format		25 pc
Refrigerants		R744
Reset function		Manual
Specification key		CKB-2UCLM2002
Type		CKB
UK RoHS compliance		Yes

Operating guides, design guides, certificates and CAD drawings for 061Z2002 are available on request. Ask for documents →
