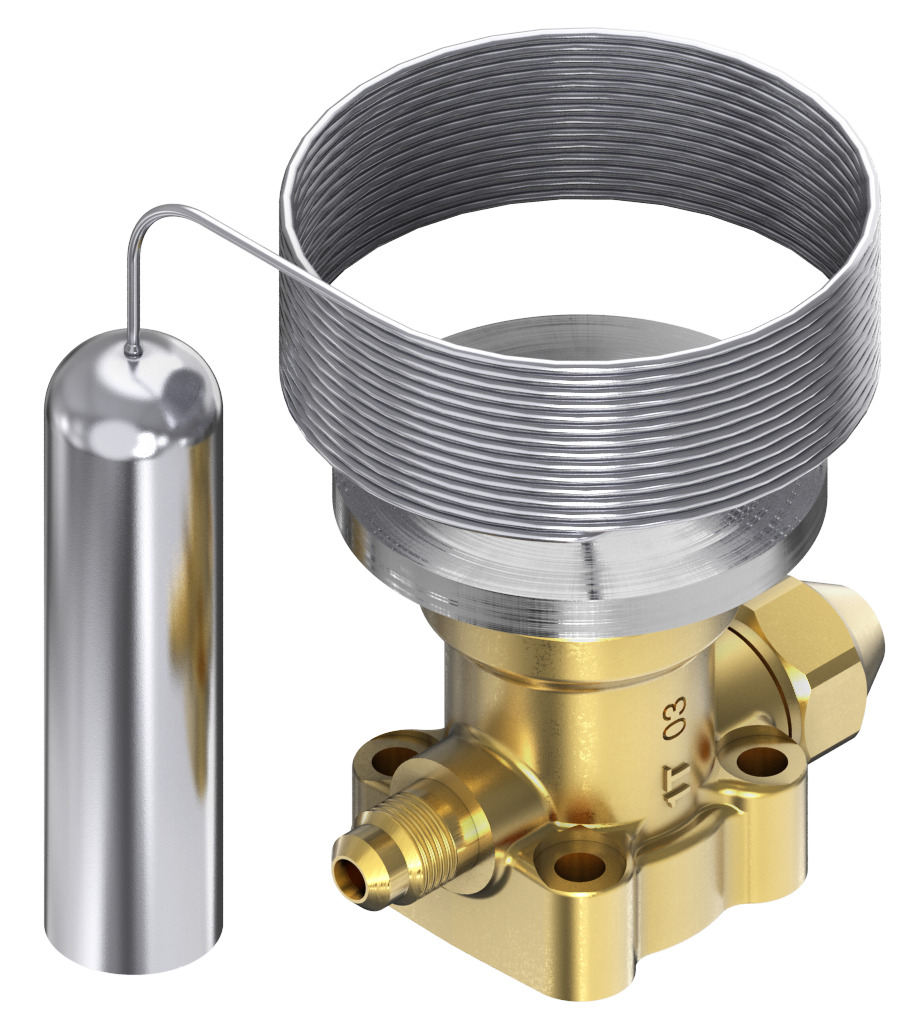

Danfoss 067B3310 - Element for expansion valve, PHT, Element

Product details

Approval		EAC; LLC CDC TYSK
Body material		Brass
Capillary tube length [in]		118 in
Capillary tube length [mm]		3000 mm
China RoHS compliance		Out of scope
Contain batteries		No
Equalization connection type		Flare
Equalization size [in]		1/4 in
EU RoHS compliance		Out of scope
Max. Working Pressure [bar]		28 bar
Max. Working Pressure [psig]		400 psig
Packing format		Multi pack
Pressure equalization		Externally equalized
Product group		Expansion valves
Product Name Description		Element for expansion valve
Quantity per packing format		12 pc
REACH Candidate List substances		Lead (CAS no. 7439-92-1)
Refrigerants		R134a
Temperature range [°C] [max]		10 °C
Temperature range [°C] [min]		-40 °C
Temperature range [°F] [max]		50 °F
Temperature range [°F] [min]		-40 °F
Type		PHT
Type designation		Element
UK RoHS compliance		Out of scope
Used for product		PHTN

Operating guides, design guides, certificates and CAD drawings for 067B3310 are available on request. Ask for documents →
