080G0289

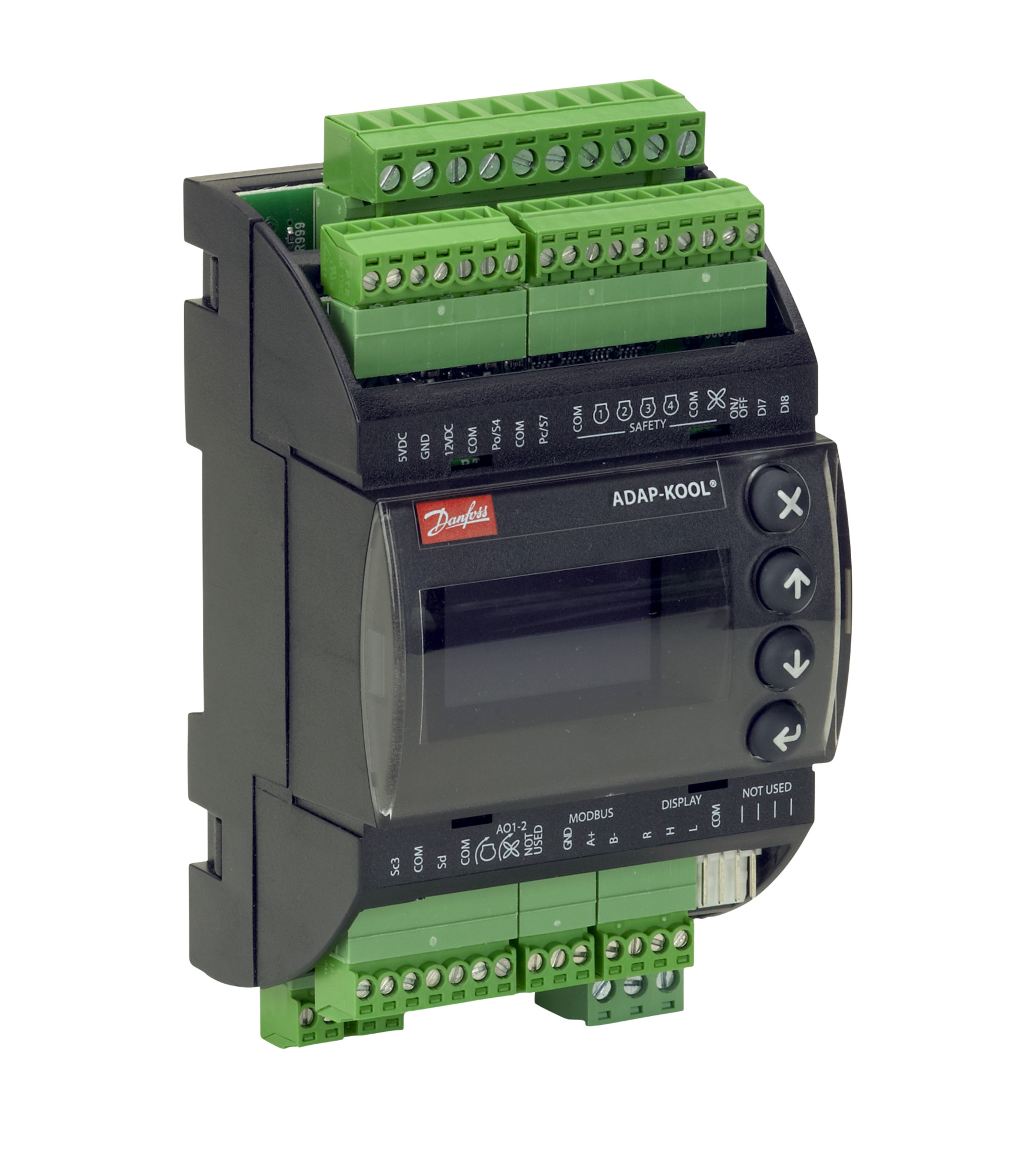

Danfoss 080G0289 - Pack controller, AK-PC 351
- Function: 1 Suction and 1 Condenser
- Digital inputs (DI) [pc]: 8
- Supply voltage [V] AC: 24
- Communication type: MODBUS
- Packing format: Multi pack
- Quantity per packing format: 16
Product details
| 1 Primary battery SUM weight Kg | 0.001 | |
| 1 Primary battery weight Kg | 0.001 | |
| Analog inputs (AI) [pc] | 4 pc | |
| Analog outputs (AO) [pc] | 2 pc | |
| Application area | Capacity control | |
| Approval | CE; CMIM; EAC; GOST R; UL | |
| Battery qty | 1 | |
| Battery type or Name | Lithium coin cell | |
| Capacity control input | Pressure/ Temperature | |
| Capacity control mode | PI | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Communication type | MODBUS | |
| Compressor capacity mode | Step/ Speed/ PWM | |
| Condenser control type | Pressure/ Temperature | |
| Contain batteries | Yes | |
| Digital inputs (DI) [pc] | 8 pc | |
| Digital outputs (DO) [pc] | 6 pc | |
| Display on front | Yes | |
| Division | 25 | |
| Equipment | Incl. Connectors | |
| EU RoHS compliance | Out of scope | |
| Fan capacity control | Step/ Speed | |
| Fan control mode | PI | |
| Frequency [Hz] | 50/60 Hz | |
| Function | 1 Suction and 1 Condenser | |
| Further information | Relay 6 solid state type | |
| Mounting method | DIN rail | |
| Number of Compressors max. | 4 pc | |
| Other RoHS documentation | EAEU RoHS | |
| Packing format | Multi pack | |
| PFAS content [Yes/No] | No | |
| Power consumption [W] | 6 W | |
| Product accessories | Electron. control accessories | |
| Product features | Compressor safety; Fan safety; Floating condenser pressure; High pressure safety; LCD display built in; Low pressure safety; Night optimization; P0 optimization | |
| Product group | Compressor/condenser control | |
| Product Language | Croatian; Czech; English; German; Hungarian; Italian; Polish; Portuguese; Russian; Serbian; Spanish; Turkish | |
| Product Name Description | Pack controller | |
| Quantity per packing format | 16 pc | |
| REACH Candidate List substances | No | |
| Serviceable | No | |
| Supply voltage [V] AC | 24 V | |
| Supply voltage [V] DC | 24 V | |
| Type | AK-PC 351 | |
| Type designation | AK-PC 351 | |
| UK RoHS compliance | Out of scope | |
| UL evaluated | Yes |
Technical data
| Product type | Compressor/condenser control | |
| Net weight | 0.248 kg | |
| Gross weight | 0.348 kg | |
| Packed volume | 1.9 L | |
| EAN | 5702428843621 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 080G0289 are available on request. Ask for documents →
