080G0325

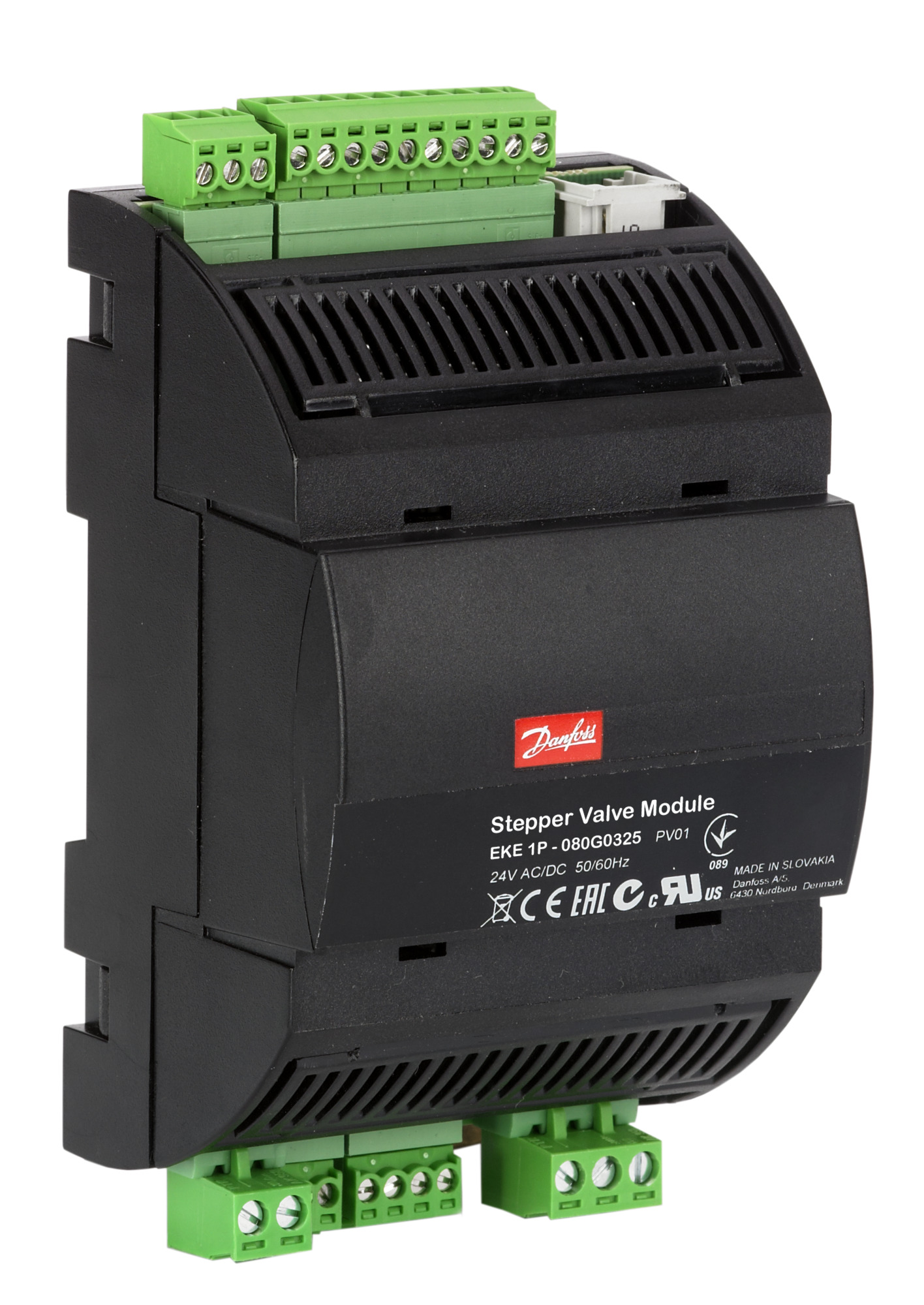

Danfoss 080G0325 - Stepper valve driver, EKE 1P
- Digital inputs (DI) [pc]: 2
- Analog inputs (AI) [pc]: 4
- Pressure sensor support: Ratiometric 0.5 - 4 V DC
- Frequency [Hz]: 50/60 Hz
Product details
| Analog inputs (AI) [pc] | 4 pc | |
| Analog inputs type | Voltage | |
| Approval | C-TICK; CE; EAC; LLC CDC EURO-TYSK; RoHS | |
| Battery back-up [V] DC [max] | 24 V | |
| Battery back-up [V] DC [min] | 18 V | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Communication type | Modbus RS485 RTU; RJ11 (CAN) to User Interface | |
| Digital inputs (DI) [pc] | 2 pc | |
| Digital outputs (DO) [pc] | 1 pc | |
| Display - option | MMIGRS2 | |
| Display on front | No | |
| Division | 25 | |
| Enclosure rating note | IP40 for Housing | |
| Frequency [Hz] | 50/60 Hz | |
| Further information | Shared power supply; Signal share via hardwire | |
| Gateway option | MMIMYK | |
| Mounting method | DIN rail | |
| Number of pressure sensors | 1 | |
| Number of temperature sensors | 2 | |
| Other RoHS documentation | EAEU RoHS | |
| Packing format | Multi pack | |
| PFAS content [Yes/No] | No | |
| Pressure sensor support | Ratiometric 0.5 - 4 V DC | |
| Product accessories | Electron. control accessories | |
| Product features | Alarm management; Capacity signal from master; Defrost Sequence; Ext reference, temp/SH control; Limitation functions; Manual operation; Preset OD; Reversible system with 1 EXV; Service mode; Start up; Superheat reference; Valve driver: Reference of OD | |
| Product group | Electronic valve control | |
| Product Language | Chinese; English; French; German; Italian; Portuguese; Russian; Spanish | |
| Product Name Description | Stepper valve driver | |
| Programming tools | Koolprog | |
| Quantity per packing format | 16 pc | |
| Serviceable | No | |
| Supply voltage [V] AC | 24 V | |
| Supply voltage [V] DC | 24 V | |
| Temp. sensor support | Pt 1000 | |
| Type | EKE 1P | |
| UK RoHS compliance | Out of scope | |
| Used for product | CCM; CCMT; CTR; ETS; KVS | |
| Valve output type | CCM 10; CCM 20; CCM 30; CCM 40; CCMT 0; CCMT 1; CCMT 16; CCMT 2; CCMT 24; CCMT 30; CCMT 3L; CCMT 4; CCMT 42; CCMT 5L; CCMT 8; CCMT8L; CTR 20; ETS 100; ETS 100C; ETS 12.5; ETS 12C; ETS 24C; ETS 25; ETS 250; ETS 25B; ETS 25C; ETS 400; ETS 50; ETS 50C; ETS 6; KVS 15; KVS 2C; KVS 3C; KVS 42 |
Technical data
| Product type | Electronic valve control | |
| Net weight | 0.134 kg | |
| Gross weight | 0.296 kg | |
| Packed volume | 1.8 L | |
| EAN | 5702428673730 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 080G0325 are available on request. Ask for documents →
