084B8623

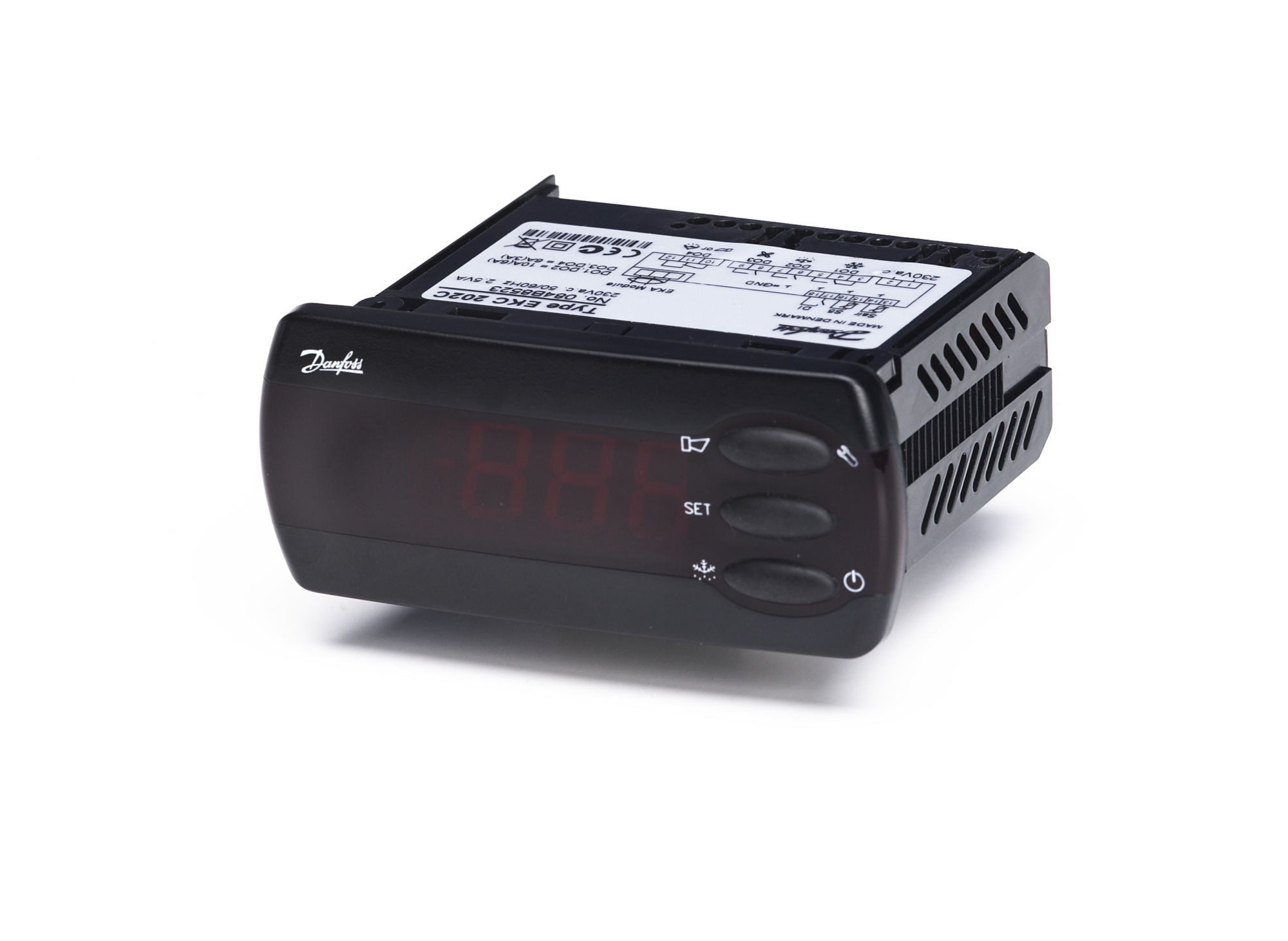

Danfoss 084B8623 - Refrig appliance control (TXV), EKC 202C
- Function: 4 Outputs,2 Temp.Sensors, DI
- Supply voltage [V] AC: 230
- Communication type: Optional MODBUS; Optional LON,
- Packing format: Industrial pack
- Quantity per packing format: 30
Product details
| Application area | Refrigeration control | |
| Approval | C-TICK; CE; EAC; Intertek Semco; cURus | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Communication type | Optional LON,; Optional MODBUS | |
| Controller type | Refrig. Controller (Temp) | |
| Display on front | Yes | |
| EEE category | 5 small equipment (any external dimension 50 cm) | |
| EU RoHS compliance | Out of scope | |
| Frequency [Hz] | 50/60 Hz | |
| Function | 4 Outputs,2 Temp.Sensors, DI | |
| Further information | Without connections plugs | |
| Identical product | 084B8523 | |
| In scope of WEEE | Yes | |
| Number of Compressors max. | 1 pc | |
| Number of Evaporators max. | 1 pc | |
| Other RoHS documentation | EAEU RoHS | |
| Packing format | Industrial pack | |
| Power consumption [VA] | 2.5 VA | |
| Product accessories | Electron. control accessories | |
| Product group | Evaporator and room control | |
| Product Name Description | Refrig appliance control (TXV) | |
| Quantity per packing format | 30 pc | |
| REACH Candidate List substances | No | |
| Serviceable | No | |
| Supply voltage [V] AC | 230 V | |
| Temp. sensor support | NTC-M2020; PTC 1000; Pt 1000 | |
| Type | EKC 202C | |
| UK RoHS compliance | Out of scope | |
| UL evaluated | Yes |
Technical data
| Product type | Evaporator and room control | |
| Net weight | 0.182 kg | |
| Gross weight | 0.196 kg | |
| Packed volume | 0.4 L | |
| EAN | 5702428089241 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 084B8623 are available on request. Ask for documents →
