Home/Sensing Solutions/Temperature sensors and accessories/Spare parts and accessories for temperature sensors/ 084N2040
084N2040

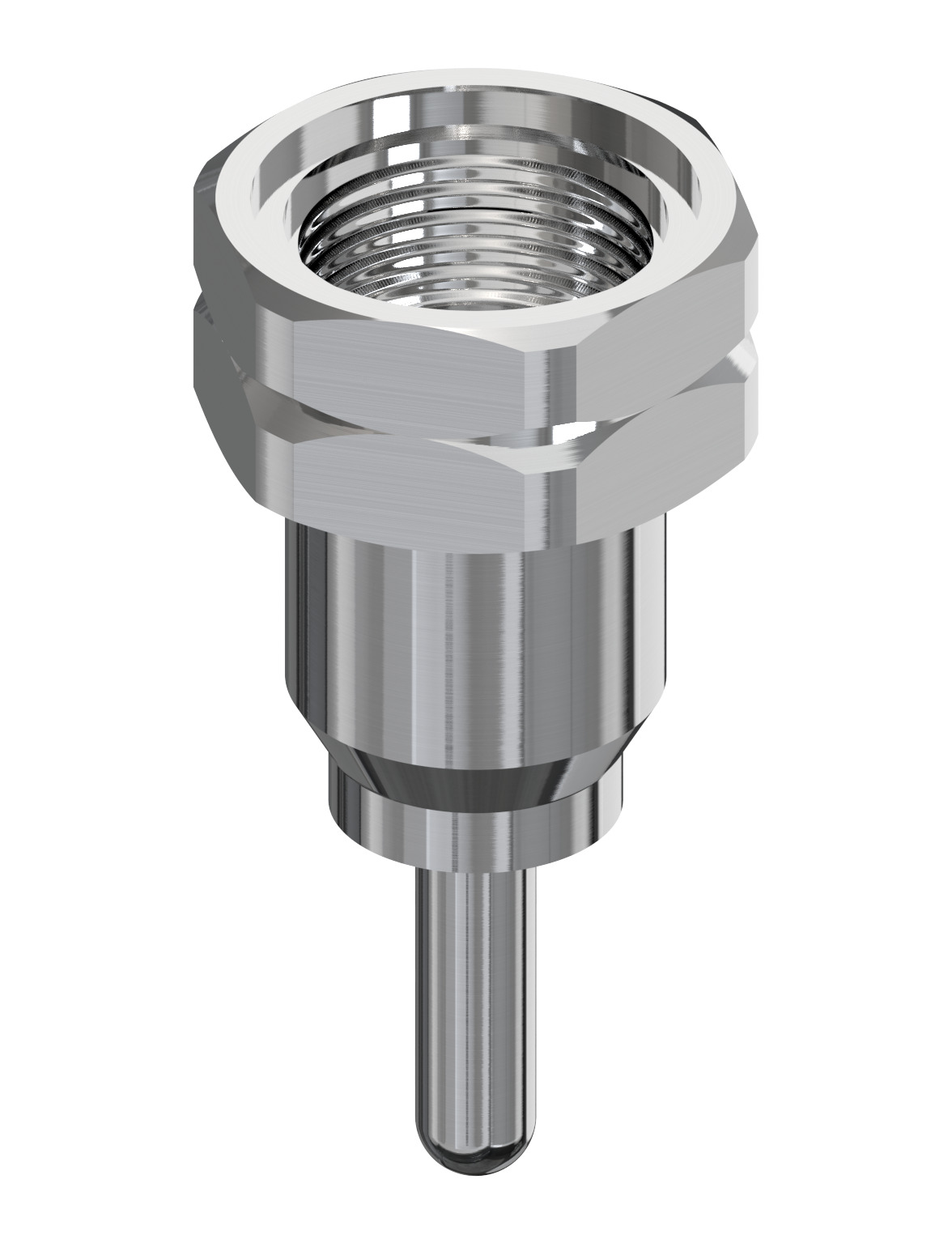

Danfoss 084N2040 - Sensor pocket, AKS 120
- Protection tube diameter [mm]: 7.0
- Process connection type: Ø, 22
- Protection tube material: Stainless steel
Product details
| CE evaluated | Yes | |
| Comments | PROTECTION TUBE | |
| Connection type | Weld | |
| Contain batteries | No | |
| EEE category | 5 small equipment (any external dimension 50 cm) | |
| EU RoHS compliance | Yes | |
| In scope of WEEE | Yes | |
| Packing format | Multi pack | |
| Process connection notes | Weldable | |
| Process connection size | 22 | |
| Process connection type | Ø | |
| Product group | Accessories, sensors | |
| Product Name Description | Sensor pocket | |
| Protection tube diameter [in] | 0.28 in | |
| Protection tube diameter [mm] | 7 mm | |
| Protection tube length [in] | 1.97 in | |
| Protection tube length [mm] | 50 mm | |
| Protection tube material | Stainless steel | |
| Quantity per packing format | 12 pc | |
| REACH Candidate List substances | No | |
| Type | AKS 120 |
Technical data
| Product type | Accessories, sensors | |
| Net weight | 0.117 kg | |
| Gross weight | 0.139 kg | |
| Packed volume | 0.6 L | |
| EAN | 5702422015413 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 084N2040 are available on request. Ask for documents →
