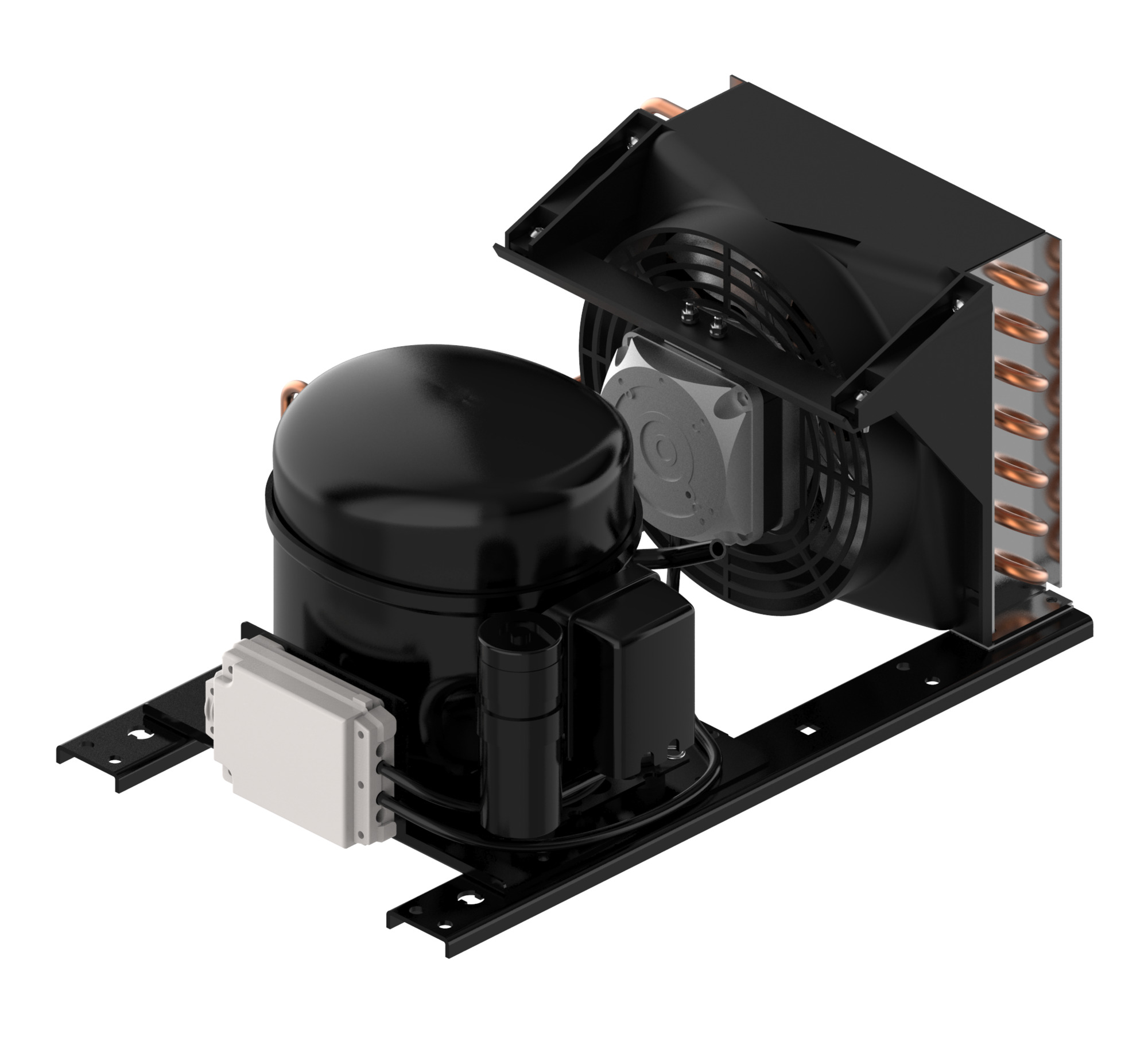

Danfoss 114F1508 - Optyma™, TL4CNXN0

Segment usage: Low Back Pressure; Universal; Refrigeration MT; Medium Back Pressure
Refrigerants: R290
Compressor power supply [V]: 230/1/50

Product details

Applications		LBP
China RoHS compliance		Out of scope
Compressor power supply [V]		230/1/50
Condenser type		BG_1
Configuration code		Single
Contain batteries		No
Description		TL4CNXN0
Electrical code		G
EU RoHS compliance		Out of scope
Family		Optyma™
Fan current @ 50Hz [A]		0.19 A
Fan current @ 60Hz [A]		0.17 A
Fan power consumption @ 50Hz [W]		27 W
Fan power consumption @ 60Hz [W]		24 W
Fan power supply [V/Ph/Hz]		230/1/50
Frequency [Hz]		50 Hz
High value of nominal voltage at 60Hz [V]		253 V
Length [mm]		410 mm
Liquid line connection [in]		1/4 in
Low value of voltage range at 60Hz [V]		207 V
Model number		TL4CNXN0
No. of phases (compressor)		1
No. of phases (fan)		1
Number of fans		1
Phase		1
Product group		Condensing Units
Product Name Description		Bare unit
REACH Candidate List substances		No
Refrigerants		R290
Segment usage		Low Back Pressure; Medium Back Pressure; Universal; Refrigeration MT
Speed Platform		Fixed-speed
Suction connection size [in]		1/4 in
Technology		Condensing units Reciprocating
Total height [mm]		197 mm
Type		Optyma™ N0
UK RoHS compliance		Out of scope
Version		N0
Voltage 50Hz [V]		207 V
Voltage 50Hz [V] [Max]		253 V
Width [mm]		273 mm

Operating guides, design guides, certificates and CAD drawings for 114F1508 are available on request. Ask for documents →
