114G0503

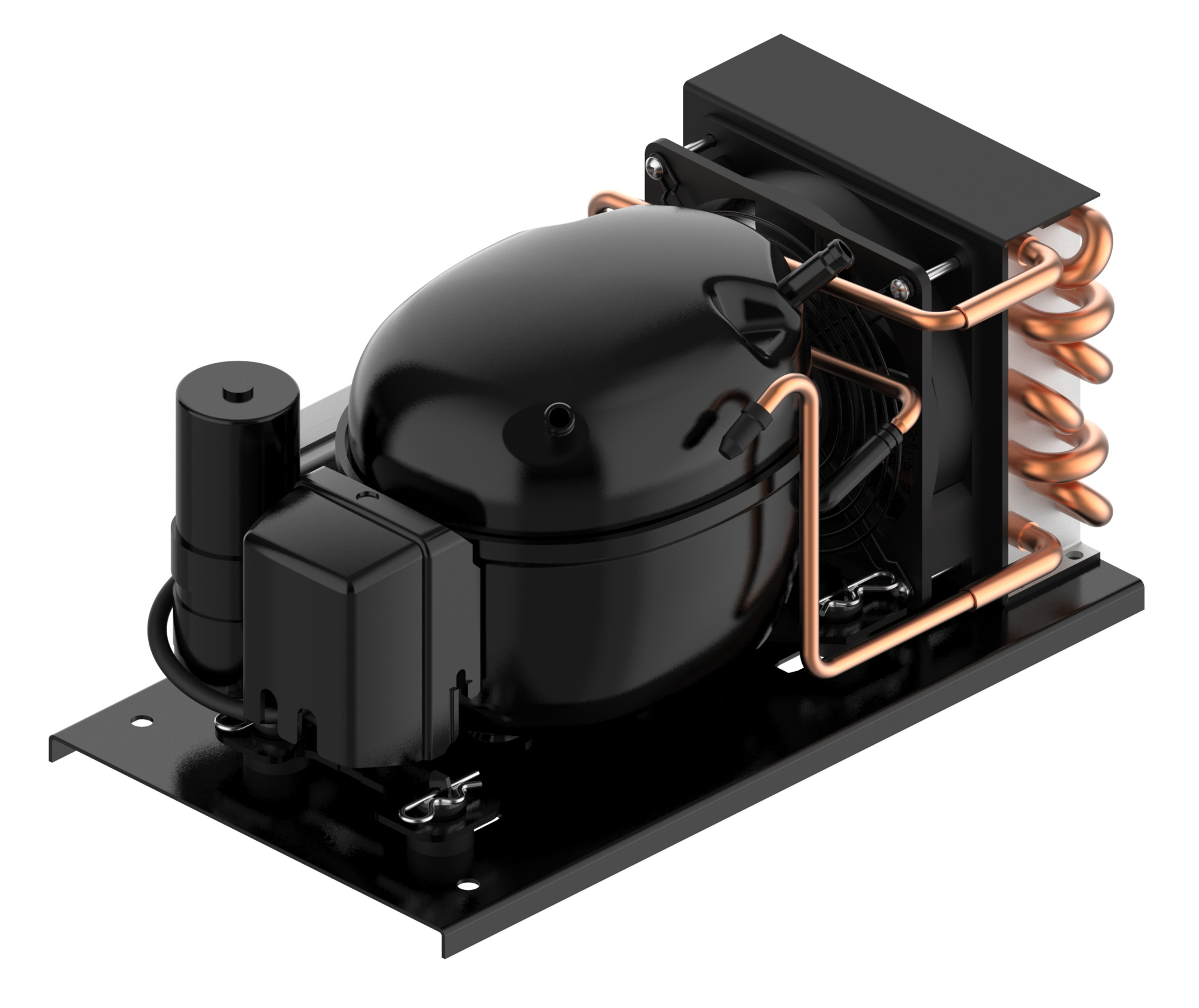

Danfoss 114G0503 - Optyma™, PL35GXN0
- Segment usage: Medium Back Pressure
- Refrigerants: R134a
- Compressor power supply [V]: 230/1/50
Product details
| Applications | HBP; MBP | |
| Capacity control | Fixed speed | |
| China RoHS compliance | Out of scope | |
| Compressor model | PL35G | |
| Compressor power supply [V] | 230/1/50 | |
| Condenser type | BG_0 | |
| Contain batteries | No | |
| Description | PL35GXN0 | |
| Electrical code | G | |
| EU RoHS compliance | Out of scope | |
| Family | Optyma™ | |
| Fan current @ 50Hz [A] | 0.08 A | |
| Fan power consumption @ 50Hz [W] | 14 W | |
| Fan power supply [V/Ph/Hz] | 230/1/50 | |
| Frequency [Hz] | 50 Hz | |
| High value of nominal voltage at 60Hz [V] | 240 V | |
| In scope of WEEE | Yes | |
| Length [mm] | 300 mm | |
| Low value of voltage range at 60Hz [V] | 220 V | |
| Model number | PL35GXN0 | |
| No. of phases (compressor) | 1 | |
| No. of phases (fan) | 1 | |
| Number of fans | 1 | |
| Phase | 1 | |
| Product group | Condensing Units | |
| Product Name Description | Bare unit | |
| REACH Candidate List substances | No | |
| Refrigerants | R134a | |
| Segment usage | Medium Back Pressure | |
| Speed Platform | Fixed-speed | |
| Technology | Reciprocating | |
| Total height [mm] | 150 mm | |
| Type | Optyma™ N0 | |
| UK RoHS compliance | Out of scope | |
| Version | N0 | |
| Width [mm] | 170 mm |
Technical data
| Product type | Condensing Units | |
| Net weight | 7.664 kg | |
| Gross weight | 7.664 kg | |
| Packed volume | 18.5 L | |
| EAN | 5702428570053 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 114G0503 are available on request. Ask for documents →
