114G1706

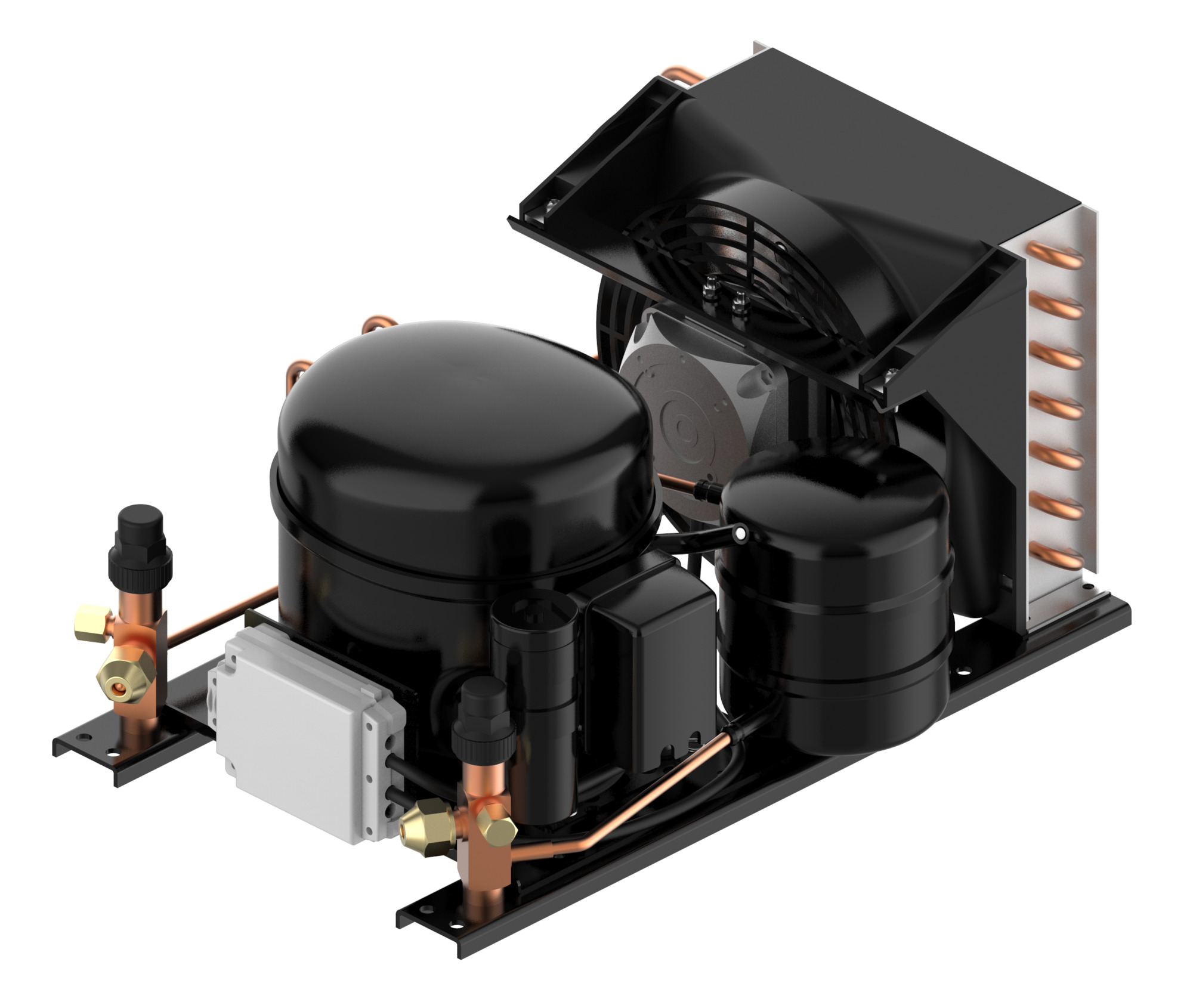

Danfoss 114G1706 - Optyma™, TL4GXT2
- Segment usage: Low Back Pressure; Universal; Medium Back Pressure
- Refrigerants: R134a
- Compressor power supply [V]: 230/1/50
Product details
| Applications | HBP; LBP; MBP | |
| Approval | CE; EAC | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Compressor model | TL4G | |
| Compressor power supply [V] | 230/1/50 | |
| Condenser type | BG_1 | |
| Contain batteries | No | |
| Description | TL4GXT2 | |
| Electrical code | G | |
| EU RoHS compliance | Out of scope | |
| Family | Optyma™ | |
| Fan current @ 50Hz [A] | 0.19 A | |
| Fan current @ 60Hz [A] | 0.17 A | |
| Fan power consumption @ 50Hz [W] | 27 W | |
| Fan power consumption @ 60Hz [W] | 24 W | |
| Fan power supply [V/Ph/Hz] | 230/1/50 | |
| Frequency [Hz] | 50 Hz | |
| High value of nominal voltage at 60Hz [V] | 240 V | |
| Length [mm] | 424 mm | |
| Low value of voltage range at 60Hz [V] | 220 V | |
| Model number | TL4GXT2 | |
| No. of phases (compressor) | 1 | |
| No. of phases (fan) | 1 | |
| Number of fans | 1 | |
| Phase | 1 | |
| Product group | Condensing Units | |
| Product Name Description | Bare unit | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R134a | |
| SCIP dossier product name | OPTYMA A00 A04 A09 A10 A11 | |
| Segment usage | Low Back Pressure; Medium Back Pressure; Universal | |
| Speed Platform | Fixed-speed | |
| Technology | Reciprocating | |
| Total height [mm] | 197 mm | |
| Type | Optyma™ T2 | |
| UK RoHS compliance | Out of scope | |
| Version | T2 | |
| Width [mm] | 289 mm |
Technical data
| Product type | Condensing Units | |
| Net weight | 14.844 kg | |
| Gross weight | 14.844 kg | |
| Packed volume | 48.9 L | |
| EAN | 5702428569972 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 114G1706 are available on request. Ask for documents →
