114X1304

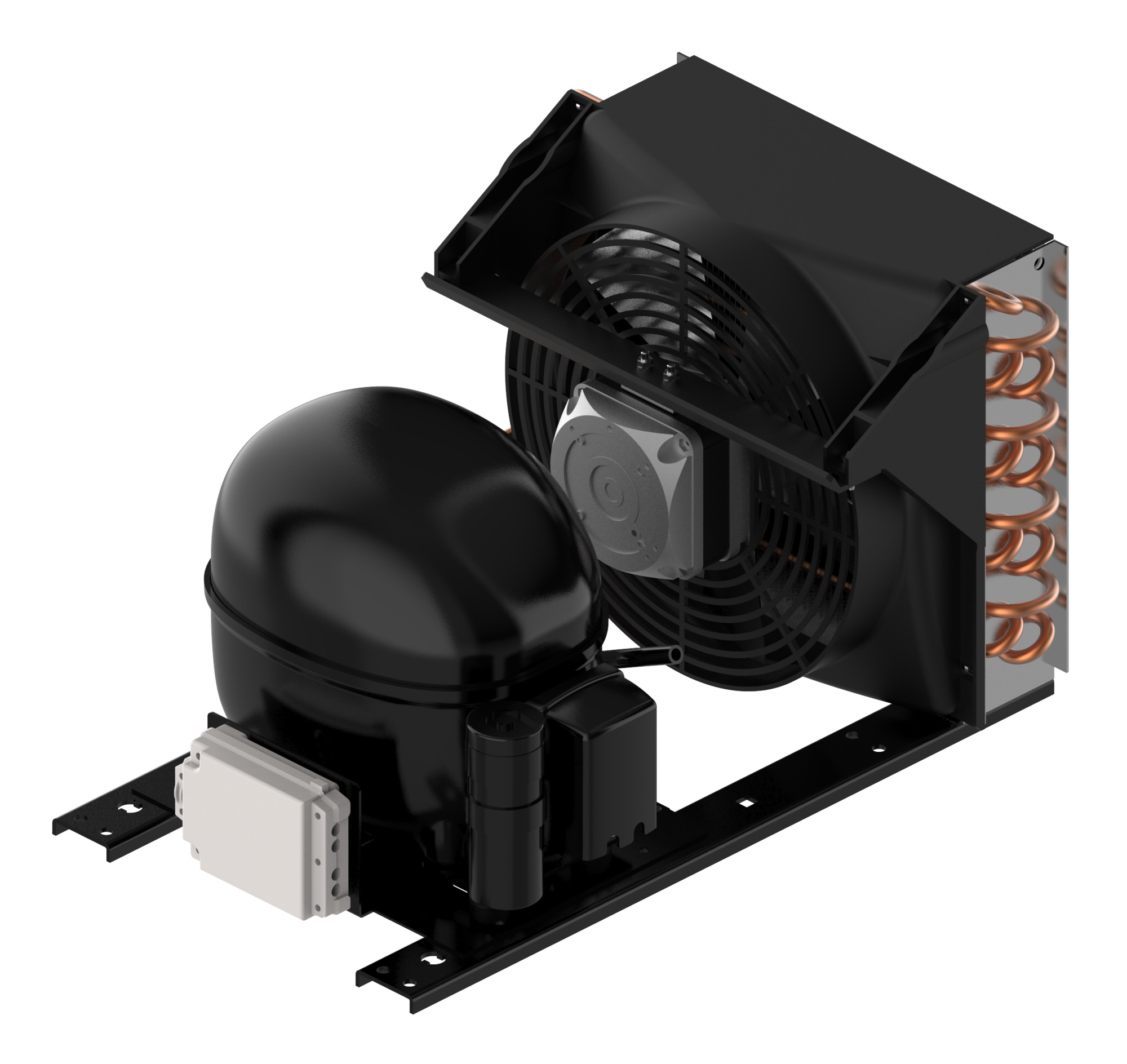

Danfoss 114X1304 - Optyma™, OP-LCHC008
- Segment usage: Low Back Pressure
- Refrigerants: R404A; R452A
- Compressor power supply [V]: 230/1/50
Product details
| Applications | LBP | |
| Approval | CE; EAC | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Compressor model | NL8.4CLX | |
| Compressor power supply [V] | 230/1/50 | |
| Condenser type | BG_3 | |
| Contain batteries | No | |
| Description | OP-LCHC008NLA00G | |
| Electrical code | G | |
| EU RoHS compliance | Out of scope | |
| Family | Optyma™ | |
| Fan current @ 50Hz [A] | 0.25 A | |
| Fan current @ 60Hz [A] | 0.22 A | |
| Fan power consumption @ 50Hz [W] | 36 W | |
| Fan power consumption @ 60Hz [W] | 34 W | |
| Fan power supply [V/Ph/Hz] | 230/1/50 | |
| Frequency [Hz] | 50 Hz | |
| High value of nominal voltage at 60Hz [V] | 240 V | |
| Low value of voltage range at 60Hz [V] | 220 V | |
| Model number | OP-LCHC008 | |
| No. of phases (compressor) | 1 | |
| No. of phases (fan) | 1 | |
| Number of fans | 1 | |
| Phase | 1 | |
| Product group | Condensing Units | |
| Product Name Description | Bare unit | |
| REACH Candidate List substances | No | |
| Refrigerants | R404A; R452A | |
| Segment usage | Low Back Pressure | |
| Speed Platform | Fixed-speed | |
| Technology | Reciprocating | |
| Type | Optyma™ A00 | |
| UK RoHS compliance | Out of scope | |
| Version | A00 | |
| Voltage 50Hz [V] | 220 V | |
| Voltage 50Hz [V] [Max] | 240 V |
Technical data
| Product type | Condensing Units | |
| Net weight | 15.5 kg | |
| Gross weight | 17.5 kg | |
| Packed volume | 58.1 L | |
| EAN | 5702428565639 | |
