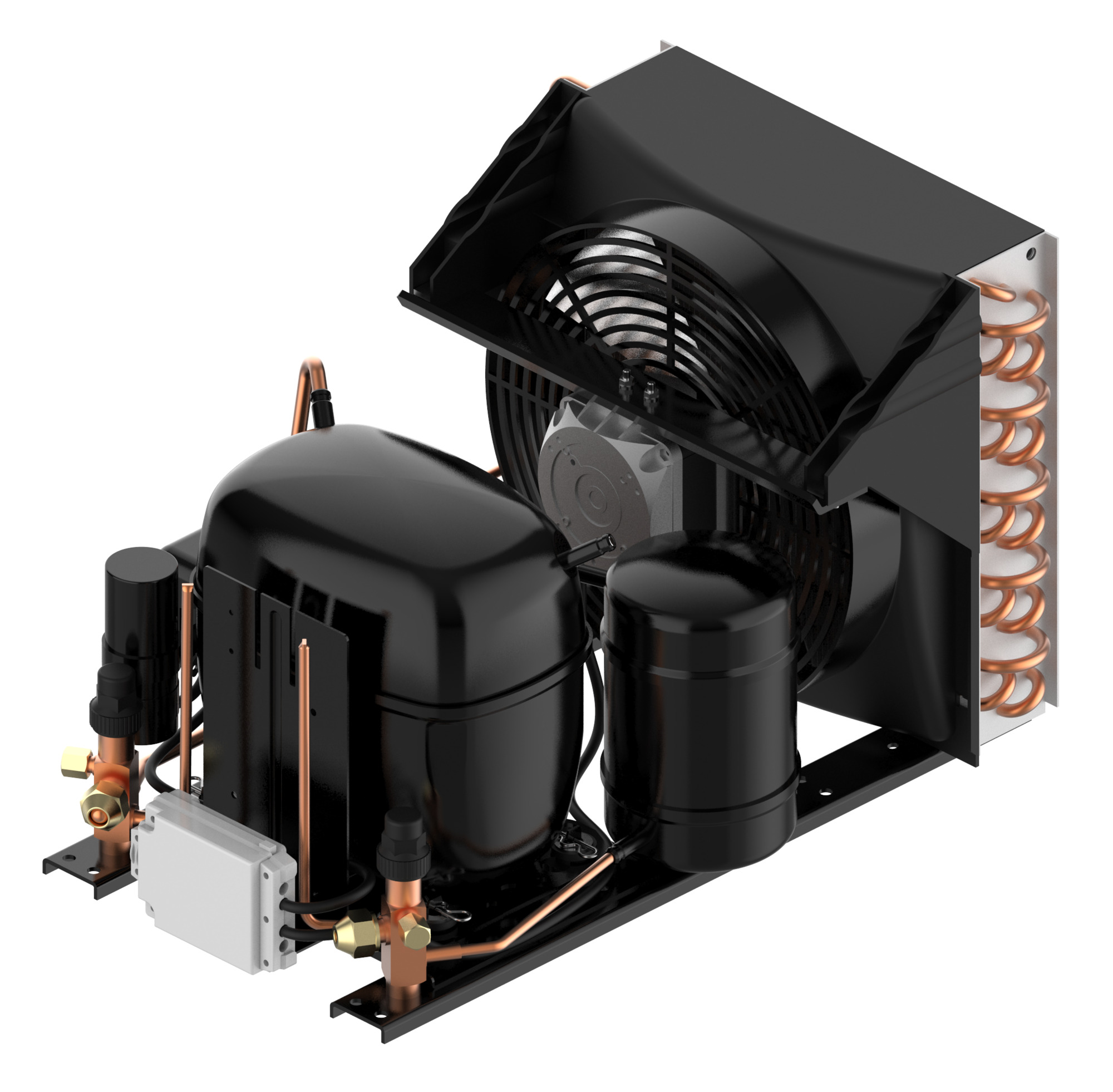

Danfoss 114X2541 - Optyma™, OP-MCHC012

Product details

Air flow @ 50Hz [m³/h]		800 m³/h
Applications		MBP
Approval		EAC
China RoHS compliance		Out of scope
Compressor model		SC12MLX
Compressor power supply [V]		230/1/50
Condenser type		BG_4/5
Contain batteries		No
Description		OP-MCHC012SCA01G
Electrical code		G
EU RoHS compliance		Out of scope
Family		Optyma™
Fan blade size [mm]		254 mm
Fan current @ 50Hz [A]		0.39 A
Fan current @ 60Hz [A]		0.35 A
Fan power consumption @ 50Hz [W]		55 W
Fan power consumption @ 60Hz [W]		53 W
Fan power output @ 50Hz [W]		16 W
Fan power output @ 60Hz [W]		16 W
Fan power supply [V/Ph/Hz]		230/1/50
Fan voltage @ 50Hz (max) [V] [Max]		240 V
Fan voltage @ 50Hz (max) [V] [Min]		220 V
Fan voltage @ 60Hz (max) [V] [Max]		240 V
Fan voltage @ 60Hz (max) [V] [Min]		220 V
Frequency [Hz]		50 Hz
High value of nominal voltage at 60Hz [V]		240 V
Length [mm]		487 mm
Liquid line connection [in]		1/4 in
Low value of voltage range at 60Hz [V]		220 V
Model number		OP-MCHC012
No. of phases (compressor)		1
No. of phases (fan)		1
Number of fans		1
Phase		1
Product group		Condensing Units
Product Name Description		Bare unit
REACH Candidate List substances		No
Receiver approval		UL
Refrigerants		R404A; R507A
Replacement code		114X0407
Segment usage		Medium Back Pressure
Sound power @ 50Hz [db(A)]		64 dBA
Speed Platform		Fixed-speed
Suction connection size [in]		5/16 in
Technology		Reciprocating
Total height [mm]		296 mm
Type		Optyma™ A01
UK RoHS compliance		Out of scope
Version		A01
Voltage 50Hz [V]		220 V
Voltage 50Hz [V] [Max]		240 V
Width [mm]		331 mm

Operating guides, design guides, certificates and CAD drawings for 114X2541 are available on request. Ask for documents →
