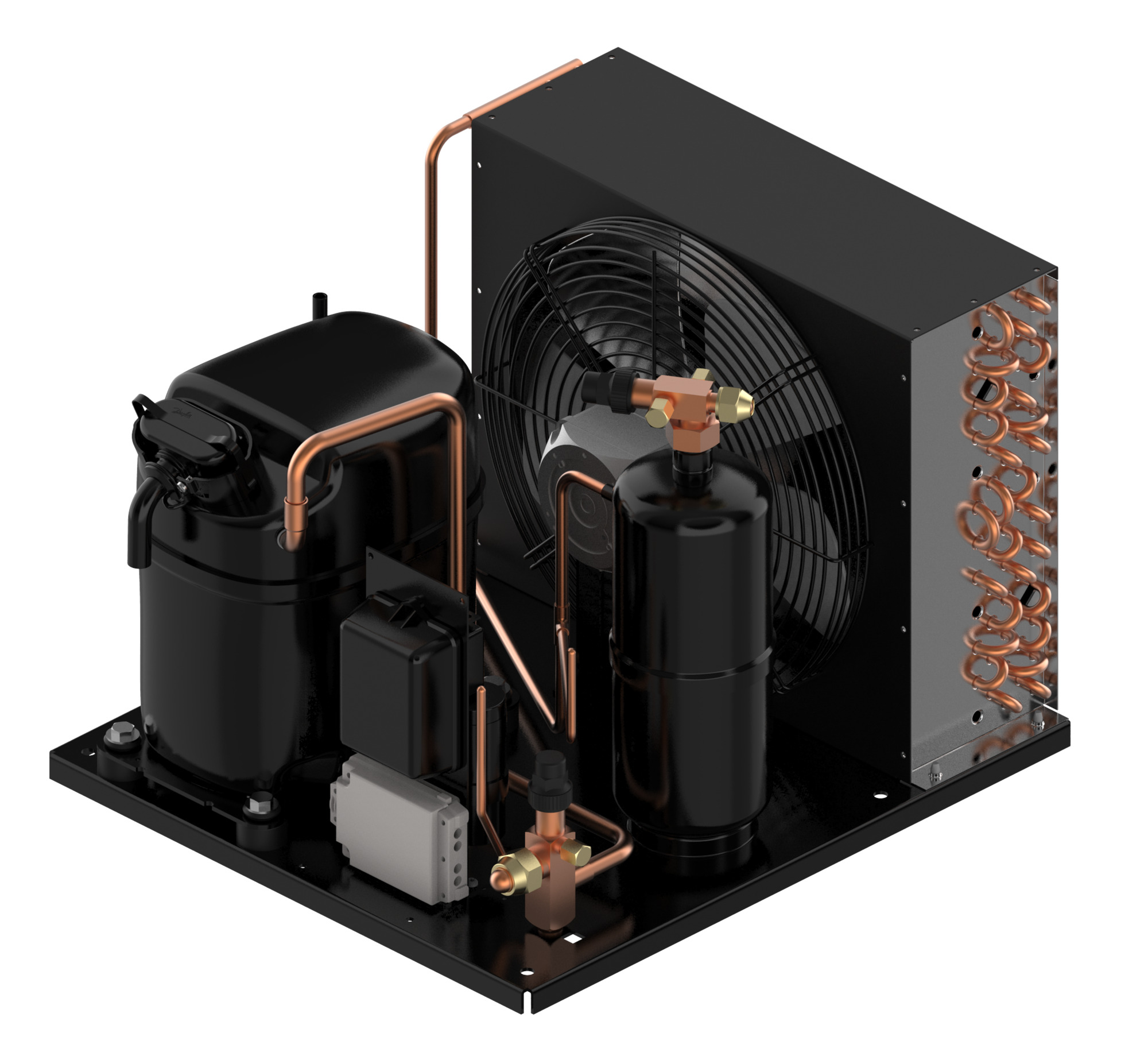

Danfoss 114X2765 - Optyma™, OP-MCHC021

Product details

Air flow @ 50Hz [m³/h]		960 m³/h
Applications		MBP
Approval		CE; EAC
CE evaluated		Yes
China RoHS compliance		Out of scope
Compressor model		GS21MLX
Compressor power supply [V]		230/1/50
Condenser type		BG_7
Contain batteries		No
Description		OP-MCHC021GSA01G
Electrical code		G
EU RoHS compliance		Out of scope
Family		Optyma™
Fan blade size [mm]		300 mm
Fan current @ 50Hz [A]		0.75 A
Fan current @ 60Hz [A]		0.55 A
Fan power consumption @ 50Hz [W]		86 W
Fan power consumption @ 60Hz [W]		80 W
Fan power output @ 50Hz [W]		23 W
Fan power output @ 60Hz [W]		25 W
Fan power supply [V/Ph/Hz]		230/1/50
Fan voltage @ 50Hz (max) [V] [Max]		240 V
Fan voltage @ 50Hz (max) [V] [Min]		220 V
Fan voltage @ 60Hz (max) [V] [Max]		240 V
Fan voltage @ 60Hz (max) [V] [Min]		220 V
Frequency [Hz]		50 Hz
High value of nominal voltage at 60Hz [V]		240 V
Liquid line connection [in]		3/8 in
Low value of voltage range at 60Hz [V]		220 V
Model number		OP-MCHC021
No. of phases (compressor)		1
No. of phases (fan)		1
Number of fans		1
Phase		1
Product group		Condensing Units
Product Name Description		Bare unit
REACH Candidate List substances		No
Receiver approval		UL
Refrigerants		R404A; R452A
Segment usage		Medium Back Pressure
Sound power @ 50Hz [db(A)]		70 dBA
Speed Platform		Fixed-speed
Suction connection size [in]		1/2 in
Technology		Reciprocating
Type		Optyma™ A01
UK RoHS compliance		Out of scope
Version		A01
Voltage 50Hz [V]		220 V
Voltage 50Hz [V] [Max]		240 V

Operating guides, design guides, certificates and CAD drawings for 114X2765 are available on request. Ask for documents →
