114X6003

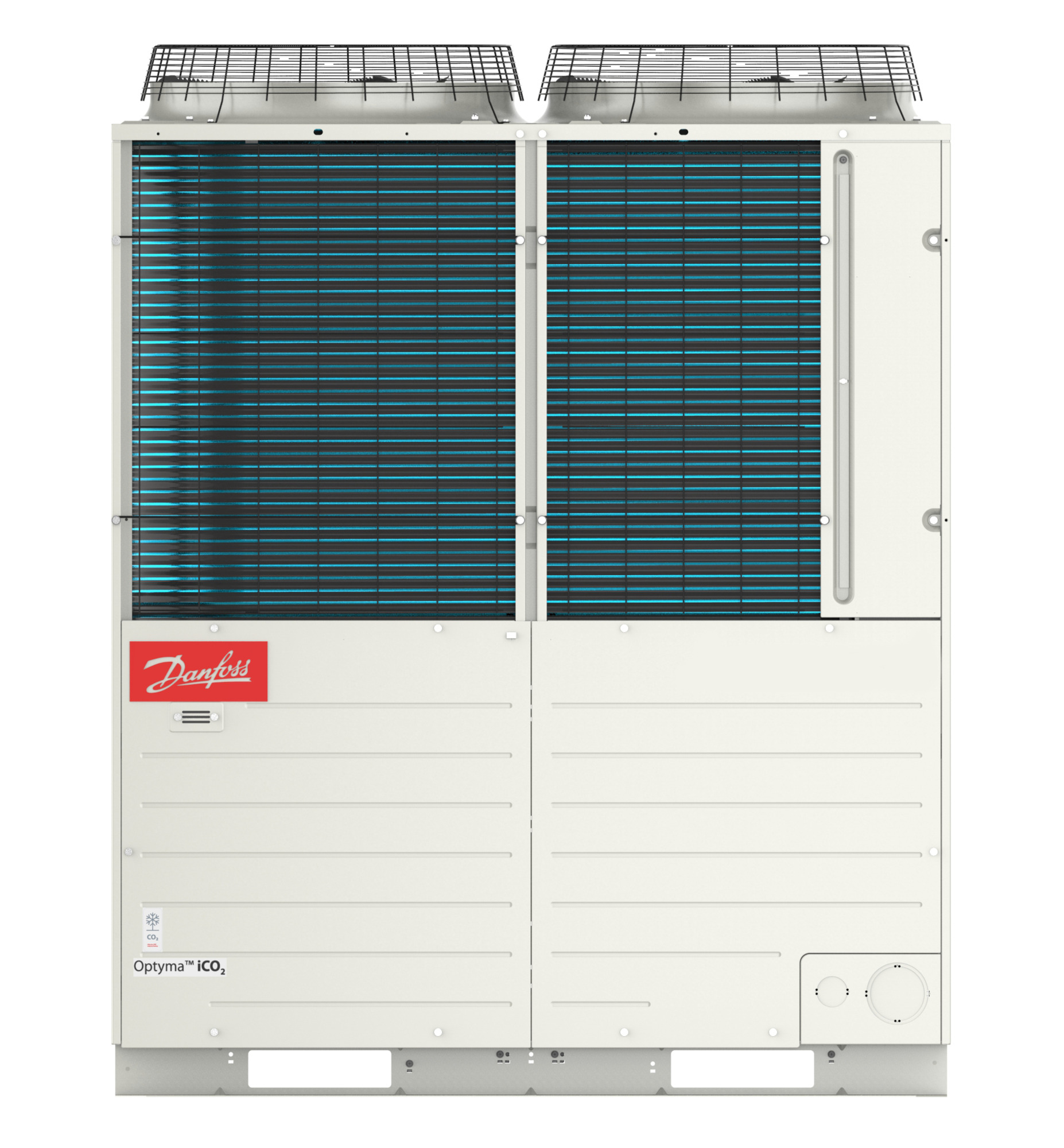

Danfoss 114X6003 - Optyma™ iCO2, OP-UPAC015COP04E
- Segment usage: Refrigeration LT; Refrigeration MT
- Refrigerants: R744
- Compressor power supply [V]: 400/3/50
- Mandatory accessory: Module controller assembly (118U5498) is not included with the unit and must be ordered separately. Oil tank (LCA006A008) upon oil charge calculation method given inside application; Note that the use of AK-CC55 single coil and AKVP pulsating expansion valve are mandatories
Product details
| Accumulator volume [L] | 7.2 L | |
| Air flow @ 50Hz [m³/h] | 15120 m³/h | |
| Applications | HBP; LBP; MBP | |
| Approval | CE; UKCA | |
| Capacity control | Inverter | |
| CE evaluated | Yes | |
| China RoHS compliance | Out of scope | |
| Compressor model | VCO015T4E | |
| Compressor power supply [V] | 400/3/50 | |
| Connection type | Solder | |
| Contain batteries | No | |
| Description | OP-UPAC015COP04E | |
| Design Pressure High [bar] | 140 bar | |
| Design Pressure Low [bar] | 80 bar | |
| Electrical code | E | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Family | Optyma™ iCO2 | |
| Fan blade size [mm] | 572 mm | |
| Fan cowl/grill type | Grill | |
| Fan current @ 50Hz [A] | 3.65 A | |
| Fan diameter [mm] | 570 mm | |
| Fan power output @ 50Hz [W] | 386 W | |
| Fan power supply [V/Ph/Hz] | 280/339V DC | |
| Frequency [Hz] | 50 Hz | |
| Gas cooler internal volume [L] | 6.1 L | |
| High value of nominal voltage at 50Hz [V] | 415 V | |
| Length [mm] | 1350 mm | |
| Liquid line connection [in] | 1/2 in | |
| Low value of nominal voltage at 50Hz [V] | 400 V | |
| Mandatory accessory | Module controller assembly (118U5498) is not included with the unit and must be ordered separately. Oil tank (LCA006A008) upon oil charge calculation method given inside application; Note that the use of AK-CC55 single coil and AKVP pulsating expansion valve are mandatories | |
| Max pressure (PS) - high side | 140 bar | |
| Max pressure (PS) - low side | 80 bar | |
| MCC | 19 A | |
| Min fuse rating [A] | 25 A | |
| Model number | OP-UPAC015COP04E | |
| No. of phases (compressor) | 3 | |
| Number of fans | 2 | |
| Number of receivers | 2 | |
| Oil separator volume [L] | 0.87 L | |
| Oil type | Diamond freeze MA68 | |
| PED category | II | |
| Phase | 3 | |
| Product group | Condensing Units | |
| Product Name Description | Package unit | |
| Receiver approval | CE; EAC | |
| Receiver volume [L] | 7.6 L | |
| Refrigerants | R744 | |
| RLA | 16.5 A | |
| Segment usage | Refrigeration LT; Refrigeration MT | |
| Sound pressure level 50Hz (@1 m distance) [db(A)] | 62 dBA | |
| Sound pressure level 50Hz (@10 m distance) [db(A)] | 42 dBA | |
| Suction connection size [in] | 3/4 in | |
| Total height [mm] | 1692 mm | |
| TS max | 43 °C | |
| TS min | -20 °C | |
| Type | Optyma™ iCO2 P04 | |
| UK RoHS compliance | Yes | |
| Version | P04 | |
| Voltage 50Hz [V] | 400 V | |
| Voltage 50Hz [V] [Max] | 415 V | |
| Width [mm] | 764 mm |
Technical data
| Product type | Condensing Units | |
| Net weight | 340 kg | |
| Gross weight | 360 kg | |
| Packed volume | 1744 L | |
| EAN | 5702424547202 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 114X6003 are available on request. Ask for documents →
