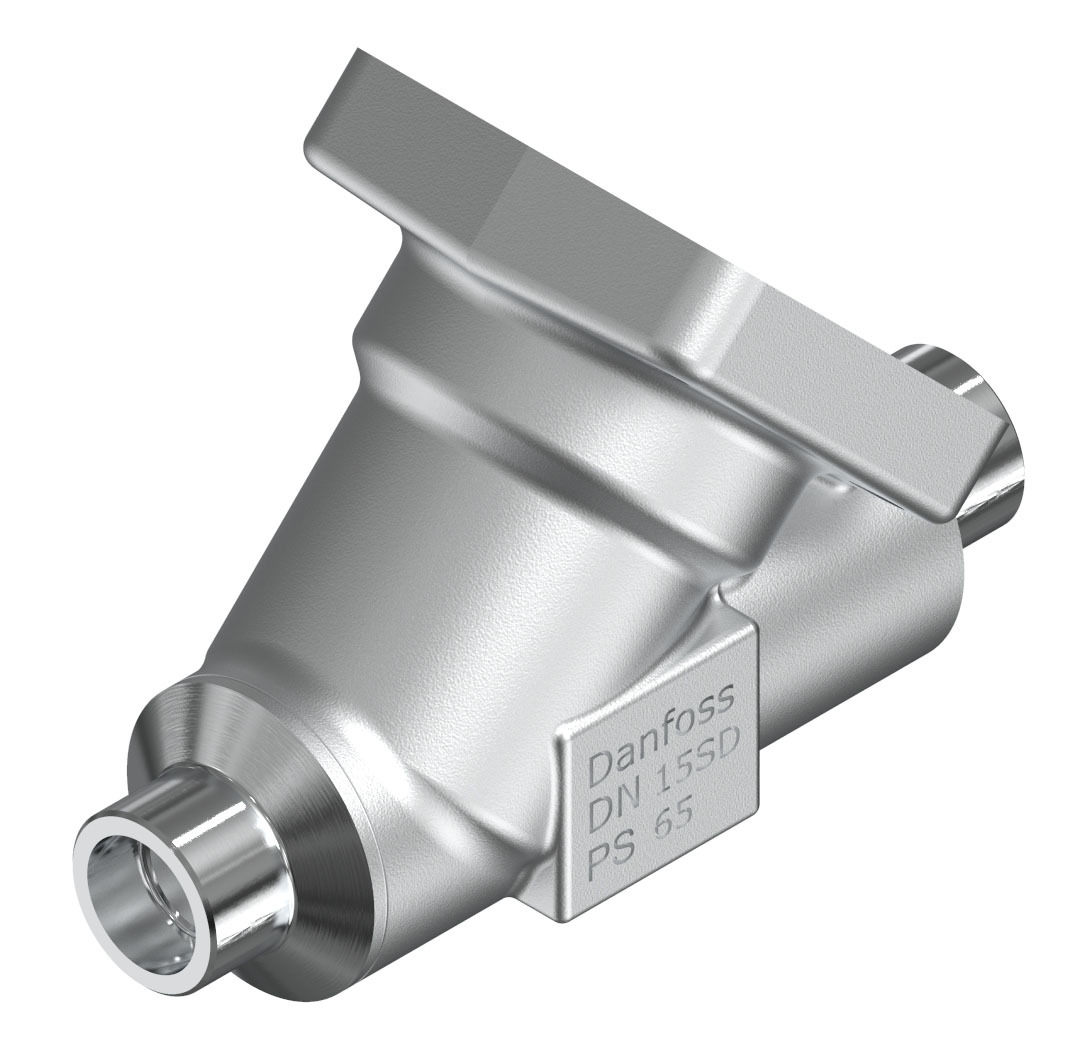

Danfoss 148B6745 - Multifunction valve body, SVL 15, SVL Flexline

Product details

Approval		CE; UKCA
Body material		Steel
Brand		SVL Flexline
CE evaluated		Yes
China RoHS compliance		Out of scope
Connection material		Steel
Connection standard		EN 1254-5
Contain batteries		No
Direction		Straightway
EU RoHS compliance		Out of scope
Flow direction		Bi-flow
Flow direction indicator		Embossed 1-way arrow
Fluid Group		1
Inlet connection size [mm]		16 mm
Inlet connection type		Solder
Max. Working Pressure [bar]		65 bar
Max. Working Pressure [psig]		943 psig
Outlet connection size [mm]		16 mm
Outlet connection type		Solder
Packing format		Single pack
Parts Program name		SVA-S / SVA-L
PED category		Art. 3, par. 3
Product accessories		SVL Flexline accessories
Product description		Valve house
Product group		Multifunction valves
Product Name Description		Multifunction valve body
Quantity per packing format		1 pc
Refrigerants		R515A; R113; R114; R1150; R1233zd(E); R1234yf; R1234ze(E); R125; R1270; R1336mzz(Z); R134a; R152a; R170; R22; R227ea; R23; R236fa; R245fa; R290; R32; R401A; R402A; R402B; R404A; R407A; R407B; R407C; R407F; R407H; R408A; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R427A; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R503; R507A; R512A; R513A; R513B; R515B; R516A; R600; R600a; R717; R744; RE170; R508B
Serviceable		SVL Flexline spare parts
Temperature range [°C] [max]		150 °C
Temperature range [°C] [min]		-60 °C
Temperature range [°F] [max]		302 °F
Temperature range [°F] [min]		-76 °F
Type		SVL 15
UK RoHS compliance		Out of scope
Used for product		SVL 15

Operating guides, design guides, certificates and CAD drawings for 148B6745 are available on request. Ask for documents →
