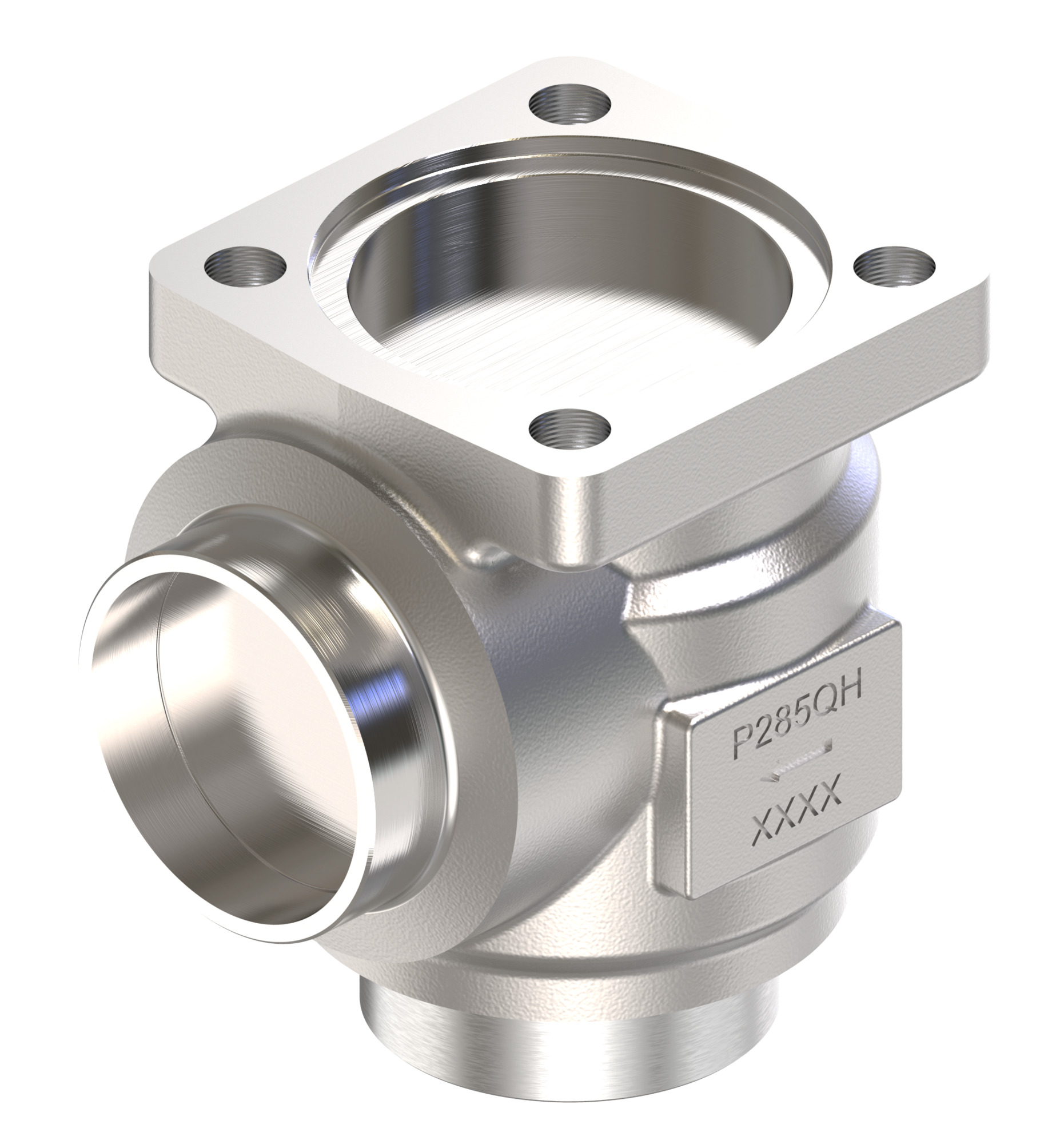

Danfoss Multifunction valve body, SVL-140B 50
148B6861

Danfoss 148B6861 - Multifunction valve body, SVL-140B 50

  • Parts Program name: FIA-140B; ICMTS; SVA-140B
  • Connection standard: EN 1254-5; ASME B16.50
  • Inlet connection type: Brazed
  • Outlet connection type: Brazed
  • Inlet connection size [mm]: 54.00
  • Outlet connection size [mm]: 54.0
Similar products

Product details

ApprovalCE; UKCA; C UL US LISTED
Body materialSteel
BrandSVL Flexline
CE evaluatedYes
Connection materialSteel
Connection standardEN 1254-5; ASME B16.50
Contain batteriesNo
DirectionAngleway
Flow directionSingle-flow
Flow direction indicatorEmbossed 1-way arrow
Fluid Group2
Inlet connection size [in]2 1/8 in
Inlet connection size [mm]54
Inlet connection typeBrazed
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Outlet connection size [in]2 1/8 in
Outlet connection size [mm]54
Outlet connection typeBrazed
Packing formatSingle pack
Parts Program nameFIA-140B; ICMTS; SVA-140B
PED categoryI
Product accessoriesSVL Flexline accessories
Product descriptionValve house
Product groupMultifunction valves
Product Name DescriptionMultifunction valve body
Quantity per packing format1 pc
RefrigerantsR744
ServiceableSVL Flexline spare parts
Temperature range [°C] [max]150 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]302 °F
Temperature range [°F] [min]-40 °F
TypeSVL-140B 50
UL evaluatedYes
Used for productICMTS 50; FIA-140B 50-65; SVA-140B 50-65

Technical data

Product typeMultifunction valves
Net weight2.7 kg
Gross weight3.15 kg
Packed volume6 L
EAN5715162515952
