148H3504

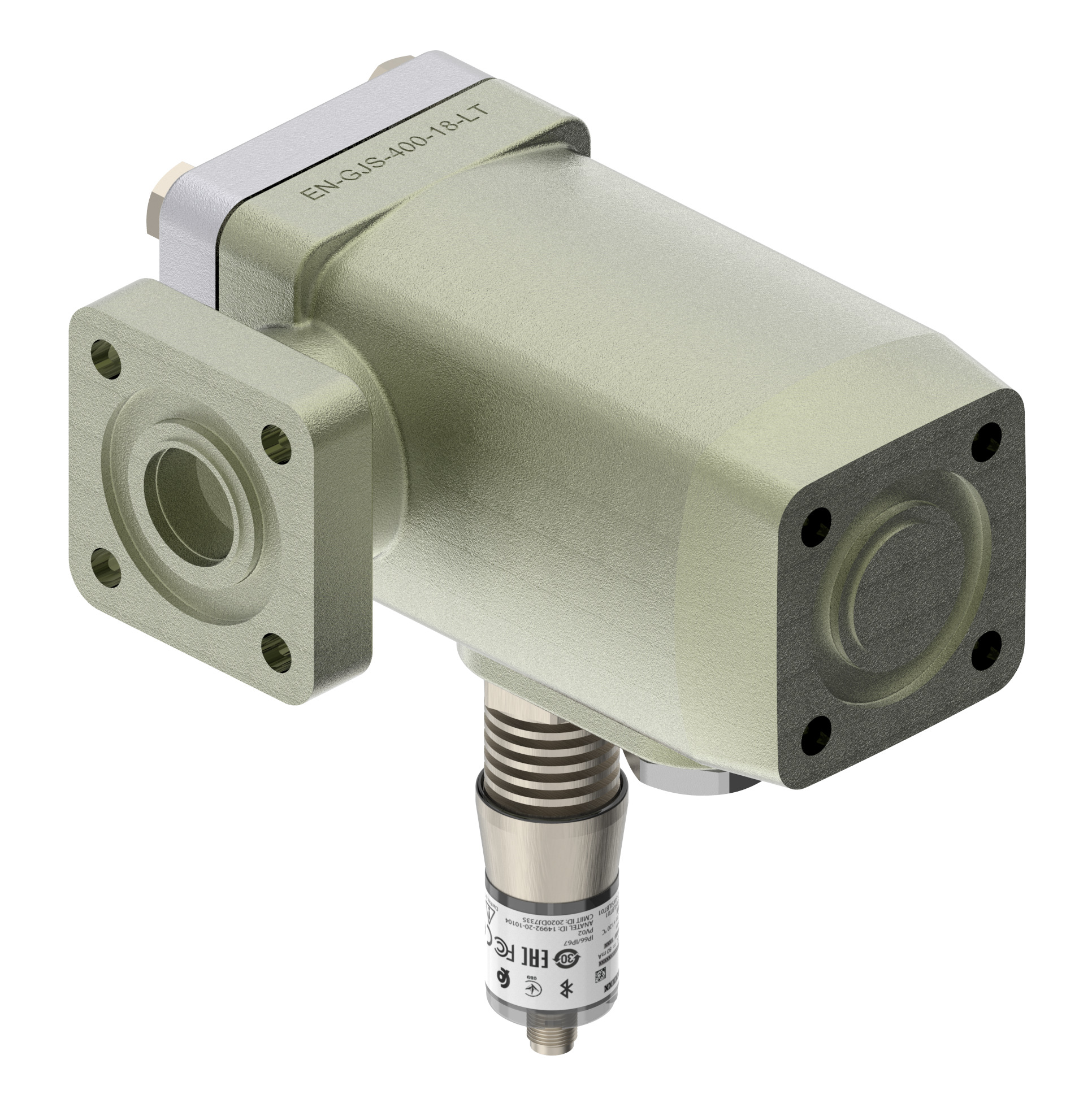

Danfoss 148H3504 - Liquid level switch, LLS/AKS 38 Retrofit, Butt weld, 1 in
- Connection type: Butt weld
- Connection size [in]: 1 in
- Enclosure rating IP: IP67
- Max. Working Pressure [bar]: 28.0
Product details
| Approval | CMIM; EAC; LLC CDC TYSK | |
| China RoHS compliance | Out of scope | |
| Connection size [in] | 1 in | |
| Connection standard | ASME B 36.10M SCHEDULE 80 | |
| Connection type | Butt weld | |
| Contain batteries | No | |
| Electrical connection size | Pg 11 | |
| Electrical connection standard | DIN 43650 | |
| Enclosure rating IP | IP67 | |
| EU RoHS compliance | Out of scope | |
| Fluid Group | 1; 2 | |
| Max. Working Pressure [bar] | 28 bar | |
| Max. Working Pressure [psig] | 406 psig | |
| Packing format | Single pack | |
| PED category | Art. 4, par. 3 | |
| Product group | Switches and thermostats | |
| Product Name Description | Liquid level switch | |
| Quantity per packing format | 1 pc | |
| Refrigerants | R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R507A; R717 | |
| Temperature range [°C] [max] | 65 °C | |
| Temperature range [°C] [min] | -50 °C | |
| Temperature range [°F] [max] | 149 °F | |
| Temperature range [°F] [min] | -58 °F | |
| Type | LLS/AKS 38 Retrofit | |
| UK RoHS compliance | Out of scope |
Technical data
| Product type | Switches and thermostats | |
| Net weight | 8.018 kg | |
| Gross weight | 8.939 kg | |
| Packed volume | 15.2 L | |
| EAN | 5702424285104 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 148H3504 are available on request. Ask for documents →
