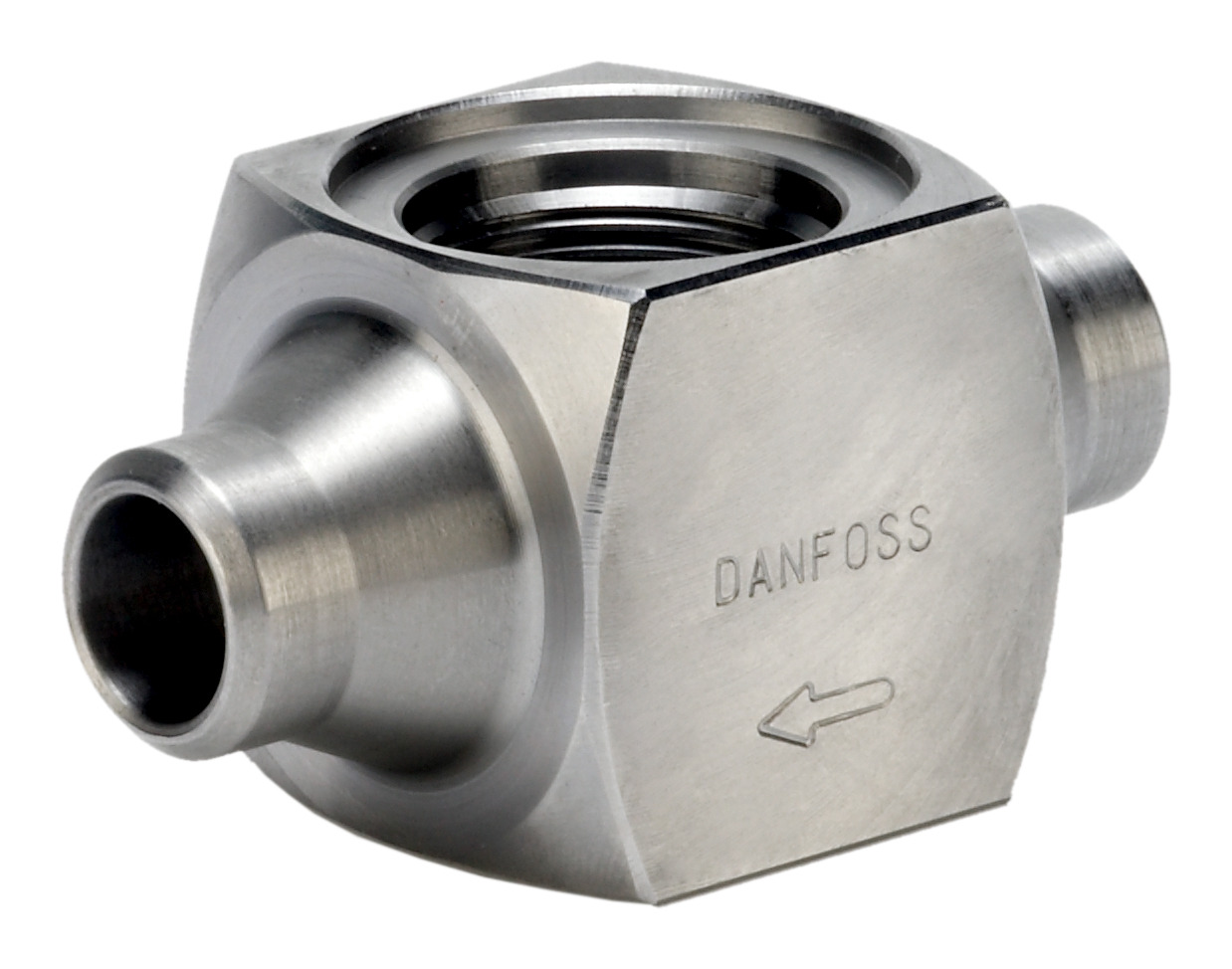

027F1047
Pilot Valve body, CVH, Butt weld, 3/8 in
Max. Working Pressure [bar]: 65 · Temperature range [°C]: -50 - 120 · Connection size [mm]: 10
All Components for Pilot operated servo valves
027F1160
Pilot Valve body, CVH, G, 1/4
Max. Working Pressure [bar]: 65 · Temperature range [°C]: -50 - 120 · Connection size [mm]: 13
027F1159
Pilot Valve body, CVH, NPT, 1/4 in
Max. Working Pressure [bar]: 65 · Temperature range [°C]: -50 - 120 · Connection size [mm]: 13
027F1091
Pilot Valve body, CVH, Socket weld, 1/2 in
Max. Working Pressure [bar]: 65 · Temperature range [°C]: -50 - 120 · Connection size [mm]: 15
027F1090
Pilot Valve body, CVH, Weld, 1/2 in
Max. Working Pressure [bar]: 65 · Temperature range [°C]: -50 - 120 · Connection size [mm]: 15
027B0940
Pilot valve, CVC-L, Pressure-operated pilot valve
Pressure range [bar] Pe: -0.66 - 7 · Kv value [m³/h]: 0.2 · Max. Working Pressure [bar]: 52
027B0941
Pilot valve, CVC-M, Pressure-operated pilot valve
Pressure range [bar] Pe: 4 - 28 · Kv value [m³/h]: 0.2 · Max. Working Pressure [bar]: 65
027B1021
Pilot valve, CVPE-M, Constant-pressure pilot valve
Pressure range [bar] Pe: 4 - 28 · Kv value [m³/h]: 0.4 · Max. Working Pressure [bar]: 65
027B0930
Pilot valve, CVPP-L, Diff.-pressure pilot valve
Pressure range [bar] Pe: -0.66 - 7 · Kv value [m³/h]: 0.4 · Max. Working Pressure [bar]: 65
027B0931
Pilot valve, CVPP-M, Diff.-pressure pilot valve
Pressure range [bar] Pe: 4 - 28 · Kv value [m³/h]: 0.4 · Max. Working Pressure [bar]: 65
027B112221
Pilot valve, EVM
Kv value [m³/h]: 0.28 · Max. Working Pressure [bar]: 65
027B112231
Pilot valve, EVM
Kv value [m³/h]: 0.28 · Max. Working Pressure [bar]: 65
027B112232
Pilot valve, EVM
Kv value [m³/h]: 0.28 · Max. Working Pressure [bar]: 65
027B1131
Pilot valve, EVM
Kv value [m³/h]: 0.118 · Max. Working Pressure [bar]: 65
027B1132
Pilot valve, EVM
Kv value [m³/h]: 0.118 · Max. Working Pressure [bar]: 65
032F3054
Pilot valve, EVM
Kv value [m³/h]: 0.28 · Max. Working Pressure [bar]: 65
032F8029
Pilot valve, EVM
Kv value [m³/h]: 0.25 · Max. Working Pressure [bar]: 65
027B1123
Pilot valve, EVMP
Pressure range [bar] Pe: 28 · Kv value [m³/h]: 0.251 · Max. Working Pressure [bar]: 28
027H7169
Spare part, ICLX 100, Tp cover
Product Type: Spare part · Used for product: ICLX 100 · Type designation: Tp cover
