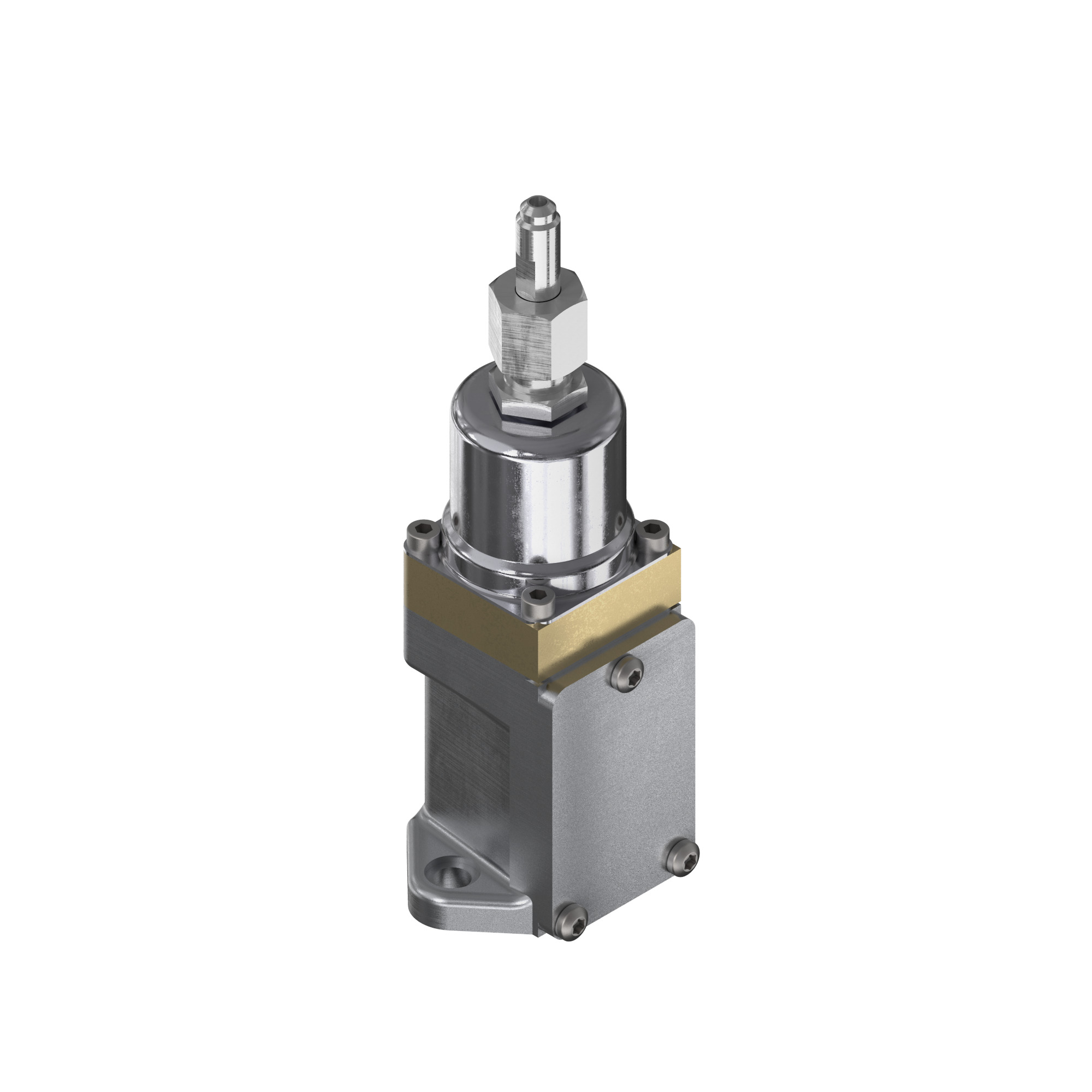

016D1018
Pilot for water reg. valve, WVS, 15 bar - 29 bar, 1/4 in - 6 mm
Control pressure range [bar]: 15 - 29 · Connection size (refrigerant): 1/4 in - 6 mm · Connection type (refrigerant): Flare/Weld nipple
All Water valves - thermostatically and pressure controlled
016D1017
Pilot for water reg. valve, WVS, 2.2 bar - 19 bar, 1/4 in - 6 mm
Control pressure range [bar]: 2.2 - 19 · Connection size (refrigerant): 1/4 in - 6 mm · Connection type (refrigerant): Flare/Weld nipple
016D1002
Pilot for water reg. valve, WVTS, 0 °C - 30 °C
Temperature range [°C]: 0 - 30 · Capillary tube length [mm]: 2000 · Packing format: Multi pack
016D1005
Pilot for water reg. valve, WVTS, 0 °C - 30 °C
Temperature range [°C]: 0 - 30 · Capillary tube length [mm]: 5000 · Packing format: Multi pack
016D1003
Pilot for water reg. valve, WVTS, 25 °C - 65 °C
Temperature range [°C]: 25 - 65 · Capillary tube length [mm]: 2000 · Packing format: Multi pack
016D1006
Pilot for water reg. valve, WVTS, 25 °C - 65 °C
Temperature range [°C]: 25 - 65 · Capillary tube length [mm]: 5000 · Packing format: Multi pack
016D1004
Pilot for water reg. valve, WVTS, 50 °C - 90 °C
Temperature range [°C]: 50 - 90 · Capillary tube length [mm]: 2000 · Packing format: Multi pack
016D1007
Pilot for water reg. valve, WVTS, 50 °C - 90 °C
Temperature range [°C]: 50 - 90 · Capillary tube length [mm]: 5000 · Packing format: Multi pack
003N1410
Pressure operated water valve, WVFX 10, 15 bar - 29 bar, 1.4 m³/h
Connection type: G · Connection size [in]: 3/8 · Kv value [m³/h]: 1.4
003N1100
Pressure operated water valve, WVFX 10, 3.5 bar - 16 bar, 1.4 m³/h
Connection type: G · Connection size [in]: 3/8 · Kv value [m³/h]: 1.4
003N1105
Pressure operated water valve, WVFX 10, 4 bar - 23 bar, 1.4 m³/h
Connection type: G · Connection size [in]: 3/8 · Kv value [m³/h]: 1.4
003N5006
Pressure operated water valve, WVFX 10, 4 bar - 23 bar, 1.4 m³/h
Connection type: NPT · Connection size [in]: 3/8-18 · Kv value [m³/h]: 1.4
003N2410
Pressure operated water valve, WVFX 15, 15 bar - 29 bar, 1.9 m³/h
Connection type: G · Connection size [in]: 1/2 · Kv value [m³/h]: 1.9

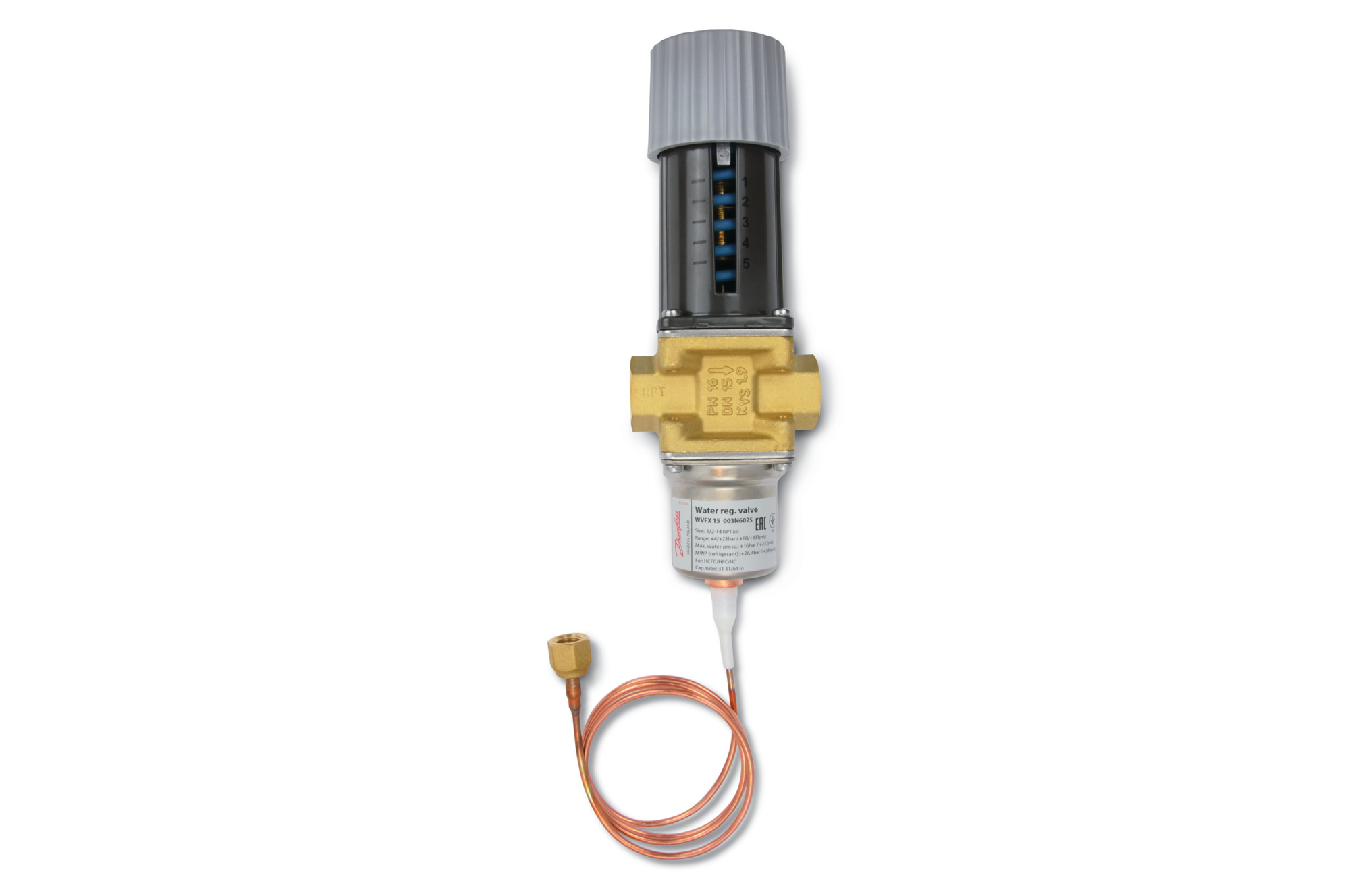

003N2100
Pressure operated water valve, WVFX 15, 3.5 bar - 16 bar, 1.9 m³/h
Connection type: G · Connection size [in]: 1/2 · Kv value [m³/h]: 1.9
003N2101
Pressure operated water valve, WVFX 15, 3.5 bar - 16 bar, 1.9 m³/h
Connection type: G · Connection size [in]: 1/2 · Kv value [m³/h]: 1.9
003N2104
Pressure operated water valve, WVFX 15, 4 bar - 23 bar, 1.9 m³/h
Connection type: G · Connection size [in]: 1/2 · Kv value [m³/h]: 1.9
003N2105
Pressure operated water valve, WVFX 15, 4 bar - 23 bar, 1.9 m³/h
Connection type: G · Connection size [in]: 1/2 · Kv value [m³/h]: 1.9
003N2205
Pressure operated water valve, WVFX 15, 4 bar - 23 bar, 1.9 m³/h
Connection type: G · Connection size [in]: 1/2 · Kv value [m³/h]: 1.9
003N6025
Pressure operated water valve, WVFX 15, 4 bar - 23 bar, 1.9 m³/h
Connection type: NPT · Connection size [in]: 1/2-14 · Kv value [m³/h]: 1.9

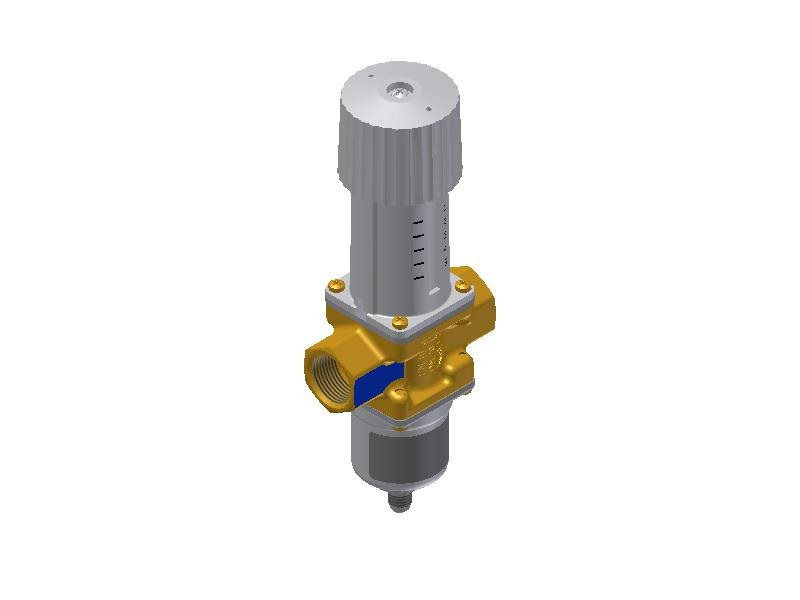

003N3410
Pressure operated water valve, WVFX 20, 15 bar - 29 bar, 3.4 m³/h
Connection type: G · Connection size [in]: 3/4 · Kv value [m³/h]: 3.4
003N2116
Pressure operated water valve, WVFX 20, 3.5 bar - 16 bar, 3.4 m³/h
Connection type: G · Connection size [in]: 3/4 · Kv value [m³/h]: 3.4
003N3100
Pressure operated water valve, WVFX 20, 3.5 bar - 16 bar, 3.4 m³/h
Connection type: G · Connection size [in]: 3/4 · Kv value [m³/h]: 3.4
003N3104
Pressure operated water valve, WVFX 20, 4 bar - 23 bar, 3.4 m³/h
Connection type: G · Connection size [in]: 3/4 · Kv value [m³/h]: 3.4
003N3105
Pressure operated water valve, WVFX 20, 4 bar - 23 bar, 3.4 m³/h
Connection type: G · Connection size [in]: 3/4 · Kv value [m³/h]: 3.4
