003G1021

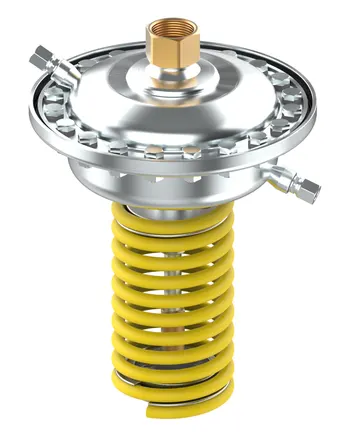

Danfoss 003G1021 - AFPA, PN 25, 0.15 bar - 1.2 bar, 250 cm², Silver
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Type | AFPA | |
| Product group | Pressure actuators for self-acting controllers | |
| Nominal pressure | PN 25 | |
| Diaphragm area | 250 cm² | |
| Colour code | Silver | |
| Differential pressure setting range | 0.15 bar - 1.2 bar | |
| Application | Differential pressure overflow controllers | |
| Action | Opens on rising pressure | |
| Housing material | Steel 1.0338, galvanised | |
| Diaphragm material | EPDM |
Technical data
| Product type | Pressure actuators for self-acting controllers | |
Documents
Operating guides, design guides, certificates and CAD drawings for 003G1021 are available on request. Ask for documents →
