Product details

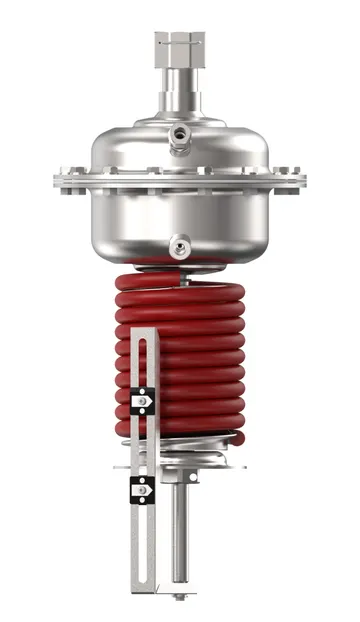

| Type | AFPA 2 | |
| Product group | Actuators - Pressure Flow | |
| Actuator diaphragm material | EPDM (Rolling, fibre enforced) | |
| Actuator size [cm²] | 80 cm² | |
| Application | District heating and cooling | |
| Body material | Steel, mat. No. 1.0345, zinc plated | |
| China RoHS compliance | Out of scope | |
| Contains batteries | No | |
| Description | Differential pressure relief actuator | |
| Diameter [mm] [Max] | 125 mm | |
| Diameter [mm] [Min] | 15 mm | |
| Differential pressure setting [bar] [Max] | 6 bar | |
| Differential pressure setting [bar] [Min] | 1.5 bar | |
| EU RoHS compliance | Out of scope | |
| Flow control | No | |
| Flow limitation | No | |
| Function | Diff. press. relief controller | |
| Media pH [Max] | 10 | |
| Media pH [Min] | 7 | |
| Media temperature [°C] [Max] | 150 °C | |
| Media temperature [°C] [Min] | 2 °C | |
| Medium alternative | Glycolic water up to 30% | |
| Mounting version | Bypass | |
| Operating pressure [bar] [Max] | 16 bar | |
| Permissible media | District heating/cooling circulation water | |
| Pressure class | PN 16 | |
| Pressure controller | Differential pressure relief controller | |
| Pressure nominal [bar] | 16 bar | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Setting Type | Adjustable | |
| Spring colour | red |
Technical data
| Product type | Actuators - Pressure Flow | |
| Net weight | 10 kg | |
| Gross weight | 12.371 kg | |
| Packed volume | 52.7 L | |
| EAN | 5715162292587 | |
