003L5043

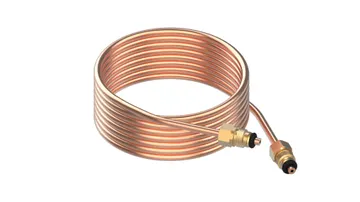

Danfoss 003L5043 - Impulse tubes, 3 mm, G 1/16, 2500 mm, COPPER||COPPER
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | Impulse tubes | |
| Product group | Accessories - SAC | |
| Connection size | G 1/16 | |
| Contains batteries | No | |
| Description | Impulse tube set 1,6 G1/16, fi3x2,5m | |
| Diameter [mm] | 3 mm | |
| For product type | AVPL | |
| Length [mm] | 2500 mm | |
| Material | COPPER | |
| Packing format | Multi pack | |
| Permissible media | District heating/cooling circulation water | |
| Pressure nominal [bar] | 16 bar | |
| Quantity per packing format | 10 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Suitable for valve of diameter [mm] [Max] | 15 mm | |
| Suitable for valve of diameter [mm] [Min] | 15 mm | |
| Suitable for valve of pressure [bar] [Max] | 16 bar | |
| Suitable for valve of pressure [bar] [Min] | 16 bar |
Technical data
| Product type | Accessories - SAC | |
| Net weight | 0.144 kg | |
| Gross weight | 0.144 kg | |
| Packed volume | 0.5 L | |
| EAN | 5710104028149 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 003L5043 are available on request. Ask for documents →
