003N6032

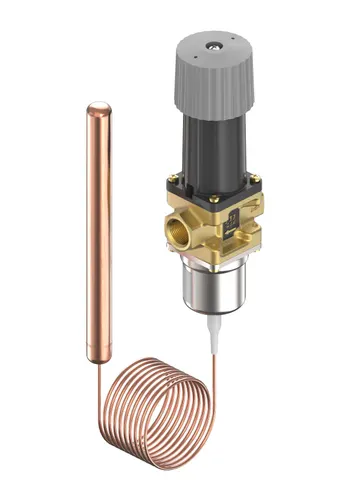

Danfoss 003N6032 - AVTB, PN 16, DN 20, 1.9 m³/h, 0 °C - 30 °C, 2 m, Internal thread
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
Product details
| Type | AVTB | |
| Product group | Temperature controllers | |
| Ambient temperature [°C] [max] | 70 °C | |
| Ambient temperature [°C] [min] | 0 °C | |
| Approval standard | ETA VA 1.54/18952 | |
| Capillary tube length [m] | 2 m | |
| Cavitation factor | 0.4 | |
| China RoHS compliance | Out of scope | |
| Cone /seat sealing material | NBR / Brass W. No 2.0402 | |
| Connection size | NPT 1/2 | |
| Connection types | Internal thread | |
| Contains batteries | No | |
| Description | AVTB 15 Thermostatic valve 0-30#C | |
| Diameter [mm] | 15 mm | |
| Differential pressure range [bar] [Max] | 10 bar | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow characteristic | Linear | |
| Flow control | No | |
| Function | Temp. controller | |
| Function VSP - P | No | |
| Function VSP - Q | No | |
| Function VSP - T | No | |
| Impulse tube material | Copper mat. No 2.0090 | |
| Kvs values [m³/h] | 1.9 m³/h | |
| Media pH [Max] | 10 | |
| Media pH [Min] | 7 | |
| Media temperature [°C] [Max] | 130 °C | |
| Media temperature [°C] [Min] | 2 °C | |
| Media temperature at sensor [°C] [Max] | 55 °C | |
| Medium alternative | Glycolic water up to 30% | |
| Number of ports | 2 | |
| Packing format | Multi pack | |
| Permissible media | District heating/cooling circulation water | |
| PN alternative VSP | 10 | |
| Pressure class | PN 16 | |
| Pressure nominal [bar] | 16 bar | |
| Quantity per packing format | 10 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Rection time close [sec] | 15 " | |
| Rection time open [sec] | 3 " | |
| Return limiter function | No | |
| Sensor connection | M22x1 / R3/4 ext thread acc. DIN 2999 | |
| Temperature control | Yes | |
| Temperature sensor diameter [mm] | 18 mm | |
| Temperature sensor length [mm] | 210 mm | |
| Temperature sensor material | Copper mat. No 2.0090 | |
| Temperature setting range [°C] [Max] | 30 °C | |
| Temperature setting range [°C] [Min] | 0 °C | |
| Transport temperature [°C] [Max] | 50 °C | |
| Transport temperature [°C] [Min] | -20 °C | |
| Valve body material | Brass CuZn40Pb2 W. no 2.0402 | |
| Valve cone material | NBR rubber | |
| Valve seat material | Cr Ni steel W.no 1.4301 | |
| Valve size | DN 20 |
Technical data
| Product type | Temperature controllers | |
| Net weight | 1.625 kg | |
| Gross weight | 1.71 kg | |
| Packed volume | 4.1 L | |
| EAN | 5715255156307 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 003N6032 are available on request. Ask for documents →
