009L7062

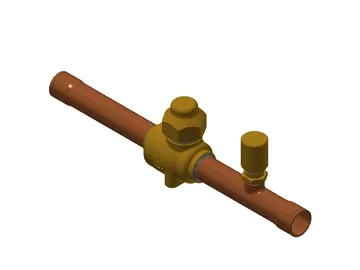

Danfoss 009L7062 - Shut-off ball valve, GBC 12s
- Inlet connection type: Solder, ODF
- Outlet connection type: Solder, ODF
- Inlet size [mm]: 12
- Outlet size [mm]: 12
Product details
| Type | GBC 12s | |
| Product group | Shut-off and regulating valves | |
| Product Name Description | Shut-off ball valve | |
| Access port | Yes | |
| Approval | C UL US LISTED; EAC; UA | |
| Body material | Brass | |
| CE mark | Yes | |
| China RoHS compliance | Yes with exemptions | |
| Connection Code | (3001:X:12) | |
| Connection material | Copper | |
| Contains batteries | No | |
| Cv value [gal/min] | 15.2 gal/min | |
| Direction | Straightway | |
| Equipment | Cap w. wire seal | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow direction | Bi-flow | |
| Flow direction indicator | Embossed 2-way arrow | |
| Fluid Group | 1; 2 | |
| Ignition source assessment | Yes | |
| Inlet connection type | Solder, ODF | |
| Inlet size [mm] | 12 | |
| Kv value [m³/h] | 13.17 m³/h | |
| Max. media temp. Oil free [°C] | 80 °C | |
| Max. Working Pressure [bar] | 45 bar | |
| Max. Working Pressure [psig] | 650 psig | |
| Oil free refrigerants | R1234ze(E); R134a; R513A; R515B; R516A | |
| Outlet connection type | Solder, ODF | |
| Outlet size [mm] | 12 | |
| Packing format | Multi pack | |
| Panel mounting option | M4 × 0.7 (2 PC) | |
| Parts included | Schrader valve | |
| PED category | Art. 4, par. 3 | |
| Product accessories | BM/GBC valve accessories | |
| Quantity per packing format | 30 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R1234yf; R1234ze(E); R134a; R22/R407C; R290; R32; R404A/R507A; R407A; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R515B; R516A; R600; R600a; R1270 | |
| SCIP dossier product name | GBC V2 with AP | |
| Serviceable | BM/GBC valve spare parts | |
| Temperature range [°C] [max] | 100 °C | |
| Temperature range [°C] [min] | -40 °C | |
| Temperature range [°F] [max] | 212 °F | |
| Temperature range [°F] [min] | -40 °F | |
| UL approved refrigerants | R1234yf; R1234ze(E); R134a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R516A; R600; R600a | |
| UL mark | Yes |
Technical data
| Product type | Shut-off and regulating valves | |
| Net weight | 0.164 kg | |
| Gross weight | 0.222 kg | |
| Packed volume | 0.7 L | |
| EAN | 5702428007856 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 009L7062 are available on request. Ask for documents →
