013G3210

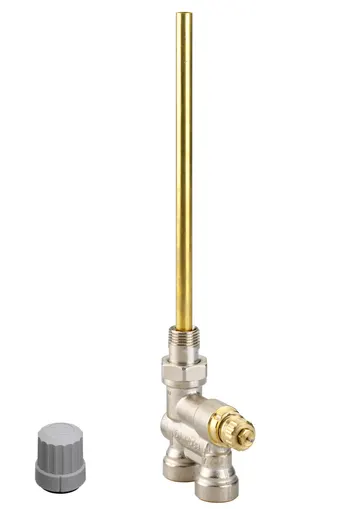

Danfoss 013G3210 - Lance Valves, RA 15/6TB, Floor connection, Rp 1/2
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | RA 15/6TB | |
| Product group | Lance Valves | |
| Application | 2-pipe system | |
| CE mark | No | |
| China RoHS compliance | Out of scope | |
| Connection size in | Rp 1/2 | |
| Connection size out | R 1/2 | |
| Contains batteries | No | |
| Description | RA 15/6TB special lance valve for radiator underneath connection | |
| Design | Floor connection | |
| Differential pressure range [bar] [Max] | 0.6 bar | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(a); 6(c) | |
| Flow temperature [°C] [Max] | 120 °C | |
| Kvs values [m³/h] | 1 m³/h | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| SCIP dossier product name | RA 15/6TB | |
| Test pressure [bar] | 16 bar | |
| UL mark | No | |
| Working pressure [bar] [Max] | 10 bar |
Technical data
| Product type | Lance Valves | |
| Net weight | 0.542 kg | |
| Gross weight | 0.542 kg | |
| Packed volume | 1 L | |
| EAN | 5702420020860 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 013G3210 are available on request. Ask for documents →
