014-0183

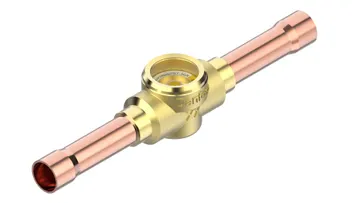

Danfoss 014-0183 - SGN 12s, Sight glass, Solder, ODF, Solder, ODF
- Inlet connection type: Solder, ODF
- Outlet connection type: Solder, ODF
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Body material | Brass | |
| China RoHS compliance | Yes exceed limitations | |
| Connection material | Copper | |
| Contain batteries | No | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Green: max moist con@25 °C | R134a: 30 ppm; R22: 30 ppm; R404A: 20 ppm; R407A: 29 ppm; R407C: 30 ppm; R407F: 30 ppm; R448A: 28 ppm; R449A: 29 ppm; R450A: 23 ppm; R452A: 20 ppm; R507A: 15 ppm; R513A: 22 ppm | |
| Green: max moist con@43 °C | R134a: 45 ppm; R22: 50 ppm; R404A: 25 ppm; R407A: 48 ppm; R407C: 60 ppm; R407F: 60 ppm; R448A: 70 ppm; R449A: 53 ppm; R450A: 46 ppm; R452A: 30 ppm; R507A: 30 ppm; R513A: 22 ppm | |
| Identical product | 014-0117 | |
| Inlet connection type | Solder, ODF | |
| Inlet size [in] | 1/2 in | |
| Lubricants compatibility | Oilfree applications | |
| Max. Working Pressure [bar] | 35 bar | |
| Max. Working Pressure [psig] | 500 psig | |
| Moisture indicator | N indicator | |
| Oil free refrigerants | R134a; R513A | |
| Outlet connection type | Solder, ODF | |
| Outlet size [in] | 1/2 in | |
| Packing format | Multi pack | |
| Product accessories | No | |
| Product group | Sight glasses | |
| Product Name Description | Sight glass | |
| Quantity per packing format | 28 pc | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1); Cobalt dichloride (CAS no. 7646-79-9) | |
| Refrigerants | R1233zd(E); R1234yf; R1234ze(E); R134a; R22; R404A; R407A; R407C; R407F; R448A; R449A; R450A; R452A; R507A; R513A | |
| Serviceable | No | |
| Temperature range [°C] [max] | 80 °C | |
| Temperature range [°C] [min] | -50 °C | |
| Temperature range [°F] [max] | 175 °F | |
| Temperature range [°F] [min] | -58 °F | |
| Type | SGN 12s | |
| UK RoHS compliance | Out of scope | |
| Yellow: min moist con@25 °C | R134a: 100 ppm; R22: 120 ppm; R404A: 70 ppm; R407A: 115 ppm; R407C: 140 ppm; R407F: 168 ppm; R448A: 110 ppm; R449A: 105 ppm; R450A: 148 ppm; R452A: 79 ppm; R507A: 60 ppm; R513A: 75 ppm | |
| Yellow: min moist con@43 °C | R134a: 170 ppm; R22: 200 ppm; R404A: 100 ppm; R407A: 192 ppm; R407C: 225 ppm; R407F: 240 ppm; R448A: 227 ppm; R449A: 200 ppm; R450A: 245 ppm; R452A: 143 ppm; R507A: 110 ppm; R513A: 123 ppm |
Technical data
| Product type | Sight glasses | |
| Net weight | 0.144 kg | |
| Gross weight | 0.166 kg | |
| Packed volume | 0.2 L | |
| EAN | 5702422104216 | |
