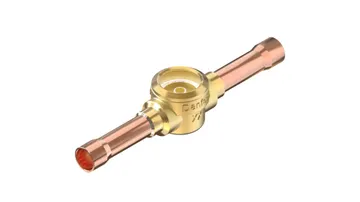

Danfoss 014L0086 - SGP 12s X, Sight glass, Solder, ODF, Solder, ODF

Product details

Approval		C UL US LISTED; EAC
Approval file name		REF. LIQUID INDICATOR 76H4
Body material		Brass
China RoHS compliance		Yes exceed limitations
Connection material		Copper
Contain batteries		No
EU RoHS compliance		Yes with exemptions
EU RoHS exemption clause		6(c)
Ignition source assessment		Yes
Inlet connection type		Solder, ODF
Inlet size [in]		1/2 in
Lubricants compatibility		Oilfree applications
Max. Working Pressure [bar]		52 bar
Max. Working Pressure [psig]		754 psig
Moisture indicator		No indicator
Oil free refrigerants		R1234ze(E); R134a; R513A; R515B
Outlet connection type		Solder, ODF
Outlet size [in]		1/2 in
Packing format		Multi pack
Product accessories		No
Product group		Sight glasses
Product Name Description		Sight glass
Quantity per packing format		28 pc
REACH Candidate List substances		Lead (CAS no. 7439-92-1)
Refrigerants		R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R450A; R452A; R452B; R454B; R454C; R455A; R463A; R507A; R513A; R515B; R600; R600a; R744
Serviceable		No
Temperature range [°C] [max]		80 °C
Temperature range [°C] [min]		-50 °C
Temperature range [°F] [max]		175 °F
Temperature range [°F] [min]		-58 °F
Type		SGP 12s X
UK RoHS compliance		Out of scope
UL approval file name		REF. LIQUID INDICATOR 76H4
UL approved refrigerants		R1233zd(E); R134a; R22; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R450A; R452A; R463A; R507A; R513A; R515B; R744
UL evaluated		Yes
