Product details
| Type | Danfoss Aveo® Sensors | |
| Product group | Radiator Sensors | |
| CE mark | No | |
| China RoHS compliance | Out of scope | |
| Colour | White RAL 9016 | |
| Connection type sensor | RA-click | |
| Connection type to valve | RA | |
| Contains batteries | No | |
| Contents of set | Sensor | |

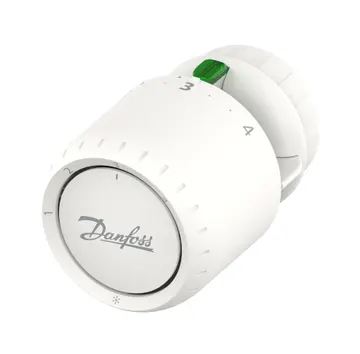

| Description | Danfoss Aveo™ thermostatic sensor for Danfoss RA valves. Tactile feedback for improved user experience. | |
| EN 215 Certified | Yes | |
| EPD available | Yes | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Frost protection | Yes | |
| Limiter pins | Yes | |
| Product height [mm] | 56 mm | |
| Product length [mm] | 84 mm | |
| Product width [mm] | 56 mm | |
| REACH Candidate List substances | No | |
| Response time [m] | 10 min | |
| Sensor design | Danfoss Aveo® | |
| Sensor media | Gas | |
| Sensor setting temperature [°C] [Max] | 23 °C | |
| Sensor setting temperature [°C] [Min] | 7 °C | |
| Sensor setting temperature [°F] [Max] | 73 °F | |
| Sensor setting temperature [°F] [Min] | 45 °F | |
| Sensor type | Built-in sensor | |
| Sensor version | Standard, Temp. limited | |
| Shut-off function | No | |
| Temperature limitation | Yes | |
| UL mark | No | |
| Zero-blocking | No |
Technical data
| Product type | Radiator Sensors | |
| Net weight | 0.156 kg | |
| Gross weight | 0.168 kg | |
| Packed volume | 0.3 L | |
| EAN | 5702424626228 | |
Documents
Operating guides, design guides, certificates and CAD drawings for 015G4123 are available on request. Ask for documents →
