015G5423

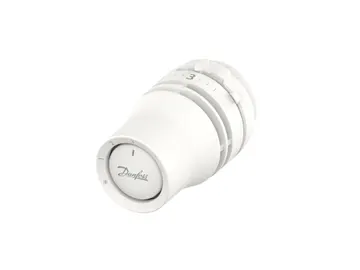

Danfoss 015G5423 - Danfoss Redia® Sensors, Standard, Temp. limited, Liquid
Similar products
- Genuine Danfoss products
- Danfoss manufacturer warranty
- Reply within one business day
- Worldwide delivery
Product details
| Type | Danfoss Redia® Sensors | |
| Product group | Radiator Sensors | |
| CE mark | No | |
| China RoHS compliance | Out of scope | |
| Colour | White RAL 9016 | |
| Connection type sensor | RA-click | |
| Connection type to valve | RA | |
| Contains batteries | No | |
| Contents of set | Sensor | |
| Description | Danfoss Redia™ thermostatic sensor for for Danfoss RA valves. Limited temperature range. Theft protection included. | |
| EN 215 Certified | Yes | |
| EPD available | Yes | |
| EU RoHS compliance | Yes | |
| EU RoHS exemption clause | No | |
| Frost protection | Yes | |
| Limiter pins | Yes | |
| REACH Candidate List substances | No | |
| Response time [m] | 18 min | |
| Sensor design | Danfoss Redia® | |
| Sensor media | Liquid | |
| Sensor setting temperature [°C] [Max] | 23 °C | |
| Sensor setting temperature [°C] [Min] | 8 °C | |
| Sensor type | Built-in sensor | |
| Sensor version | Standard, Temp. limited | |
| Shut-off function | No | |
| Temperature limitation | Yes | |
| UL mark | No | |
| Zero-blocking | No |
Technical data
| Product type | Radiator Sensors | |
| Net weight | 0.145 kg | |
| Gross weight | 0.159 kg | |
| Packed volume | 0.4 L | |
| EAN | 5702424625788 | |
