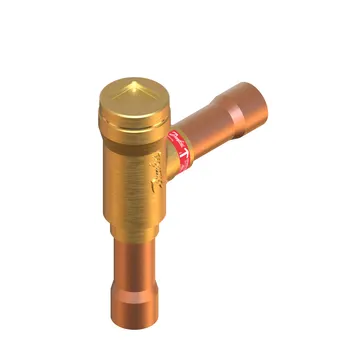

Danfoss 020-3020 - Check valve, NRV 22s E
- Inlet connection type: Solder, ODF
- Inlet size [mm]: 22
- Outlet connection type: Solder, ODF
- Outlet size [mm]: 22
- Direction: Angleway
- Packing format: Multi pack
Product details
| Type | NRV 22s E | |
| Product group | Check valves | |
| Product Name Description | Check valve | |
| Approval | EAC; UA | |
| Body material | Brass | |
| China RoHS compliance | Yes with exemptions | |
| Connection Code | (3001:X:22); (3002:X:22) | |
| Connection material | Copper | |
| Contains batteries | No | |
| Cv value [gal/min] | 9.83 gal/min | |
| Design | Piston | |
| Direction | Angleway | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Flow direction | Single-flow | |
| Flow direction indicator | Embossed 1-way arrow | |
| Fluid Group | 1; 2 | |
| Ignition source assessment | Yes | |
| Inlet connection type | Solder, ODF | |
| Inlet size [in] | 7/8 in | |
| Inlet size [mm] | 22 | |
| Kv value [m³/h] | 8.5 m³/h | |
| Lubricants compatibility | Oilfree applications | |
| Max. Working Pressure [bar] | 49 bar | |
| Max. Working Pressure [psig] | 710 psig | |
| Min. Pressure drop [bar] | 0.04 bar | |
| Min. Pressure drop [psi] | 0.6 psi | |
| Oil free refrigerants | R516A | |
| Outlet connection type | Solder, ODF | |
| Outlet size [in] | 7/8 in | |
| Outlet size [mm] | 22 | |
| Packing format | Multi pack | |
| PED category | Art. 4, par. 3 | |
| Quantity per packing format | 18 pc | |
| Rated cap cond, Hot gas [IMP] | tcond=86 °F; tdisc=176 °F; tevap=14 °F; thotgas=140 °F; tsub=9 °F | |
| Rated cap cond, Hot gas [SI] | tsub=5K; tcond=30 °C; tdisc=80 °C; tevap=-10 °C; thotgas=60 °C | |
| Rated cap cond, Liq. cap [IMP] | tcond=86 °F; tevap=14 °F; tsub=9 °F | |
| Rated cap cond, Liq. cap [SI] | tsub=5K; tcond=30 °C; tevap=-10 °C | |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) | |
| Refrigerants | R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R170; R22/R407C; R290; R32; R404A/R507A; R407A; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R513A; R515B; R516A; R600; R600a | |
| SCIP dossier product name | NRV V1 22s -35s | |
| Temperature range [°C] [max] | 155 °C | |
| Temperature range [°C] [min] | -50 °C | |
| Temperature range [°F] [max] | 311 °F | |
| Temperature range [°F] [min] | -58 °F | |
| UL approval file name | REFRIGERANT VALVE 53R0 | |
| UL approved refrigerants | R1233zd(E); R1234yf; R1234ze(E); R1270; R134a; R170; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R507A; R513A; R515B; R516A; R600; R600a |
Technical data
| Product type | Check valves | |
| Net weight | 0.508 kg | |
| Gross weight | 0.564 kg | |
| Packed volume | 1.1 L | |
| EAN | 5702428666763 | |
