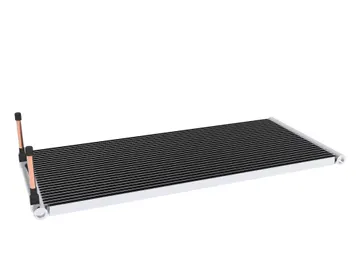

Danfoss 021U0509 - Micro Channel heat exchanger, MCHE D2200-C, Multi pack
- Rated capacity R410A [kW]: 3.50
- Design pressure [MPa]: 4.5
- Temperature range [°C]: -40 - 121
Type:
D2200-C
D2200-C
Product details
| Application area | Refrigeration; Air Conditioning | |
| Approval | EAC; PED; UL | |
| Approval file name | SA33862; CE-0062-PED-H-DMC 001-20-CHN-A; EAEU KZ 7100841.13.12.01130 | |
| Body material | Aluminium | |
| China RoHS compliance | Yes | |
| Coil depth [in] | 0.63 in | |
| Coil depth [mm] | 16 mm | |
| Coil height [in] | 9.45 in | |
| Coil height [mm] | 240 mm | |
| Coil Length [in] | 21.73 in | |
| Coil Length [mm] | 552 mm | |
| Connection material | Copper | |
| Contain batteries | No | |
| Design pressure [MPa] | 4.5 MPa | |
| Design pressure [psig] | 653 psig | |
| EU RoHS compliance | Yes with exemptions | |
| EU RoHS exemption clause | 6(c) | |
| Fin pitch [mm] | 1.1 mm | |
| Flow direction | Single-flow | |
| Fluid Group | 1; 2 | |
| Identical product | 021U0342 | |
| Inlet connection type | Solder, ODF | |
| Inlet size [in] | 5/16 in | |
| Inlet size [mm] | 7.94 mm | |
| Internal volume [cm3] | 190 cm³ | |
| Internal volume [in3] | 11.6 in³ | |
| Max. Working Pressure [bar] | 45 bar | |
| Max. Working Pressure [psig] | 653 psig | |
| Mounting bar material | Aluminium | |
| Number of tubes [pcs] | 24 | |
| Operation Ambient Temp [°C] [max] | 72 °C | |
| Operation Ambient Temp [°C] [min] | -40 °C | |
| Operation Ambient Temp [°F] [max] | 162 °F | |
| Operation Ambient Temp [°F] [min] | -40 °F | |
| Outlet connection type | Solder, ODF | |
| Outlet size [in] | 5/16 in | |
| Outlet size [mm] | 7.94 mm | |
| Packing format | Multi pack | |
| Part Number | DM0020 | |
| PED category | II | |
| Product accessories | No | |
| Product group | Heat exchangers | |
| Product Name Description | Micro Channel heat exchanger | |
| Quantity per packing format | 16 pc | |
| Rated cap. conditions [IMP] | Air speed=492 ft/min; Ambient temp.=95 °F; Delta t=21.6 °F; Subcooling=9 °F | |
| Rated cap. conditions [SI] | Air speed=2.5 m/s; Ambient temp.=35 °C; Delta t=12 °C; Subcooling=5 °C | |
| Rated capacity R410A [kW] | 3.5 kW | |
| Rated capacity R410A [TR] | 0.98 TR | |
| REACH Candidate List substances | No | |
| Refrigerants | R290; R134a; R32; R410A; R452B; R454B; R1234yf; R404A; R407C; R448A; R449A; R452A; R513A; R1234ze(E); R22; R444B; R449B; R454A; R454C; R455A; R513B; R514A; R515A; R515B; R600a | |
| Serviceable | No | |
| Temperature range [°C] [max] | 121 °C | |
| Temperature range [°C] [min] | -40 °C | |
| Temperature range [°F] [max] | 250 °F | |
| Temperature range [°F] [min] | -40 °F | |
| Type | MCHE D2200-C | |
| Type designation | D2200-C | |
| U.S. EPA label | For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only. | |
| UK RoHS compliance | Yes | |
| UL evaluated | Yes |
Technical data
| Product type | Heat exchangers | |
| Net weight | 1.011 kg | |
| Gross weight | 2.07 kg | |
| Packed volume | 18.9 L | |
| EAN | 5702424291167 | |
